Pedalboard WirelESS System

NUX presents Breakfast-8

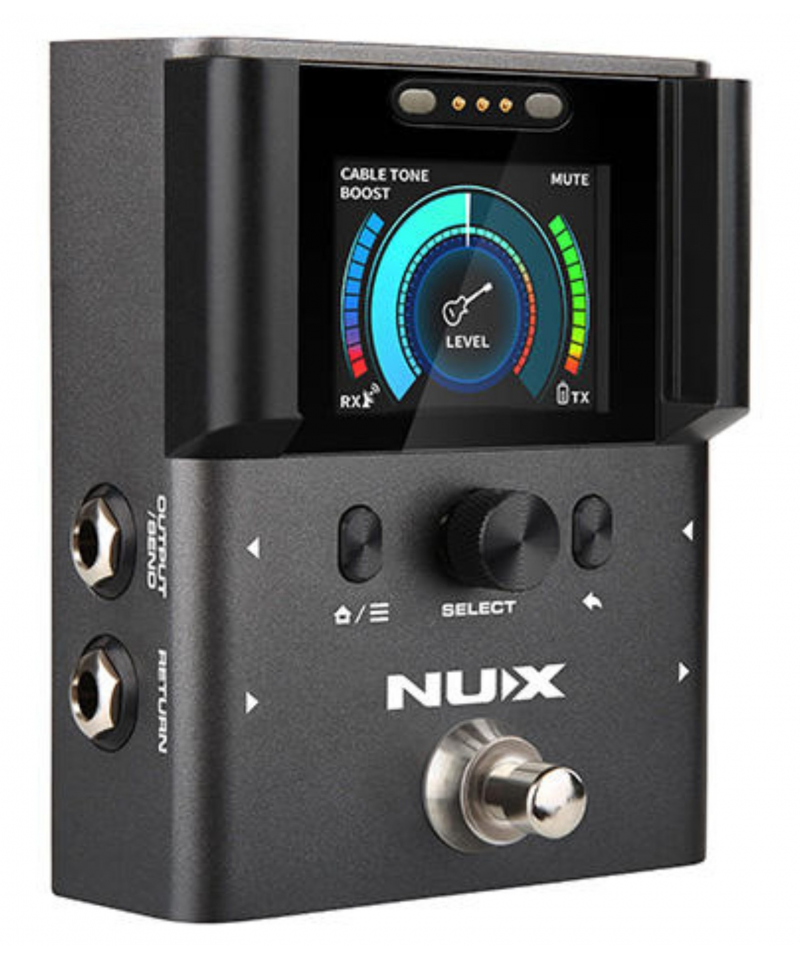

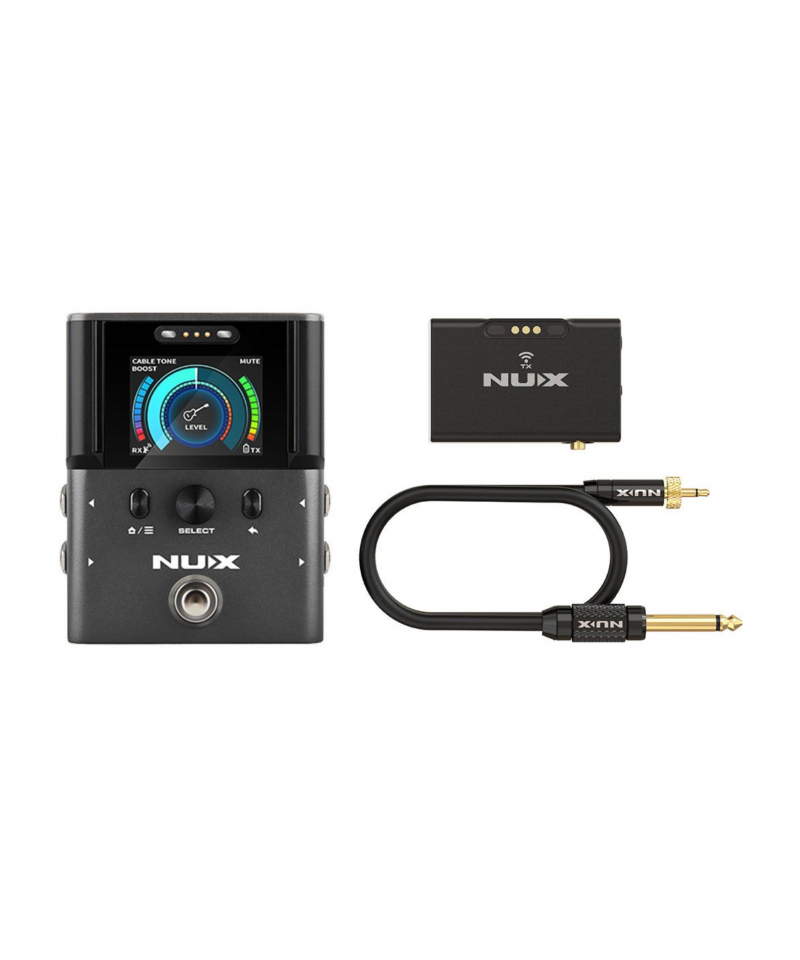

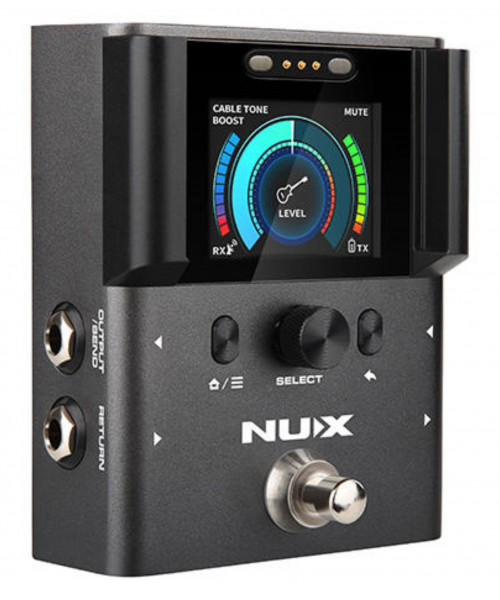

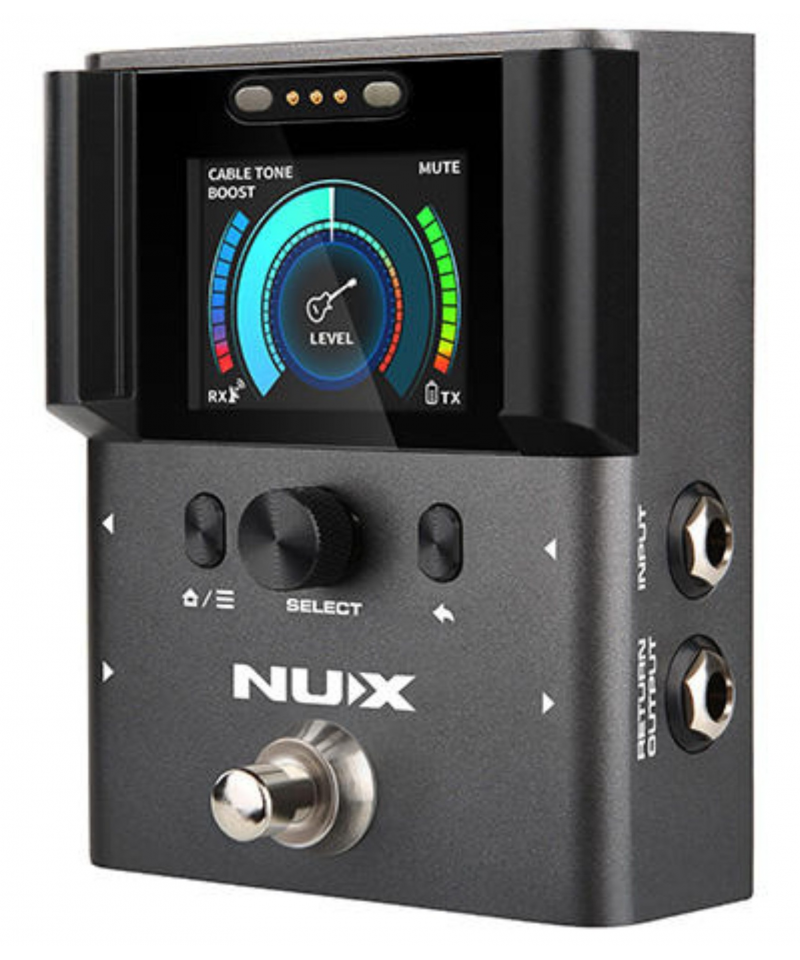

NUX Breakfast-8 A professional wireless system with automatic setting, 2.4 GHz transmission frequency without interference and high quality 24-bit audio transmission / 48 kHz adapting to all types of electric guitar, electric guitar-Acoustics, bass and various tools with electronic pickups. It provides the signal on the frequency range of 2.4 GHz, a global transmission standard without interference that can be used anywhere without signal interruptions. E Thanks to the 24-bit / 48 kHz audio quality, no unwanted degradation of sound will never occur. Lots of advanced features like Send / Return and the integrated tuner make the B-8 A powerful and flexible professional system raising the digital wireless transmission bar.

• Suitable for guitar, low and various tools
• Automatic set up and facilitated frequency catch
• Quality transmission 2.4 GHz high quality
• Long distance and low latency
• Modalit Stable for interference elimination

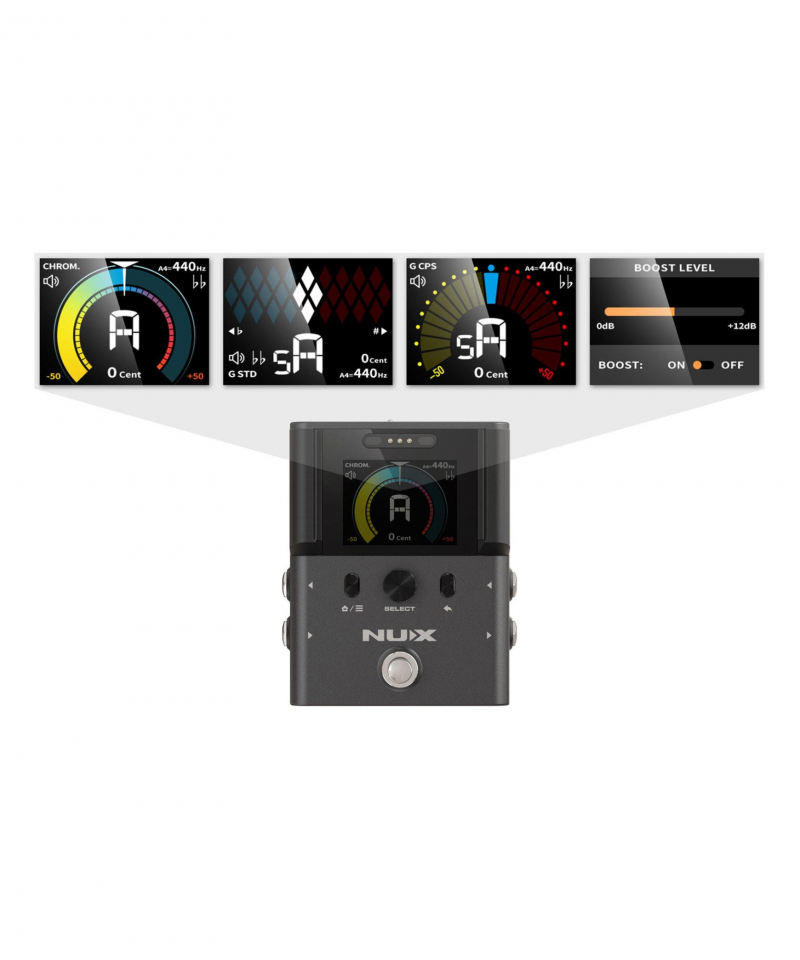

• Integrated booster and tuner
• Long life battery
• Cable function for a hot and natural stamp
• SEND / RETURN to manage your effects routing

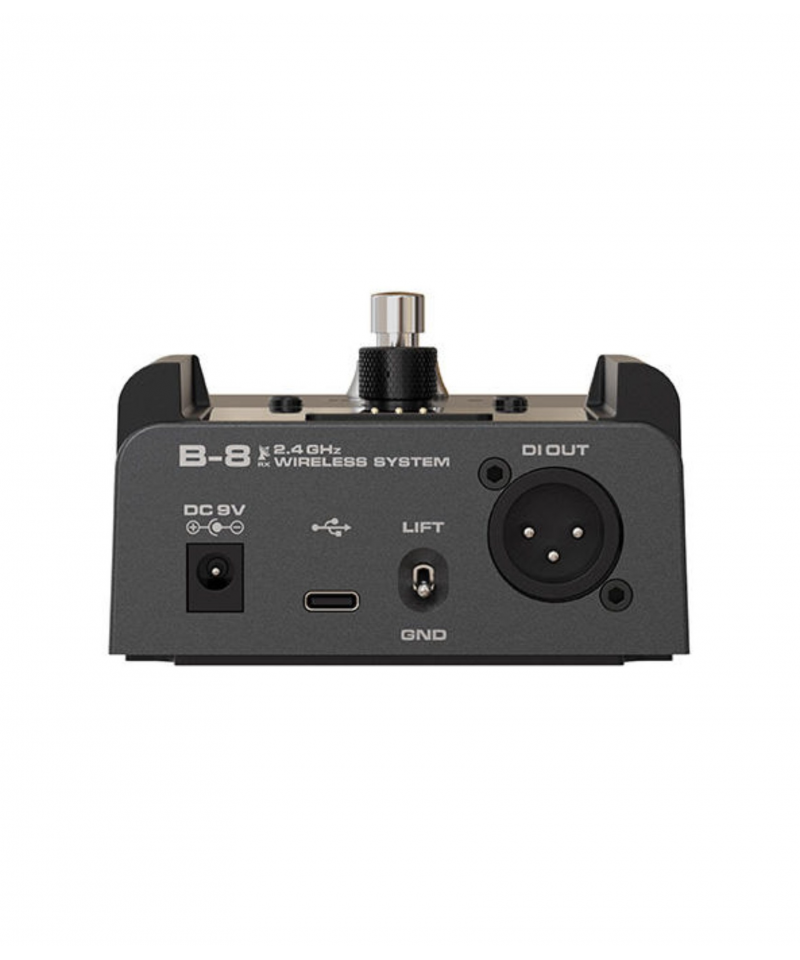

• Direct output to the mixer
• Quality Audio: 24bit / 48khz
• Frequency response: 20Hz-20khz
• Latency: 2.5ms (setting the best performance) - 8.7ms (security mode)
• Entrance impedance: 1 Mo
• Maximum input level: 1 KHZ ALL '1% THD +6.2 DBV (5.78 VP-p)
• THD + no: 0.01% 1KHz, typical
• Dynamic range: 122 dB, weighted a (output / send)
• Output level adjustment range: mute -64db ~ 0db

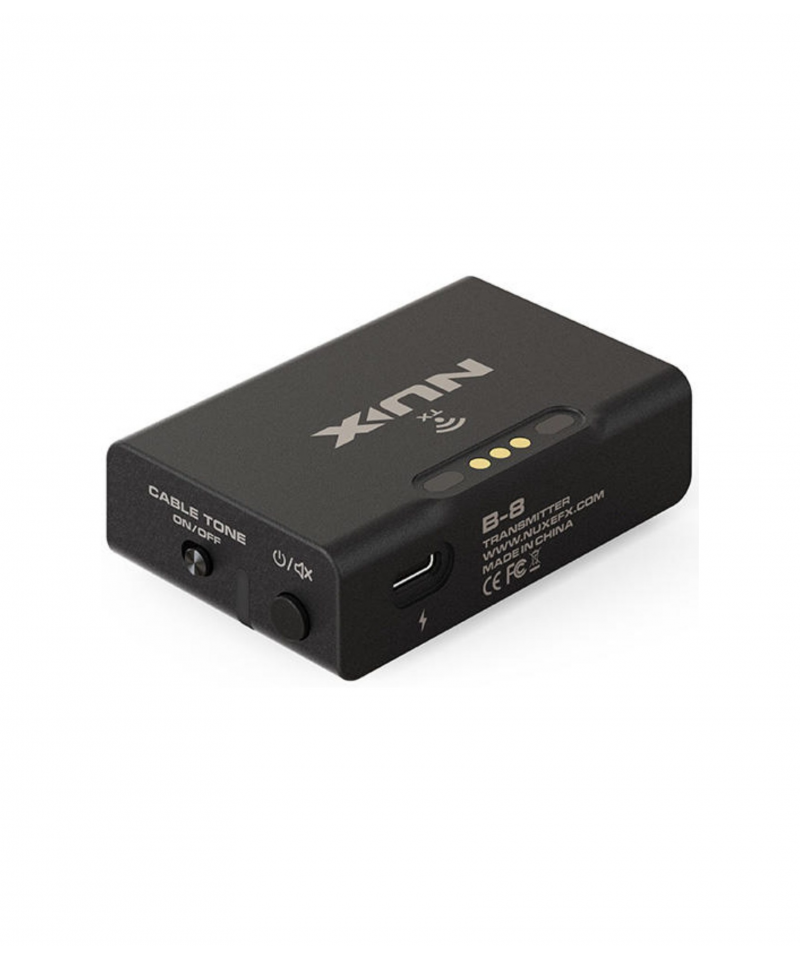

• Built-in battery capacity:-3.7V / 500 mAh rechargeable polymers (transmitter)
• TX battery life: up to 6.5 hours
• Power requirements: 7V to 12V DC, 500mA min, negative point feeders (receiver)
• Ray: Up to 50 m
• TX size: 72.5 mm * 49.3 mm * 23 mm (L * L * h)
• TX weight: 63 g
• RX size: 122 * 95 * 60mm (L * L * h)
• Weight RX: 500 g
