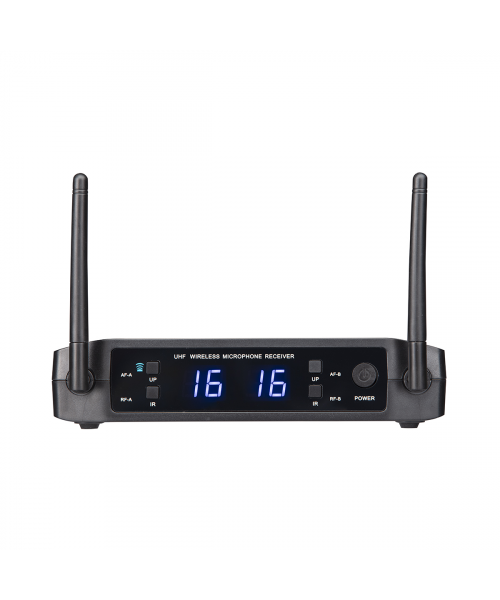

Wf-U216 A double radio microphone uhf system with 16 channels each. Its key features are laffidability, the quality audio and soil use. E Designed mainly for all those professionals who need a work tool ready to completely and never leave you on foot. Despite its appearance, in fact, the WF-U216 A technology concentration can integrate a high quality microphone preamplification stage, the DSP-based audio processing, the PLL synthesis stage, and other functions into a chip. Compared to analogue systems, greatly improves the stability and reliability of the FM modulation section, of the stages in AF and audio, offering voltical and instrumental performance performance. WF-U216 also equipped with the IR synchronization system for complaining between receiver and transmitter quickly. Both the transmitter by hand and the pocket that can work with alkaline or rechargeable AA batteries. The quality of the Cardioid Cardioid capsule (condenser) of a professional level.

• Band: UHF 520-550mhz
• Frequency stabilization: Automatic calibration
• Dynamic interval: > 90db
• Total harmonic distortion: <0.4%
• Frequency response: 40hz-15KHz 3DB
• Audio output level: 400mv balanced; 400mv unbalanced
• Packaging Size System (LXPXA): 380 x 285 x 65 mm
• Gross weight packaging system: 1.2 kg
• Receiver power supply: DC 12V / 1000mA
• Receiver consumption: <4w
• Signal report / noise receiver: > 95db
• Reception sensitivity: -95dbuv
• De-Emphasis receipt: 75us
• Receiver size (LXPXA): 210 x 155 x 43 mm
• Receiver antennas height: 115 mm
• Net weight receiver: 0.345 kg
• Transmission power: 10mw (Max)
• Type of modulation: Fm
• Maximum transmission deviation: 26khz
• Transmission spurious issue: > 40db
• Power supply transmitters: 2x batt. by 1.5v alkaline type AA or 2x batt. Rechargeable 1.2v AA
• Transmitter batteries duration: About 5 hours

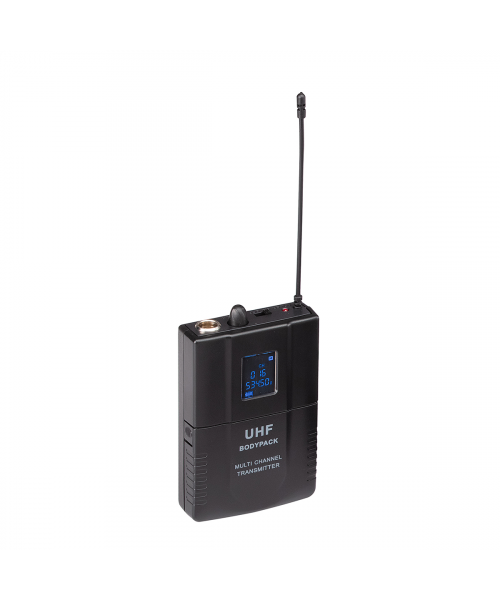

• Transm dimensions. Pocket (LXPXA): 62 x 30 x 103 mm
• Pocket Transmitter Antenna (L / PXA): 3 x 10 mm
• Pocket weight net weight: 0.133 kg (batteries included)
