Wireless microphone system

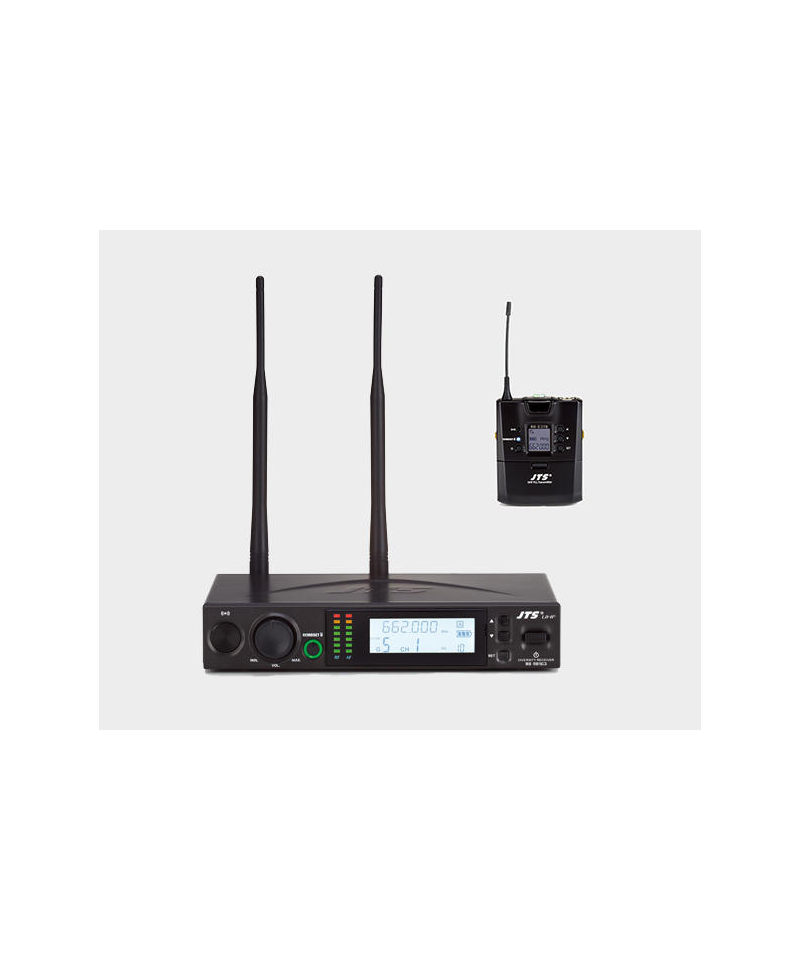

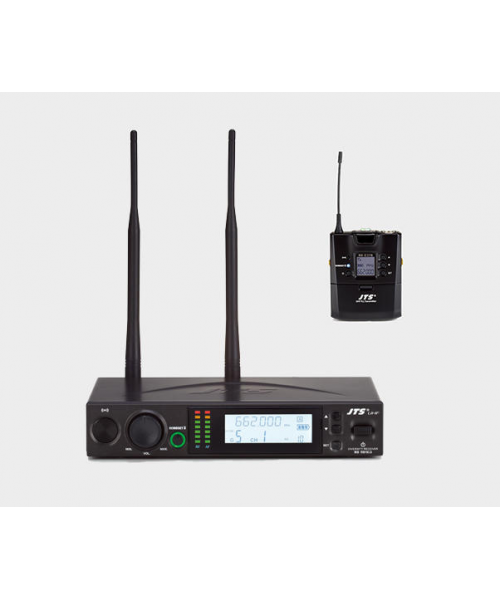

JTS presents UK-901g3 / UK-G3TH wireless system

UHF PLL system with 3rd generation True diversity, with Remoset function for synchronism. 36MHZ Band 690-726mhz

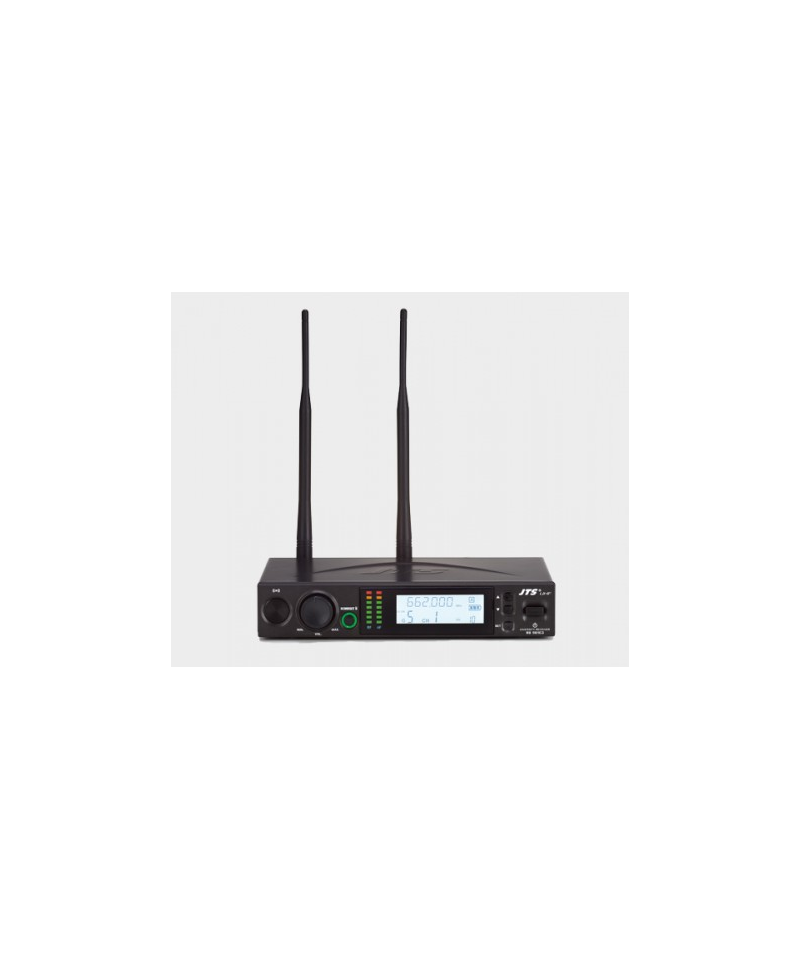

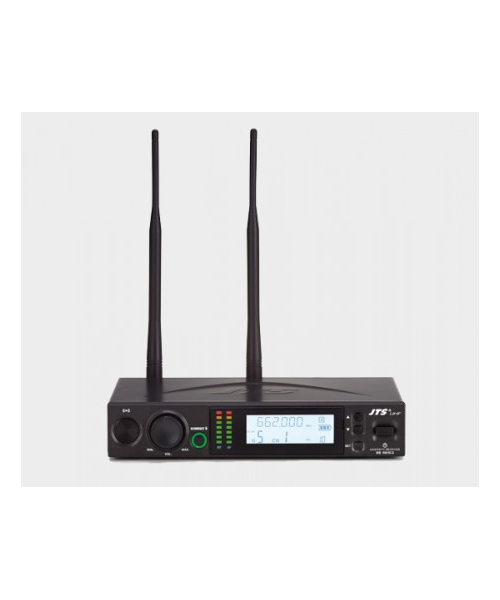

Diversity RU receiver-901g3

• Frequency Preparation: PLL
• Synthetic control carrier frequency range: UHF 606.5 - 642 MHz
• Frequency setting: Remoset u
• Ultrasonic reception mode: True Diversity
• S / N report:> 105db
• T.hd: <0.6% @ 1
• KHZ Sensitivity: -95 DBM, S / N> 80DB
• Cmrr:> 80 dB
• Audio frequency response: 50Hz ~ 18khz ± 2db
• Antenna: BNC (F)
• Antenna amplifier power: DC12 ~ 15V / 100mA
• LCD display contained: Group, channel, frequency, battery status, a / b antenna, meter AF (LED bar), RF meter (LED bar)
• Commands: Switching on / off, group, channel, frequency, audio level, lock, volume, output pane, frequency scan (ON / OFF)
• Audio output level: Ref.: ± 22.5khz dev @ 1khz tonoψ6.3, telephone jack: -10DBV Jack XLR: -4DBV (LINE), - 24DBV (MIC)
• Output impedance AF: 600ω
• Squelch: Pilot tone e
• Silenced audio exclusion connector: X1 XLR socket, unbalanced φ6,3mm Phone Jack X1
• Power: DC12 ~ 15V / 500MA
• Dimensions (m / m): 212.3 mm (L) * 38.3 mm (H) * 144 mm (D)
• Notes: The actual specifications of the product may vary depending on the region.

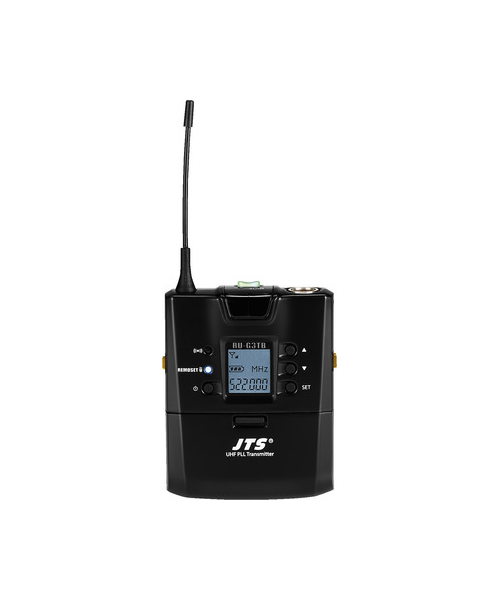

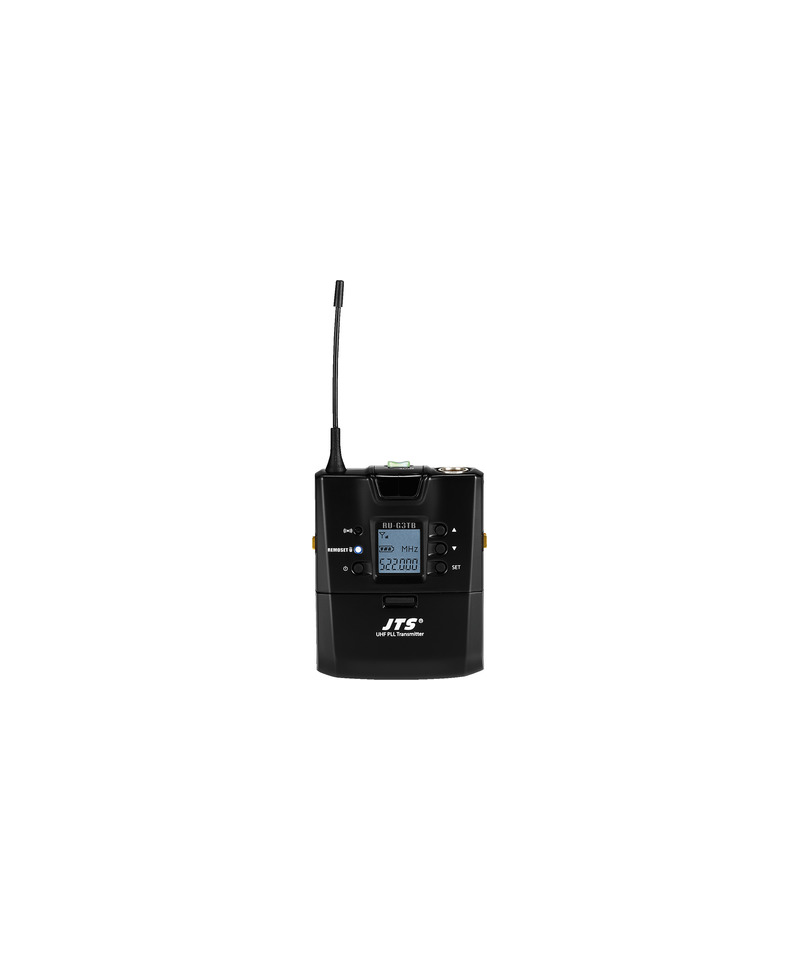

UK-G3TH portable microphone

• Frequency Preparation: PLL
• Synthetic control carrier frequency range: UHF 606.5 - 638 MHz
• Frequency setting: Remoset u
• Ultrasonic RF outputs: Low / High
• Stability: <± 10KHz @ FC
• Frequency deviation: ± 48KHz
• Spurie emissions: <-50dbc
• Display: LCD + LED
• Controls: Switching on / off, Mute On / Off, Group, Channel, Frequency, Gain Adjustment, Automatic Switching Adjustment, Lock Mode-on
• Battery: UM3, AA X2
• Load slot: Yup
• Size: 50 (W) x 253 (h) x 35.5 (D)
