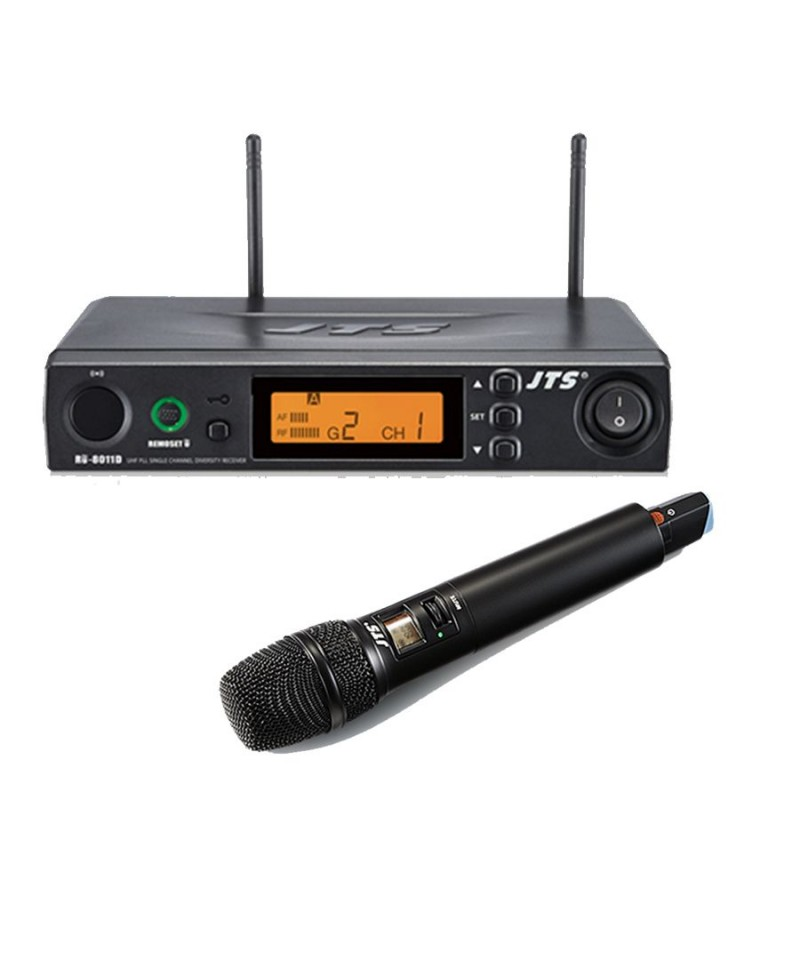

JTS RA 8011D RU 850 TH Uhfbasing handheld radio microphone on positive experience and US model success-8001, La Ru-8011D has been designed with 2nd generation wireless technology JTS.
To cope with radio spectrum, the system provides more compatible channels within the limited bandwidth.
The Remoset sends channel data scanned to the transmitter by simply pressing a button. To satisfy the need for a low noise system, the latter have been reduced to an extremely low level.
100 meters of flow should satisfy most applications by applications. .

Technical specifications

UK-8011d
PLL frequency synthesized control
Carrier frequency range 470 ~ 960 MHz
Remoset u setting frequency
Diversity antenna reception mode
36MHz bandwidth
S / N Ratio> 105 dB (A)
T.H.D <0.6%@1khz
Sensitivity -95DBM, S / N> 80DB
Rejection report> 80 dB
Frequency response 60Hz ~ 15KHz ± 2 dB
Antenna fixed type antenna
Booster Power Antenna None
LCD display
Show content Group, Channel, A / B antenna, Mute Display, Meter AF, RF meter, frequency scanning,
Audio Level, Volume
Power control / shutdown controls, Group, Channel, Mute Display, Scan frequency (ON / OFF), Key Lock,
Volume, output attenuation (XLR)
Audio output level ref / ± 22.5khz dev @ 1khz tone
6.3 Phone Jack / -10dbv
XLR Jack / -4DBV (Line) -24DBV (MIC)
600o impedance audio output
Squelch Pilot Tone & Noise Mute
Balanced XLR output connector 1 independent and one Ø6.3mm unbalanced.
Power supply DC12 ~ 15V / 300MA
Dimensions (mm) 212.3 mm (W) * 38.3 mm (H) * 144 mm (D)
UK-850th
Frequency Preparation PLL Synthetic control
Carrier frequency range 470 ~ 960MHz
Remoset U Frequency setting (Receive)
RF OUTPUS LOW / HIGH
Stability <± 10kHz @ FC
Frequency deviation ± 48khz
Spurie emissions <-50dbc
Mute function, automatic shutdown function, regular sensitivity, low battery
LED display
Ignition checks, mute
UM3 battery, X2 AA
