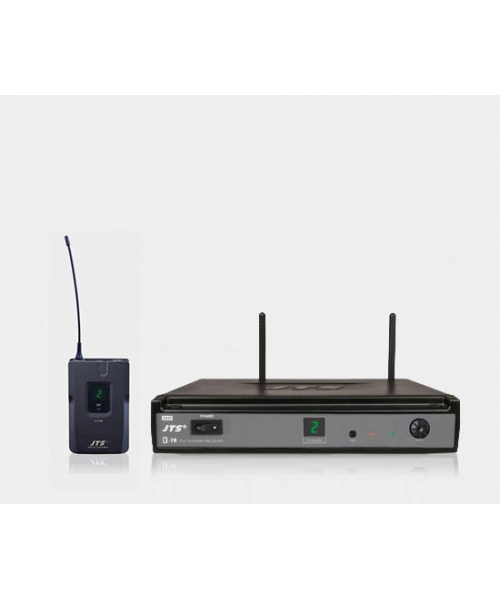

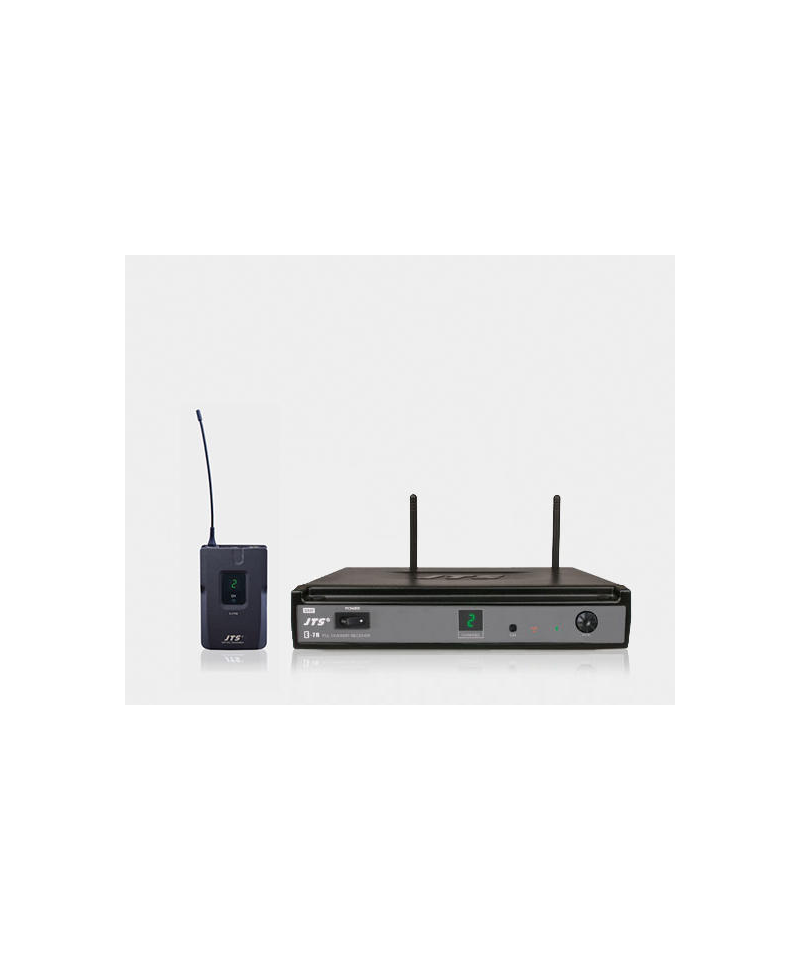

JTS E7-E7TBD wireless system
UHF PLL radio microphone composed of:

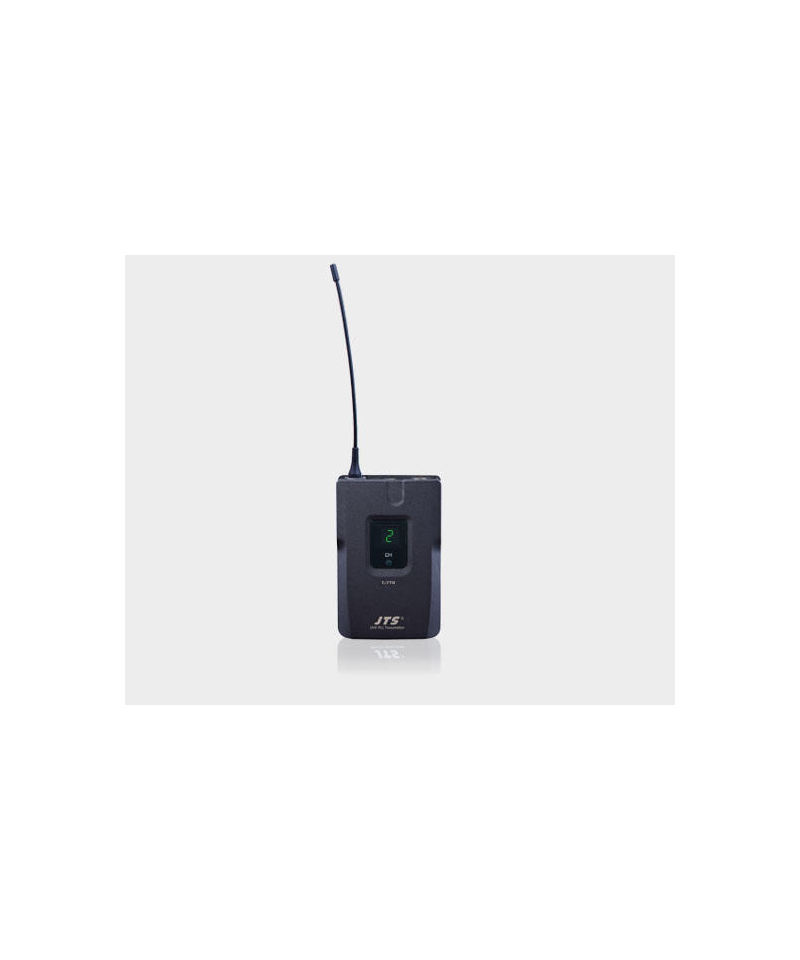

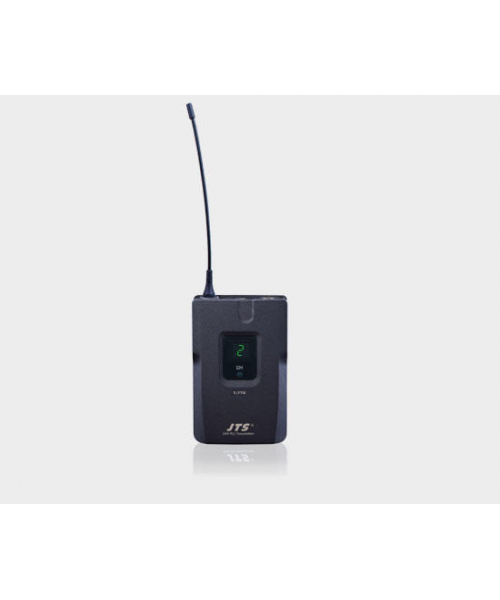

- E-7TBD BODYPACK TRANSMITTER

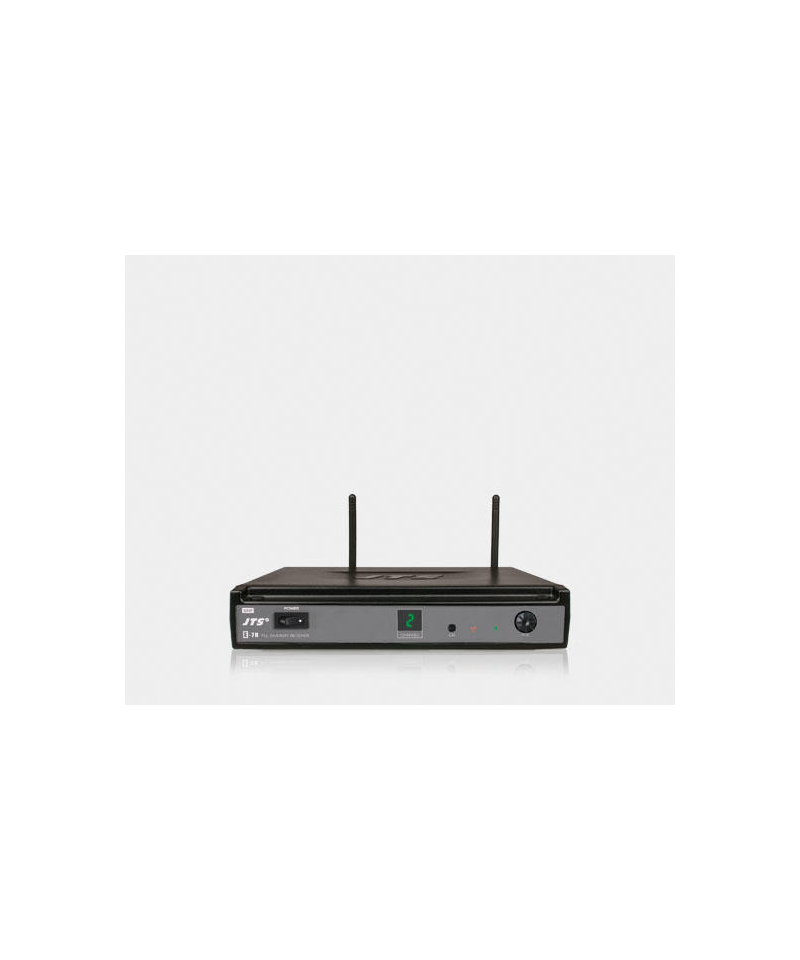

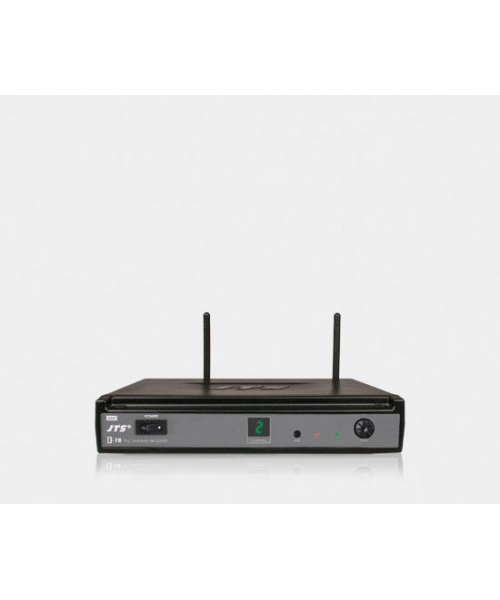

- E-7r receiver with 16 selectable channels
Features E-7r
| Frequency preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470 ~ 960 MHz |
| S / N Ratio | > 100db |
| T.H.D. | <0.6%@1khz |
| Display Contents | Channel, RF /AF Status |
| Controls | Power On / Off, Channel Selecting, Audio Level |
| Audio Output Level | -15db |
| AF Output Impedance | 600ω |
| Squelch | Pilot Tone & Noise Mute |
| Operation Voltage |
12v 150mA |
| Output Connector | 1 Or6.3mm Balanced Phone Jack |
| Dimension (mm) | 210mm (W) * 40mm (h) * 170mm (D) |
Features E-7tbd
| Frequency preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470 ~ 960 MHz |
| Stabilityfrequency | <± 10khz |
| Deviation: | ± 48KHz (Peak) |
| Display Contents | Channel, Battery Status, Power On / Off, Mute |
| Controls | Power On / Off, Channel, Mute |
| Input Connector | 4p mini XLR |
| Spurious Emissions | <-50 DBC |
| Audio Frequency Response | 40hz ~ 18khz |
| Battery | UM3, AA Alkaline X2 |
