SOUNDSATION Presents Radiomic. True diversity UHF double SOUNDSATION Wf-U2600HH 2 TX hand 630-660mhz

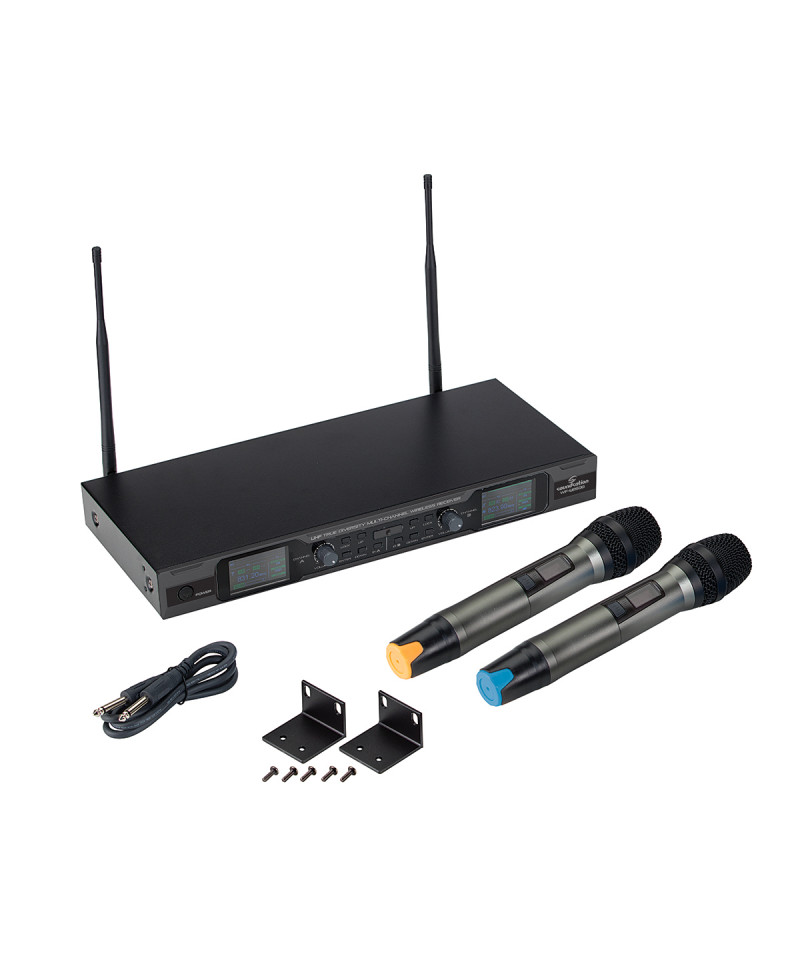

WF-U2600 A UHF True Diversity Double Microphone System with 240 Channels for each microphone and a simple and intuitive user interface. "True diversity" means that the reception system equipped with two antennas, two reception circuits and a device capable of continuously choose the strongest and interference signal. WF-U2600 built with cutting-edge technology that allows you to integrate many of the main functions - Like the amplification section, digital signal processing, PLL frequency synthesis (Phase-Locked loop) and more - In a few chips. It allows us to offer highly professional performance and products at low cost. WF-U2600 also equipped with the automatic frequency search system and IR synchronization system between receiver and transmitter. Furthermore, Digital Pilot technology not only allows you to monitor the receive level and battery charge, but also to manage up to 200 sets of multiple systems without problems. Finally, the receiver is supplied with a mounting kit in a single 19 "standard rack. The kit consisting of two L-shaped adapters and four screws to mount them on both sides of the receiver. The WF system-U2600HH composed of two hand transmitters with professional cardioid dynamic capsule and a Dual UHF True Diversity receiver.

Features

• UHF True Diversity technology to maximize interference
• 240 channels for each microphone
• Infrared synchronization system for quick setting
• UHF 630 band-660mhz
• Easy and intuitive user interface
• LCD display on transmitters; TFT color display on the receiver
• Digital Pilot technology that allows you to use up to 200 systems simultaneously without interference
• Level of the transmission signal and battery charge directly on the receiver
• Automatic microphone mute system after a few seconds if not used
• Ideal distance 80m (without direct obstacles)
• Ice cream microphones with professional cardioid dynamic capsules
• Rack mounting kit 10 "included

Technical specifications

• Operating band: UHF, 630-660mhz
• Frequency stabilization: <30ppm
• E073e
• Total harmonic distortion: <0.5%
• Frequency response: 40Hz-15KHz 3DB
• Output audio level: 400mv balanced; 400mv unbalanced
• Packaging dimensions (LXAXP): 473 x 75 x 408 mm
• Packaging weight: 3.4 Kgalizer receiver: DC 13.5V / 1.5a
• Consumption: 5W
• Signal / noise ratio:> 95DB
• Reception sensitivity: 5DBUV
• De-Emphasis: 50US
• Receiver size (LXPXA): 420 x 50 x 220 mm (antennas not included)
• Antenna: 255 mm (not bent)
• Receiver weight: 2.02 kg
• Transmission power: 10MW (max)
• Type of modulation: Fm
