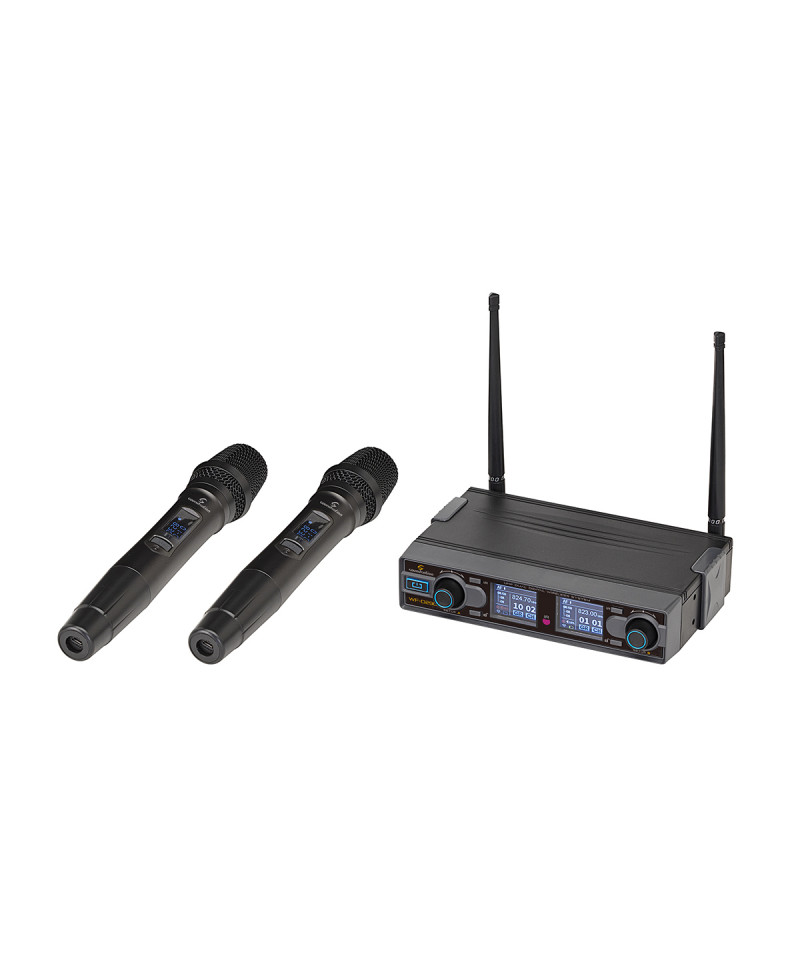

SOUNDSATION Wf-D290HH 2 TX by hand 823-832MHz Radiomic. Digital Digital UHF
SOUNDSATION presentsWf-D290hh
The system SOUNDSATION Wf-D290 adopts a new digital transmission technology and hardware encryption of audio data that allow a higher audio quality (compared to UHF analogue systems), very low latency (better than 2.4 GHz systems) and maximum safety thanks to hardware encryption. The 16bit digital ID technology avoids interference even on the same frequency, and allows the continuous exchange of data between transmitter and receiver, such as the battery level, transmission power, Squelch operation, etc. The system equipped with automatic scanning and display of the frequency spectrum, which allow the user to select the less disturbed frequencies in any environment in which it operates. Equipped with 90 frequencies for each receiver, divided into 10 groups, each of which contains 9 channels. Very simple and intuitive user interface, thanks to the TFT color display of the receiver and the simplicity of its setting menus. The hand transmitter and the body-Pack, on the other hand, are equipped with an LCD display with automatic shutdown function, to save the battery. The handheld microphone also equipped with a rechargeable lithium battery that can be recharged via the USB port on the back of the receiver. Finally, there are two optional kits for rack mounting of 1 or 2 receivers, respectively, 1 or 2 standard 19 "unit rack.
The system SOUNDSATION Wf-D290 adopts a new digital transmission technology and hardware encryption of audio data that allow a higher audio quality (compared to UHF analogue systems), very low latency (better than 2.4 GHz systems) and maximum safety thanks to hardware encryption. The 16bit digital ID technology avoids interference even on the same frequency, and allows the continuous exchange of data between transmitter and receiver, such as the battery level, transmission power, Squelch operation, etc. The system equipped with automatic scanning and display of the frequency spectrum, which allow the user to select the less disturbed frequencies in any environment in which it operates. Equipped with 90 frequencies for each receiver, divided into 10 groups, each of which contains 9 channels. Very simple and intuitive user interface, thanks to the TFT color display of the receiver and the simplicity of its setting menus. The hand transmitter and the body-Pack, on the other hand, are equipped with an LCD display with automatic shutdown function, to save the battery. The handheld microphone also equipped with a rechargeable lithium battery that can be recharged via the USB port on the back of the receiver. Finally, there are two optional kits for rack mounting of 1 or 2 receivers, respectively, 1 or 2 standard 19 "unit rack.
- UHF Band 823-832 MHz
- Digital audio transmission technology
- Digital Pilot 16 bit technology
- Signal level monitoring AF and the charge of the batteries directly on the receiver
- Double antenna with diversity technology
- No interference also on the same frequency
- Ultra audio latency-reduced
- Sampling frequency: 48khz
- 30Hz frequency response-20khz

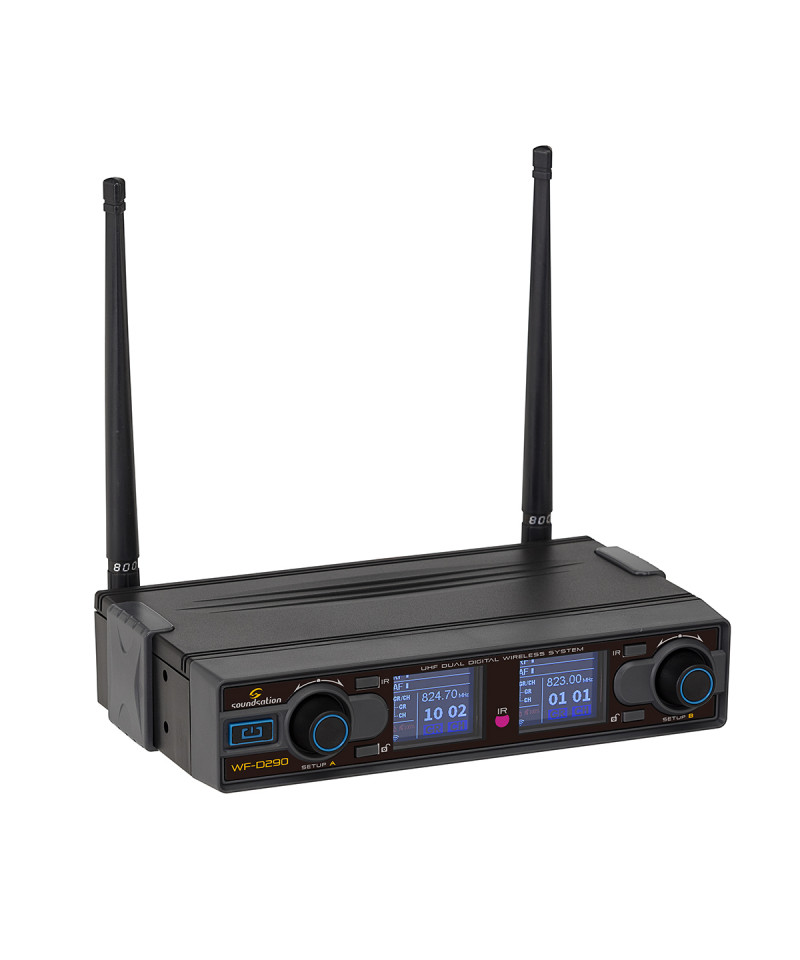

- Colorful TFT display and menu settings on the receiver
- Automatic frequency scan and spectrum display
- Ideal distance 50m (without obstacles)
- TX synchronization-RX with infrared for a quick system setting

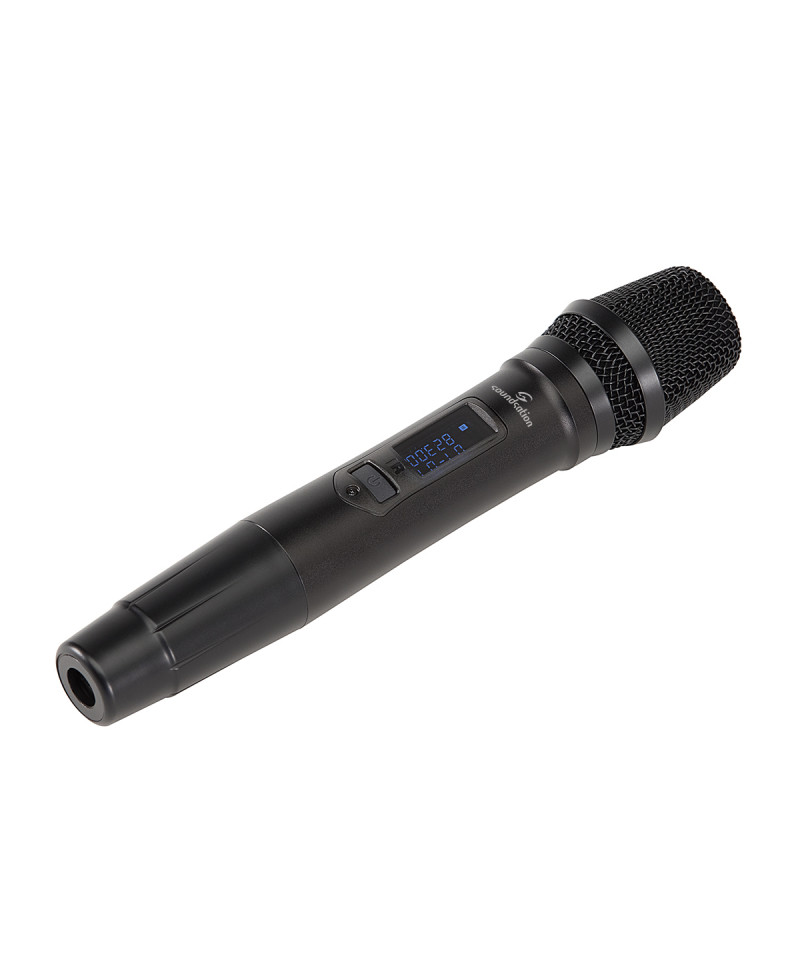

- Professional handheld microphone with cardioid dynamic capsule
- Frequency band: UHF 823-832 MHz
- Bandwidth: 9 MHz
- Groups / Channels Preset: 10 groups, 9 frequencies in each group
- Dynamic interval: > 98 dB
- Total harmonic distortion: <0.1%
- Frequency response: 30 Hz-20 kHz / 2 dB
- Audio output level: 400mv balanced; Bottle 400mVdimensions Packaging (LXAXP): 436x104x324 mm
- Gross weight packaging: 2.5 kg
- Receiver power supply: DC 12V / 1000 MA
- Power absorption receiver: 5 W
- Signal / noise ratio: > 98 dB
- Receiver input sensitivity: -95 DBM
- Transmission delay: <3 ms
- Receiver size (LXAXP): 210x45x118 mm (antenna not included)
- Receiver antenna: 255 mm (not folded)
- Net weight receiver: 0.4 kg
