Professional double radio microphone

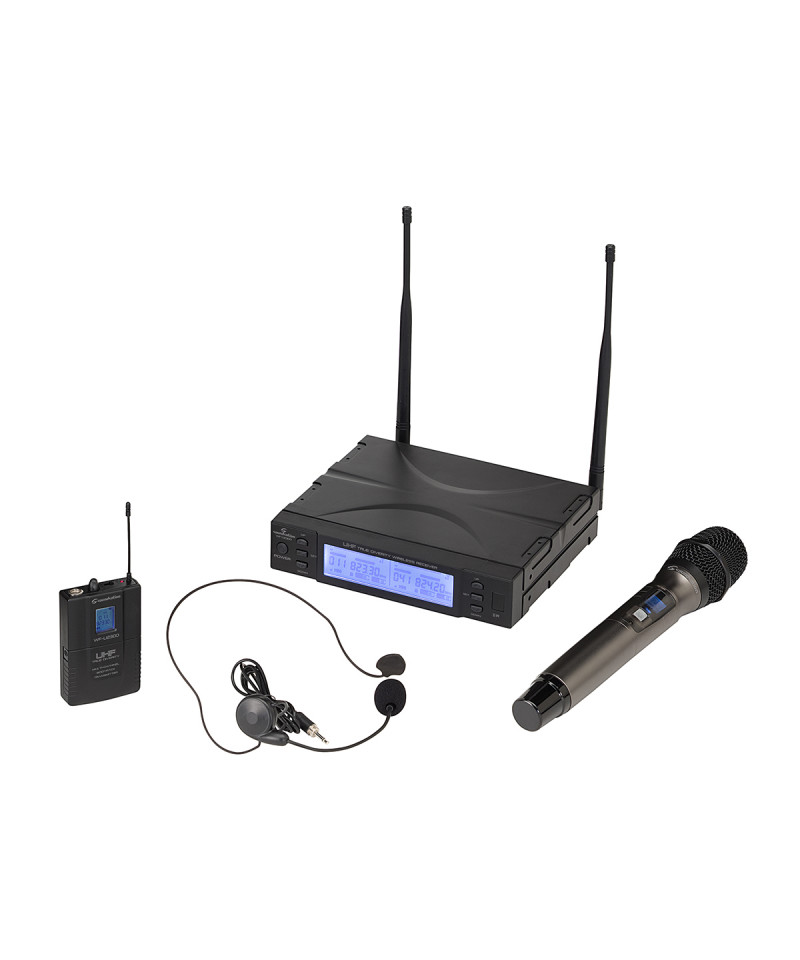

SOUNDSATION Presents WF-U2300hp 1 Tx hand, 1 TASC + Headset 823-832mhz

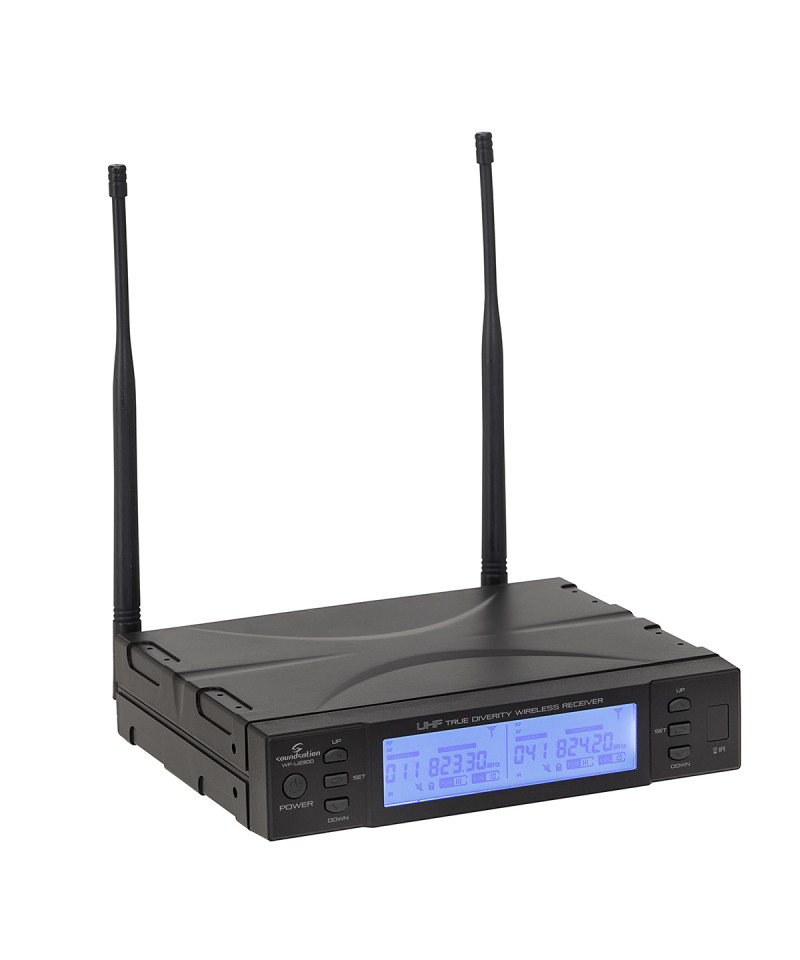

WF-U2300 is a Dual Professional Professional UHF True Diversity Radiomicrophone with 300 Channels for each microphone and a simple and intuitive user interface. True DiviSty means that the reception system is equipped with two antennas, two reception circuits and a device that can constantly choose the strongest and interference-free signal for both audio channels. This system is carried out with highly high-level technology that allows to integrate many of the main functions such as the amplification section, the digital signal processing, the synthesis of the PLL frequency (Phase-Locked loop) and more in a single chip. This allows to offer highly professional performances in products that are definitely within reach of everyone. WF-U2300 is also equipped with an automatic frequency and IR system search system for channel synchronization between receiver and transmitter quickly. Furthermore, the Digital Pilot technology allows not only to monitor the level of reception and transmitters' batteries, but above all to operate with multiple systems without problems. Finally, two optional kits are available for mounting one or two receivers respectively on 1 or 2 standard 19 rack units.

• UHF True Diversity technology to limit interference to maximum
• 300 frequencies for each transmitter and IR system for a quick system setup
• UHF Band 823-832 MHz
• Simple and intuitive user interface with LCD display on transmitter and receiver
• Digital Pilot technology that allows multiple systems to use
• Signal level monitoring AF and the charge of the batteries directly on the receiver
• Ideal distance 80 m (without direct obstacles)

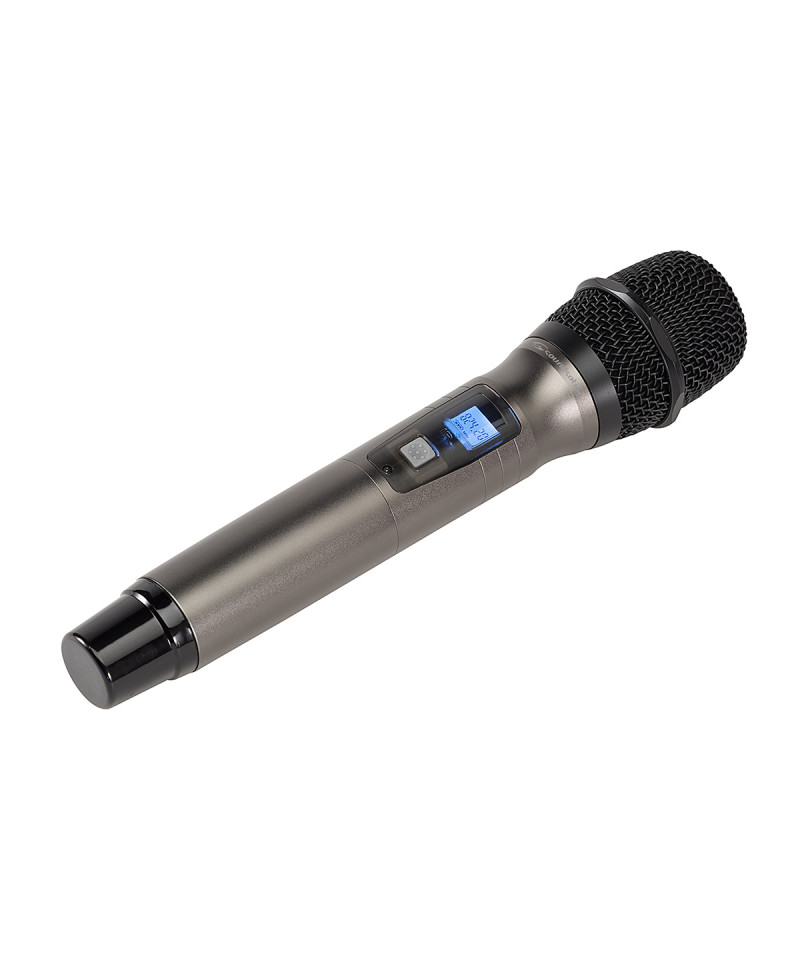

• Professional handheld microphone with cardioid dynamic capsule

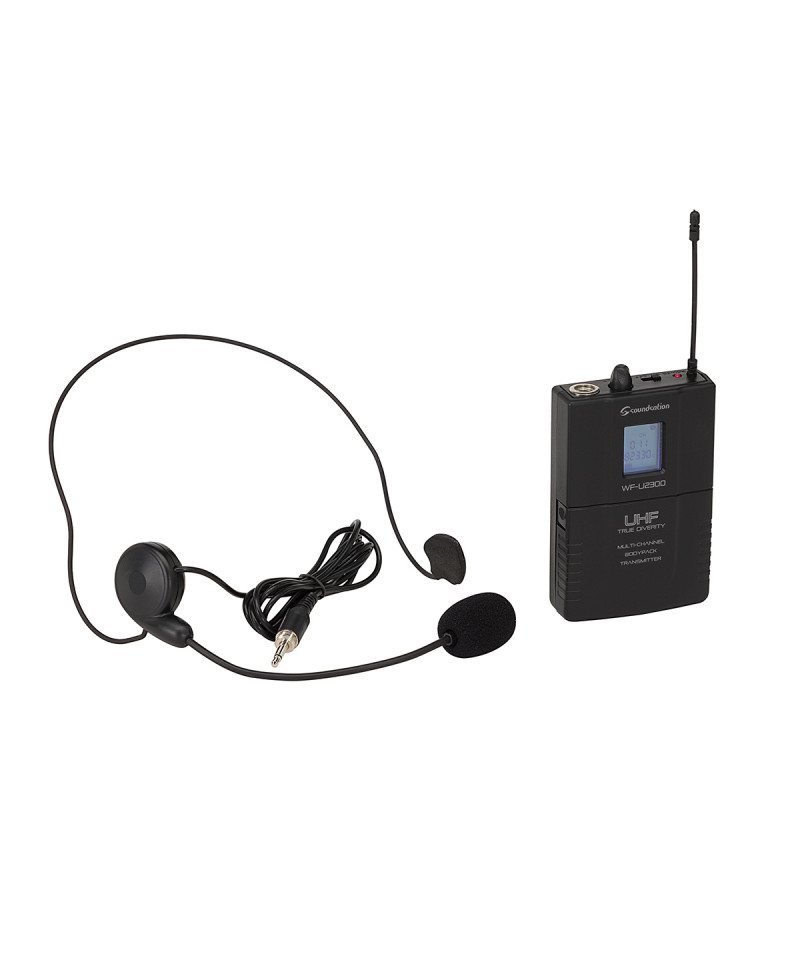

• Pocket transmitter with audio connector equipped with safety thread
• Light and professional headband microphone with high cardioid condenser capsule-sensitivity
• Rack mounting kit of 1 or 2 receivers in one unit (optional)
• Band: UHF 823-832 MHz
• Frequency stabilization: <± 30ppm
• Total harmonic distortionE: <0.5%
• Frequency response: 40 Hz-15 kHz ± 3 dB

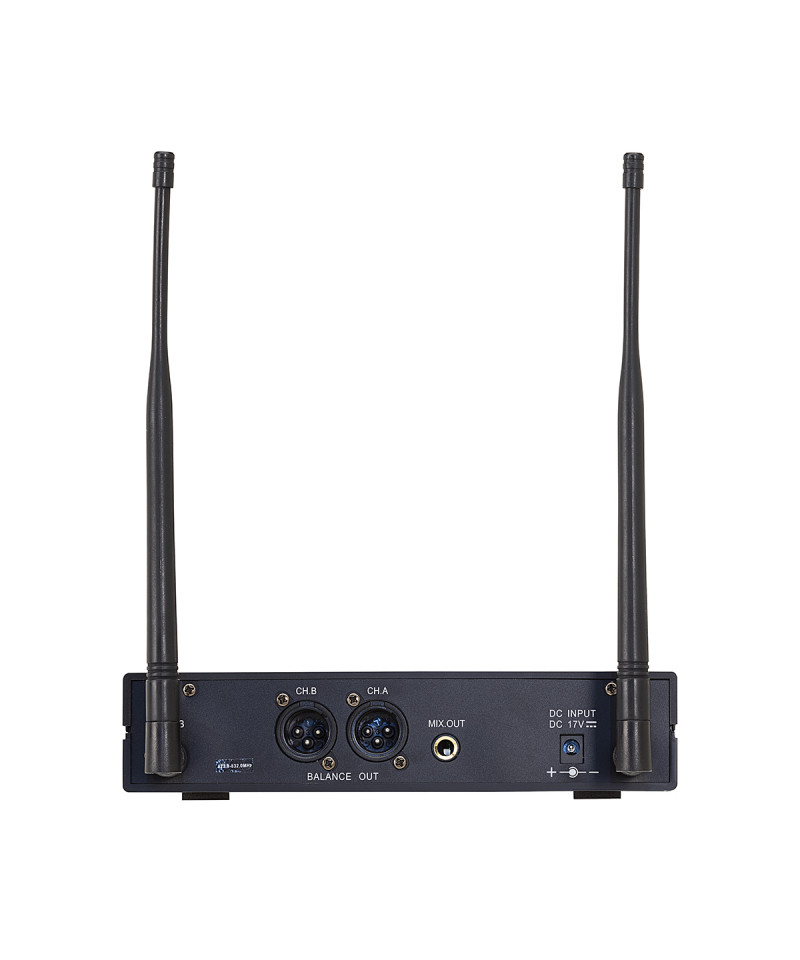

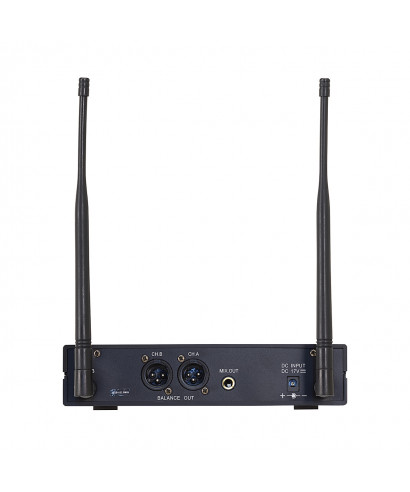

• Audio output level: Balanced 400 mV; Unbalanced 400 mV
• Packaging dimensions (LXAXP): 435x104x321 mm
• Gross weight packaging: 2.5 Kgalization receiver: DC 12V / 500 mA
• Consumption: 7 W
• Signal / noise ratio:> 90 dB
• Reception sensitivity: 5 DBUV
• De-EnfasI: 75 US
• Dimensions (LXAXP): 210x43x187 mm (antennas not included)
• Antenna: 255 mm (do not bend)
• Net weight: 0.53 kg
• Transmission power: 10 MW (MAX)
• Type of modulation: Fm
