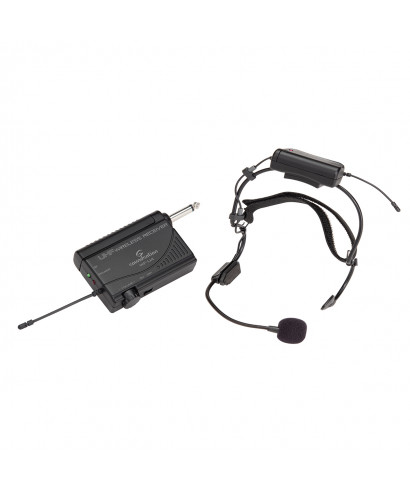

UHF radio microphone SOUNDSATION Wf-U4 FitnESS 16 channels TX Headset 863-865mhz
SOUNDSATION Presents UHF radio microphone SOUNDSATION Wf-U4 FitnESS 16 channels TX Headset 863-865mhz
WF-U4 FitnESS It is born from maximum freedom of movement and protection against the humidity that must characterize a wireless microphone designed for fitness or all those activities based on physical activity. Laltra Fundamental characteristic is easily ease of use and protection against interference in response eligibility of those who do not have much time for settings or audio tests: just insert the receiver into a jack socket from 6.3mm Your audio system, choose one of the 16 frequencies available and the game is done. WF-U4 FitnESS Opera in the frequency band between 863-865 MHz free throughout Europe and does not require special authorizations or licenses. The choice of frequencies takes place on the receiver via a selector and on the transmitter via the infrared synchronization system. The system has a practical and robust briefcase to protect the elements when not used and facilitate transport.
WF-U4 FitnESS It is born from maximum freedom of movement and protection against the humidity that must characterize a wireless microphone designed for fitness or all those activities based on physical activity. Laltra Fundamental characteristic is easily ease of use and protection against interference in response eligibility of those who do not have much time for settings or audio tests: just insert the receiver into a jack socket from 6.3mm Your audio system, choose one of the 16 frequencies available and the game is done. WF-U4 FitnESS Opera in the frequency band between 863-865 MHz free throughout Europe and does not require special authorizations or licenses. The choice of frequencies takes place on the receiver via a selector and on the transmitter via the infrared synchronization system. The system has a practical and robust briefcase to protect the elements when not used and facilitate transport.
- 16-channel UHF wireless microphone with PLL technology
- Sturdy and sweat resistant head microphone with dynamic capsule
- Selection of channels with DIP-Switch and synchronization via infrared
- No license need or special authorizations throughout Europe (ISM Europe band, 863-865mhz)
- Specifically designed for fitness applications
- Quick installation system without needing cables between receiver and sound system

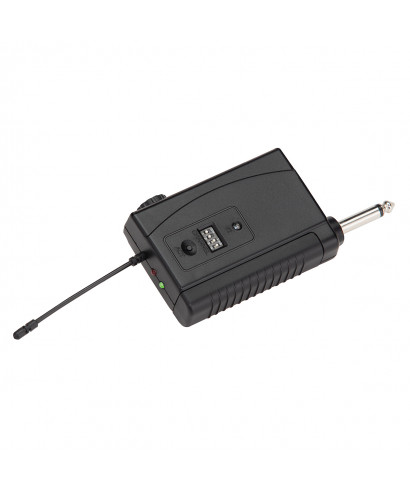

- Compact and practical receiver
- Direct connection of the receiver to the amplification system via jack from 6.3mm
- Headset transmitter battery: 1x 1.5v type aaa
- Battery receiver: 1x 1.5v type aa
- Band: UHF 863-865 MHz
- Stabilization of system frequency: <± 30ppm
- N893n
- Total harmonic distortion: <0.5%
- Frequency response: 40Hz 15khz ± 3db
- Ideal for use: 30m
- Consumption in power of the receiver: 100 mA
- Receiver signal / noise ratio: > 100DBS Reception: 5 DBUV (Sinad = 30DB)
- De-Emphasis receiver: 50μs
- Transmitter power: 10mw
- Modulation: Fm
- Transmission deviation: ± 40khz
- Microphone capsule: Cardioid dynamics
- Transmitter current consumption: <90ma
