True Diversity UHF radiomicrophone SOUNDSATION Wf-U1300P 300 channels TX Pocket 823-832mhz
Disponibile solo online
Free Shipping
I624I
New
Available
Order it before 12:30 on Monday and receive it between on 12/11/25 and 12/12/25 with Corriere Espresso. ESTIMATED DATE.

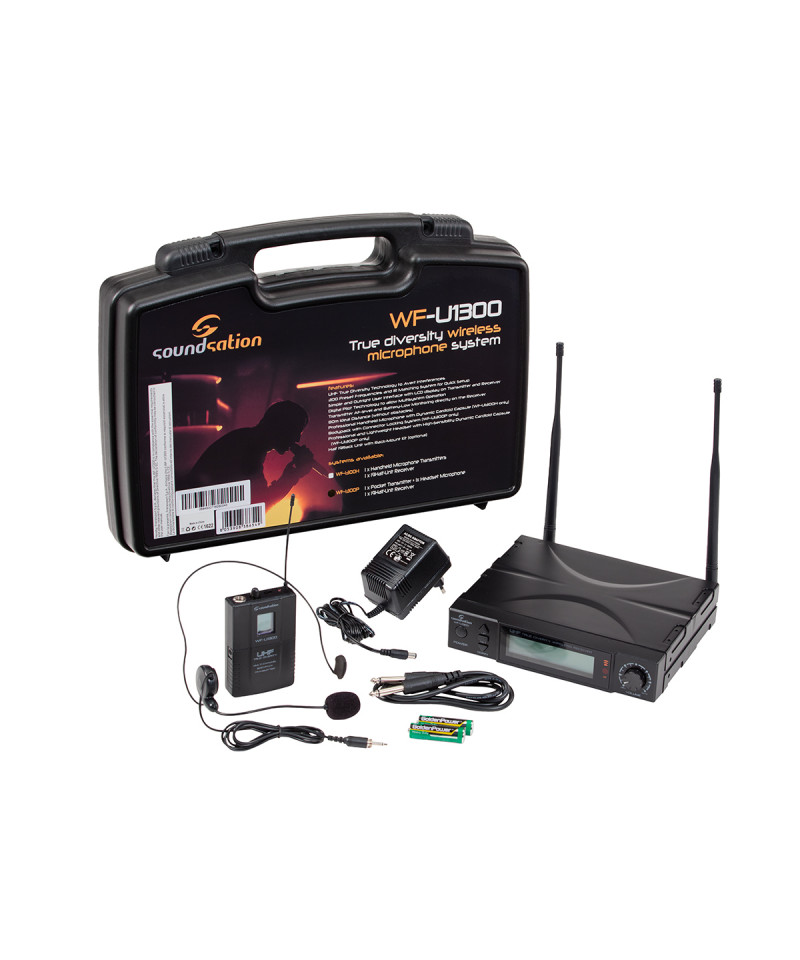

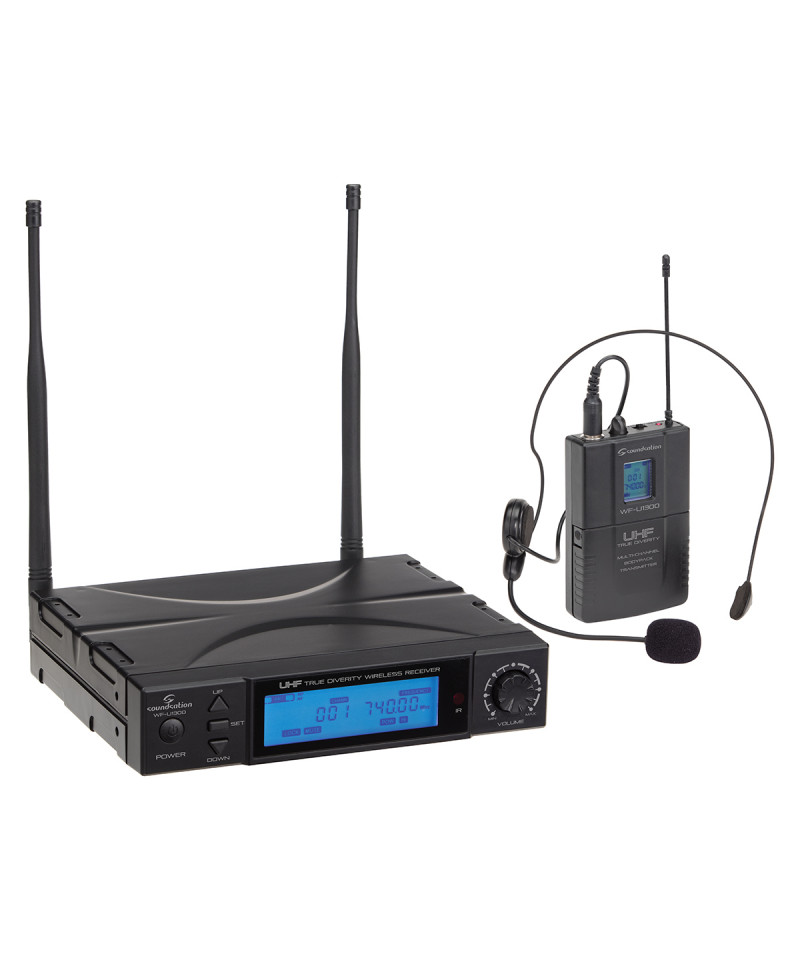

SOUNDSATION Presents True Diversity UHF radiomicrophone SOUNDSATION Wf-U1300P 300 channels TX Pocket 823-832mhz
WF-U1300 is a Professional UHF True Diversity Radiomicrophone with 300 channels and simple and intuitive user interface. True DiviSty means that the reception system is equipped with two antennas, two reception circuits and a device that can constantly choose the strongest and interference-free signal. This system is carried out with highly high-level technology that allows to integrate many of the main functions such as the amplification section, the digital signal processing, the synthesis of the PLL frequency (Phase-Locked loop) and more in a single chip. This allows you to offer highly professional performance in products definitely within reach of everyone. WF-U1300 is also equipped with an automatic frequency and IR system search system for channel synchronization between receiver and transmitter quickly. Furthermore, Digital Pilot technology allows not only to monitor the level of reception and batteries on the transmitter, but above all to operate with multiple systems without problems. Finally, two optional kits are available for mounting one or two receivers respectively on 1 or 2 standard 19 rack units.
WF-U1300 is a Professional UHF True Diversity Radiomicrophone with 300 channels and simple and intuitive user interface. True DiviSty means that the reception system is equipped with two antennas, two reception circuits and a device that can constantly choose the strongest and interference-free signal. This system is carried out with highly high-level technology that allows to integrate many of the main functions such as the amplification section, the digital signal processing, the synthesis of the PLL frequency (Phase-Locked loop) and more in a single chip. This allows you to offer highly professional performance in products definitely within reach of everyone. WF-U1300 is also equipped with an automatic frequency and IR system search system for channel synchronization between receiver and transmitter quickly. Furthermore, Digital Pilot technology allows not only to monitor the level of reception and batteries on the transmitter, but above all to operate with multiple systems without problems. Finally, two optional kits are available for mounting one or two receivers respectively on 1 or 2 standard 19 rack units.
- UHF True Diversity technology to limit interference to maximum
- 300 IR frequencies and system for a quick system setup
- UHF Band 823-832mhz
- Simple and intuitive user interface with LCD display on transmitter and receiver
- Digital Pilot technology that allows multiple systems to use
- Signal level monitoring AF and the charge of the batteries directly on the receiver
- Ideal distance 80m (without direct obstacles)
- Pocket transmitter with audio connector equipped with safety thread
- Lightweight and professional headband microphone with high sensitivity cardioid dynamic capsule
- Rack mounting kit of 1 or 2 receivers in one unit (optional)
- System
- Band: UHF 823-832mhz
- I624i
- Dynamic interval:> 90DB
- Total harmonic distortion: <0.5%
- Frequency response: 40Hz-15khz ± 3db
- Audio output level: 400mv balanced; 400mv unbalanced
- Packaging dimensions (LXAXP): 435 x 104 x 321 MMPESO gross packaging: 2.5 kg
- Receiver
- Power: DC 17V / 300MA
- Consumption: 5w about
- Signal / noise ratio:> 90DB
- Reception sensitivity: 5DBUV
- De-Emphasis: 75US
- Dimensions (LXAXP): 210 x 43 x 187 mm (antennas not included)
- Antenna: 255 mm (not folded)
- Net weight: 0.53 kg
