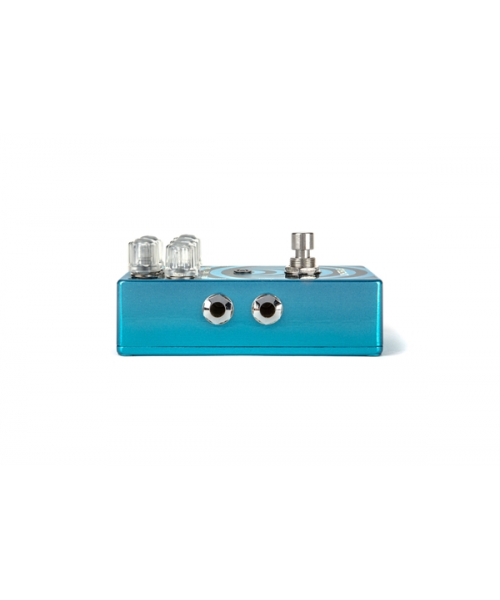

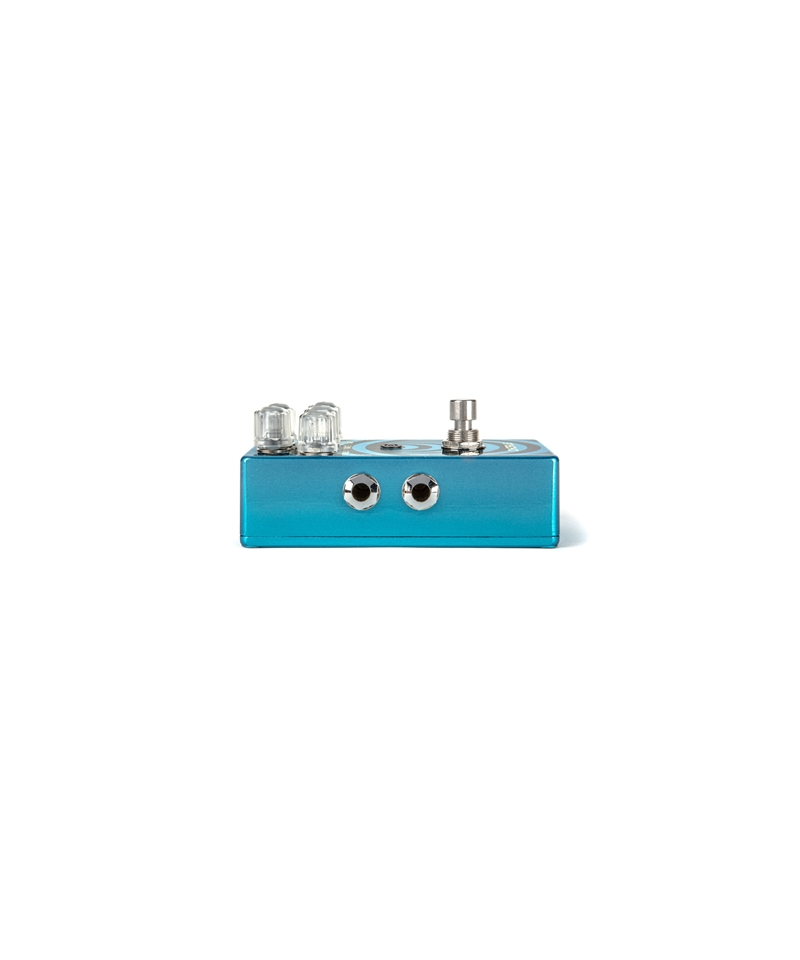

Born to celebrate the 20th anniversary of the collaboration betweenDunlopAnd the famous guitaristZakk Wylde, theMXR Wylde Audio ChorusAdds size and liquid consistency to clean sound. The heart of this pedal its circuitbucket-Brigade, which creates analogous sonorit in vintage style, adjustable with filtersHighandLowCut and with controlsLevel,RateandDepth. The two outputs allow two amplifiers to be connected to obtain a stereo signal.

Checks MXR Wa38 Wylde Audio Chorus

Low:cut the low frequencies;
High:Cut the high frequencies;
Level:regulates the overall volume of the effect;
Rate:Adjust the frequency of the effect;
Depth:Adjust the depth of modulation.

Feeding MXR Wa38 Wylde Audio Chorus

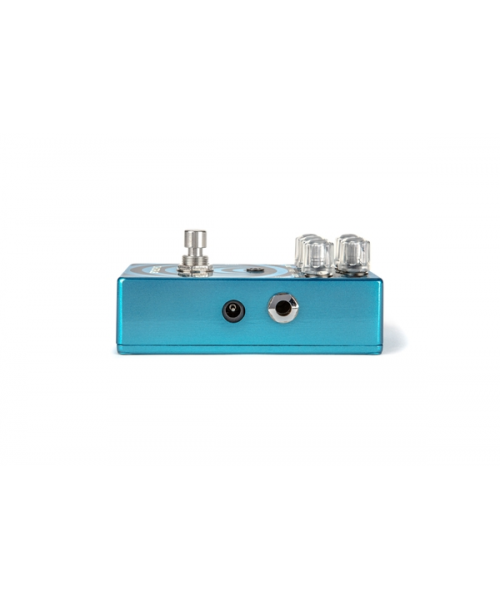

TheMXR Wa38 Wylde Audio ChorusIt can be powered with a 9 volt battery (remove the back plate to insert it), with an adapter like theDunlop ECB003or a series power supplyMXR Brick.

Technical specifications of the MXR Wa38 Wylde Audio Chorus

Input impedance:1 Meters
Output impedance:1 k
Background noise:-96 DBV (active effect), -106 DBV (bypass)
Tone control (Low):from 70 Hz to 800 Hz, 12 dB / oct shelf
Tone control (high):from 660 Hz to Flat, 6 db / oct shelf
Current absorption:13 but
Power:9 Volt DC
