Switcher box preamplifier

RADIAL presents Pcs pro

Takes full control of tone, equalization and effects with the Radial PZ-Pro, a preamplifier for two-channel instruments, with functions of and switcher. Each channel has a complete independent equalization of a filter section to reduce the feedback on the stage. The second pcs channel-Pro also has a microphone input to allow the use of any dynamic or condenser microphone, including microphones for clip tools. Thanks to the 3 pedal switches you can switch from an inlet channel to another, activate an integrated booster, an effect loop, or deactivate the signal for a silent getting on the stage.

Radial PZ-Pro It is a study quality audio preamplifier designed for acoustic musical instruments. PCs-Pro offers you 2 channels with EQ seeds-Separate parameters, piezo input amplifiers on both channels, a XLR microphone input with Phantom power supply on channel 2 and FX loop assignable with relative Wet / Dry control.

Pc-Pro is designed for instrumentalists and artists who adopt an uncompromising approach when it comes to sound, both on stage and in the recording studio. The double input channels allow to switch between or mix two sources, with full control of the sound of each input. Each channel has its own seed equalization section-Parametric and your control level control to which individual filter controls are added to reduce any feedback. The second pcs channel-Pro also has a microphone input to allow the use of any dynamic or condenser microphone, including microphones for clip or microphones for voice. A FX Loop with a Wet / Dry potentiometer offers the possibility of mixing an external effect from pedal, which can be activated thanks to the dedicated footswitch. Finally, the pc-Pro is highly configurable, so you can adapt it to meet your performance needs, instead of changing your services to adapt to the limits of your equipment. Connect magnetic pickups, tools with integrated preamplifiers or piezoelectric transducers and optimizes the sound of each with powerful EQ controls and a notch filter or passes-High variable. Join a tool microphone with your pickups, switch from one instrument to another or connect a microphone for voice and canopy through guitar pedals. The FX Loop can be assigned to channel A, B or both simultaneously, you can activate it with a foot switch or assign it to always be active, saving the control of the foot switch for the Variable Clean Boost function. Pc-Pro, get the duration and performance for which the Radial brand is internationally renowned, along with all the features you need to create an unforgettable live performance.

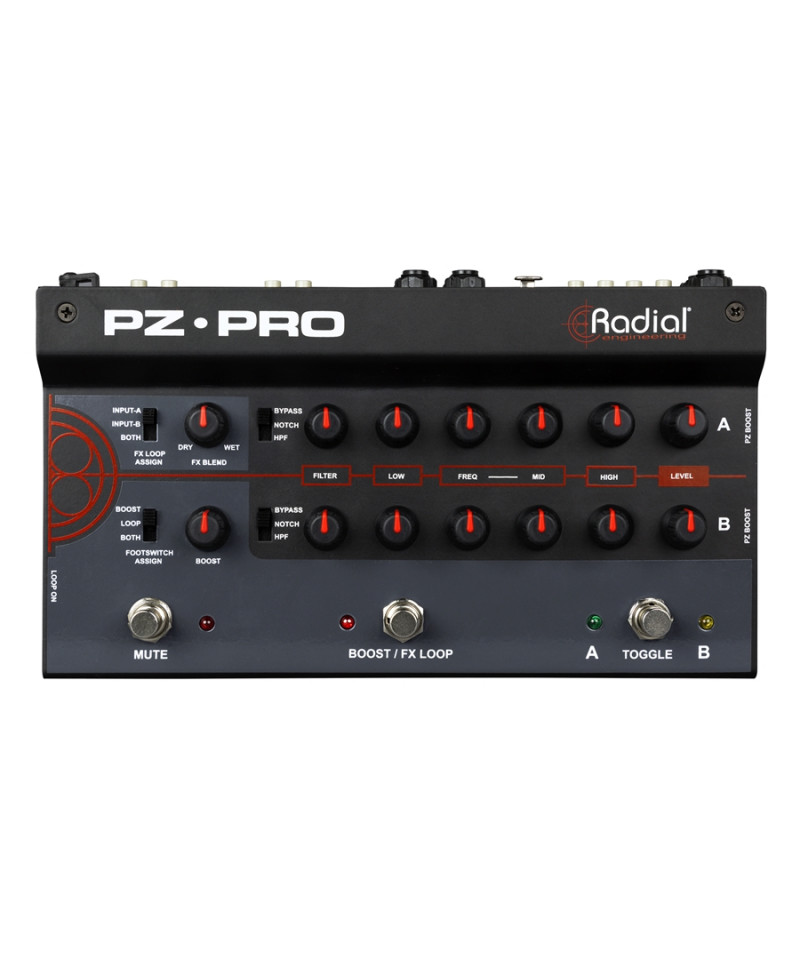

Front panel RADIAL PCs-Pro

• Level: sets the volume on each input channel
• 3 Band EQ: Variable EQ for each entrance with low control, semi parametric and high frequency boosts / cuts
• Filter: Thanks to the 3-position switch and variable control, you can activate a filter for targeted removal of a frequency, or a high pass to limit the bottom band.
• FX Blend: Wet / Dry control allows you to mix input sources (DRY) with the FX Loop (WET)
• FX Loop Assign: Select whether the pedals connected to the FX loop influence the signal on the input A, B or on both
• FootSwitch Assign: Used to set the Boost / FX loop pedal. You can decide whether to make them activate the boost, the fx loop or both
• Boost: Set the amount of Clean Boost when the Boost circuit is active
• Toggle: The pedal switch allows you to select between the input A and the B with the LED that will indicate which input will be active. This switch is bypassed when the switch is activated in the rear panel.
• Boost / FX Loop: the pedal switch activates the Clean Boost or the FX Loop. It works in combination with the footswitch assign switch.
• MUTE: Disable all outputs except for that tuner. Use it for silent tuning or tool changes.

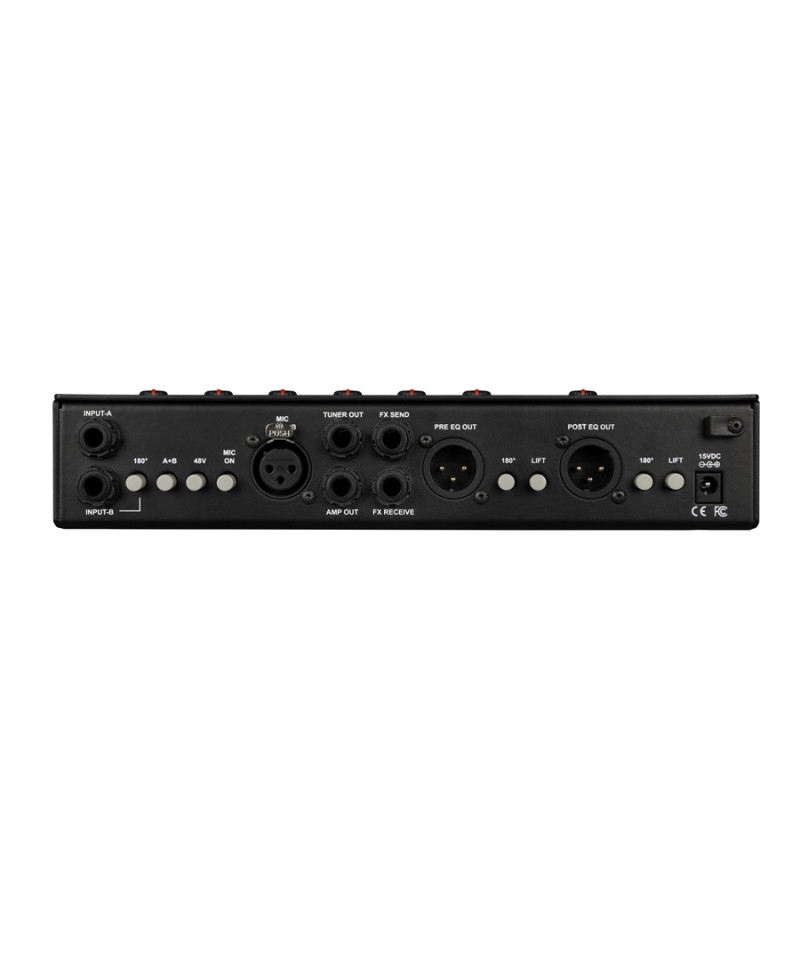

Rear panel RADIAL PCs-Pro

• INPUT A: ¼ "TS Jack TS format tool for channel A
• INPUT B: ¼ "TS Jack TS format tool for channel B. This input is deactivated when the MIC ON switch is active.
• 180 °: The polarity reversal switch for input B helps to correct the phase problems when both inputs together. This switch also affects the microphonic input of the channel B.
• A / B: Sum the inputs A and B together after the respective equalization sections. The activation of this switch activates both inputs simultaneously and deactivate the Toggle pedal switch.
• 48V: Activates the Phantom power supply on the microphone input of the channel B to power the condenser microphones.
• MIC ON: Activate the XLR microphone input of channel B, deactivating the instrument input on the same channel.
• MIC INPUT B: XLR input for connection to a microphone on channel B. Compatible with dynamic and condenser microphones.
• TUNER OUT: buffered output on ¼ "TS jack for connection to a tuner pedal. This output will always be active even when the Mute pedal switch is activated, allowing tuning at any time.
• Amp Out: ¼ "jack tool output for connection to an amplifier. The output signal includes all EQ settings, along with the FX loop and the Boost function.
• FX Send & Receive: Tools Sockets on ¼ "jack for external pedal effects connection. Activated from the Boost / FX Loop pedal switch.
• Pre EQ OUT: Balanced Direct Box XLR output to send a signal to the PA or to an audio interface for recording. This output is not affected by the settings of EB or from FX / Boost functions
• 180 °: Reverses the polarity of the pre eq output out.
• Lift: Disconnect the PIN 1 of the XLR pre eq output output to eliminate buzzing or mass loops.
• Post EQ Out: Balanced Direct Box XLR output To send a signal to the mixer, the audio system or to an audio interface for recording. This output is influenced by the EQ settings or FX / Boost functions
• 180 °: Reverses the polarity of the Post EQ output output to help eliminate the feedback on stage or correct phase problems when adding the output of a microphone amplifier.
• Lift: Disconnect the PIN 1 of the XLR Post EQ output output to eliminate buzzing or mass loops.
• 15 VDC: connection for the radial 15VDC / 400MA feeder (included).

Radial PZ technical specifications-Pro

• Channels: 2 inputs, mono pre and post EQ XLR balanced out
• Frequency response: 20 Hz-20 kHz (+ /- 0.5 dB)
• Gain: + 20DB (Instrument Input), + 55dB (MIC In)
• Clip Level: + 10DBU @ XLR output
• Total harmonic distortion: <0.005% a 1 kHz
• Input impedance: 220K Ohm Jack in (10meg ohm with active boost pcs)
• Output impedance: 1k ohm
• Noise: -91dbRADIAL PZ features-Pro- Polarity inversion (180 °), ground lift, fx loop, eq control, boost
• Input connectors: Instrument 1/ 4 ", XLR microphone
• Output connectors: Pre and post EQ XLR, exit 1/ 4 "amp
• Extra: Loop effects from 1/ 4 ", boost, tunerIn general- Construction material: steel
• Dimensions and weight: 231x135x46mm; 2,27kg
• Power: 15VDC 400mA, Positive Central Pin
• For use in dry places only between 5 ° C and 40 ° C
