Universal power supply

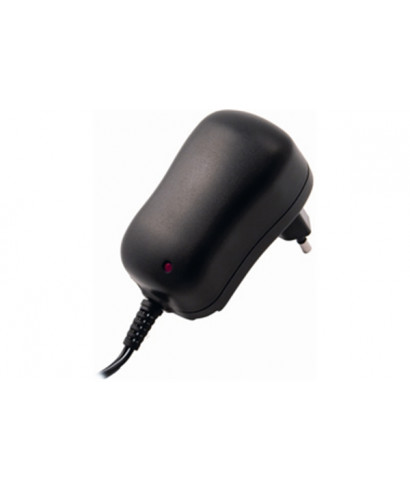

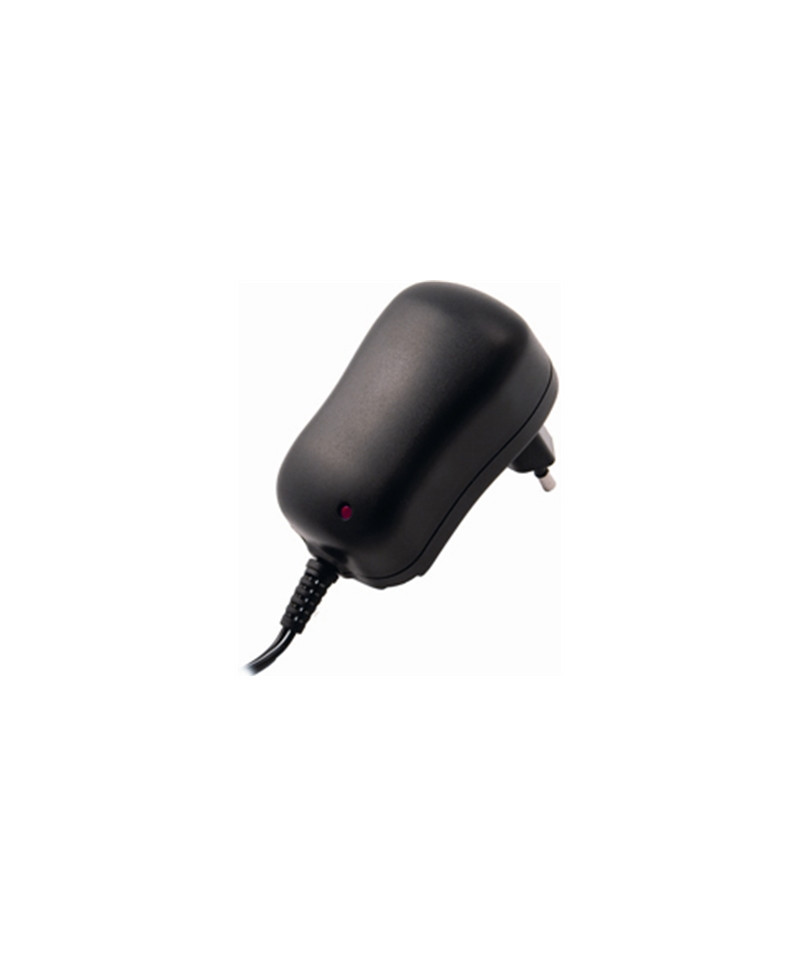

QUIK LOK presents Ua / 500-K

Switching power supply Universal 500 mA / 7.2 W Stabilized ultra-compact dimensions with direct input on socket 100/240 VAC - 50/60 Hz and adjustable DC output (3 / 4.5 / 5/6 / 7.5 / 9/12 VDC) via a special rotary switch.
This power supply is equipped with a universal connector to which to apply one of the eight coaxial DC power plugs supplied. In addition, three USB adapters are provided (only 5 VDC output only) for power supply of multimedia. A special switching key selects the output voltage through the rotary switch. Equipped with red state LED. Ideal for all DC powered portable multimedia devices.

• Input: 100-240 V AC
• Selectable output: 3 / 4.5 / 5/6 / 7.5 / 9/12 V DC
• USB output voltage: 5 V DC
• Entry frequency: 50 - 60 Hz
• Switch to reverse polarity
• Maximum output current: 600 mA
• Maximum output current: 600 mA
• Coaxial jack sockets: 2,5 - 3,5 - 3,5x1,35- 5x2,1 - 5,5x1,5 - 5,5x2,5
• LED indicator Dimensions: 69 (L) x 39 (a) x 31 (p) mm
• Size: 69 (L) x 39 (a) x 31 (p) mm
• Single packaging: 1
• Master packaging: 50
• Certifications: EUP, CE, ROHS, GS, TUV
