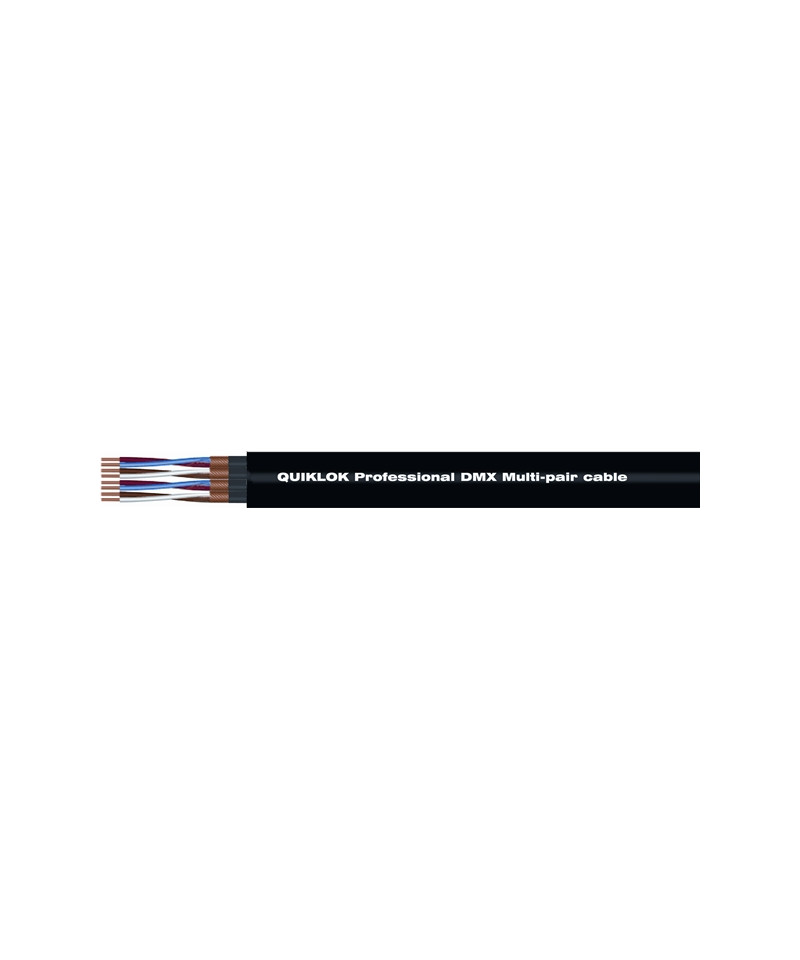

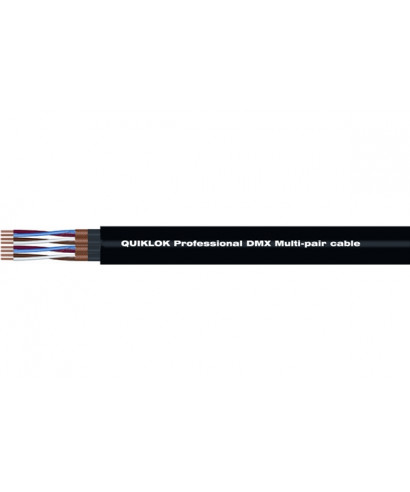

DMX multipolar cable

QUIK LOK presents Inches / 828

DMX 120 Ohm Super Flex multipolar cable: 4 pairs to transport DMX digital signal to 2048 channels.

• Internal conductor: 2 x 0.22 Twisted red copper in 4 pairs
• Isolation: Polyethylene Ø 1.20 mm Color (white / blue) - (White / Blue)
• Single pair sheath: PVC Flex Ø 3.40 mm
• Screen: Tinned copper braid + drain wire + alu foil cover 100%
• Total sheath: PVC Super Flex Ø 11.20 mm
• Weight: 138 kg / km
• Impedance: 120 ohm
• Resistance to the conductor (20 ° C): <87 Ohm / km
• Inductance: <0.37 MH / km
• Conductor / conductor capacity: 37 pf / m.
• Insulation resistance: > 10000 Mohm / km
• Test: 1000 VDC
• Operating temperature: -25 ° / + 70 °
• Available colors: Black
• Coil length: 100 m
