Ethernet cable

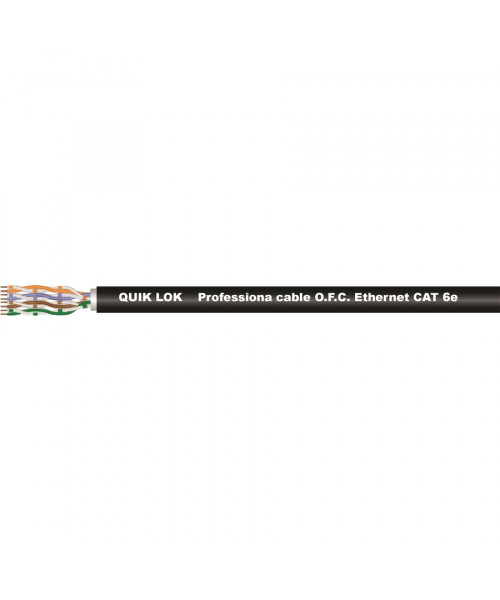

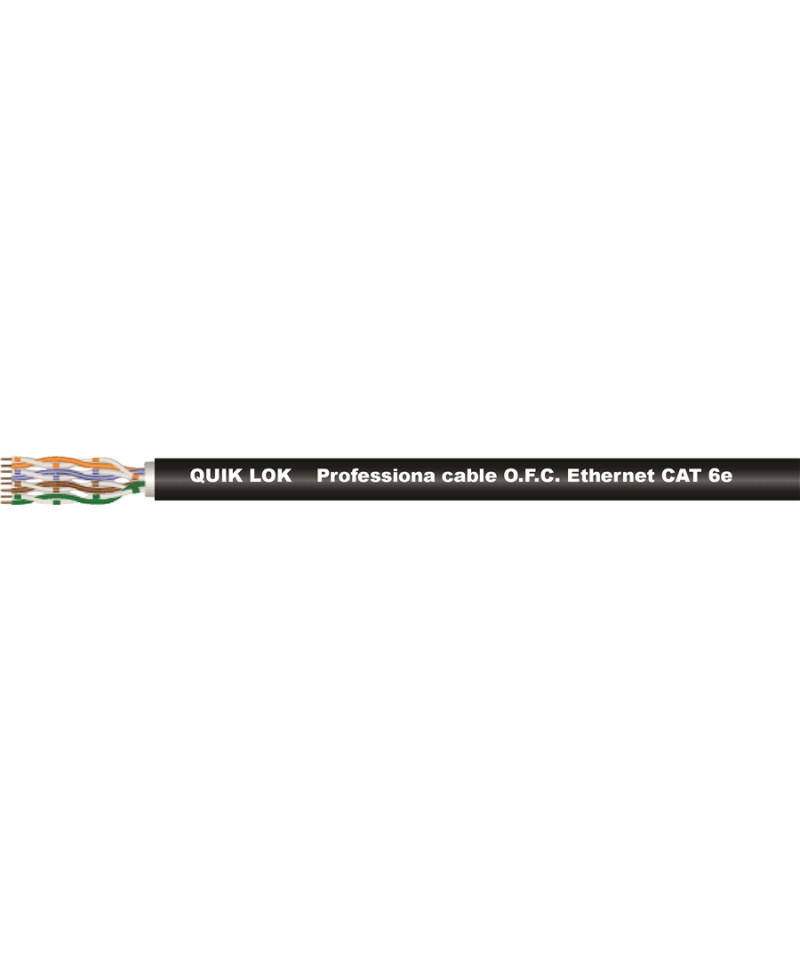

QUIK LOK presents ETH / 1007 BK

Shielded Cat6e Ethernet cable.
The cable is the means through which the sound of our instrument arrives at its destination, which is why its quality is as important as that of the instrument we use.
Needless to worry about the quality of our instrumentation and neglect the link ring that transfers the sound.
All our cables have a fundamental characteristic of a signal transport absolutely transparent and exempt from disorders, of course they can change electrical and mechanical characteristics but always above all things emerges quality, transparency and sound depth.

• Internal conductor: Rigid red copper 7x0,57 mm
• Isolation: Polyolefins Ø 1, 00 mm
• Green, white + green, orange, white + orange, blue, white + blue, marrare, white + brown
• Screen: Tinned copper braid + aluminum ribbon / mylar + drain wire cover> 80%
• Sheath: Polyurethane Ø mm
• Weight: 47 kg / km

• Resistance to the conductor: 70 ohm / km
• Conductor / conductor capacity: 76 pf / m
• Insulation resistance: > 10000 hours km
• Operating temperature: -40 ° / + 80 °
• Available colors: Black
• Bobbins length: Available to footage
