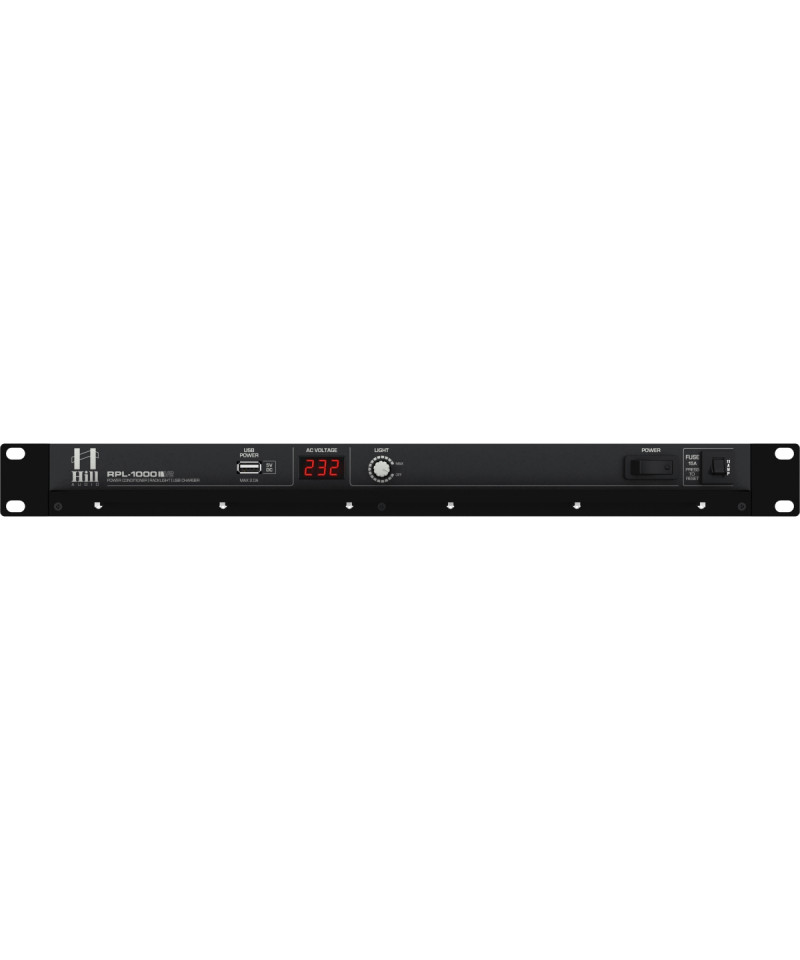

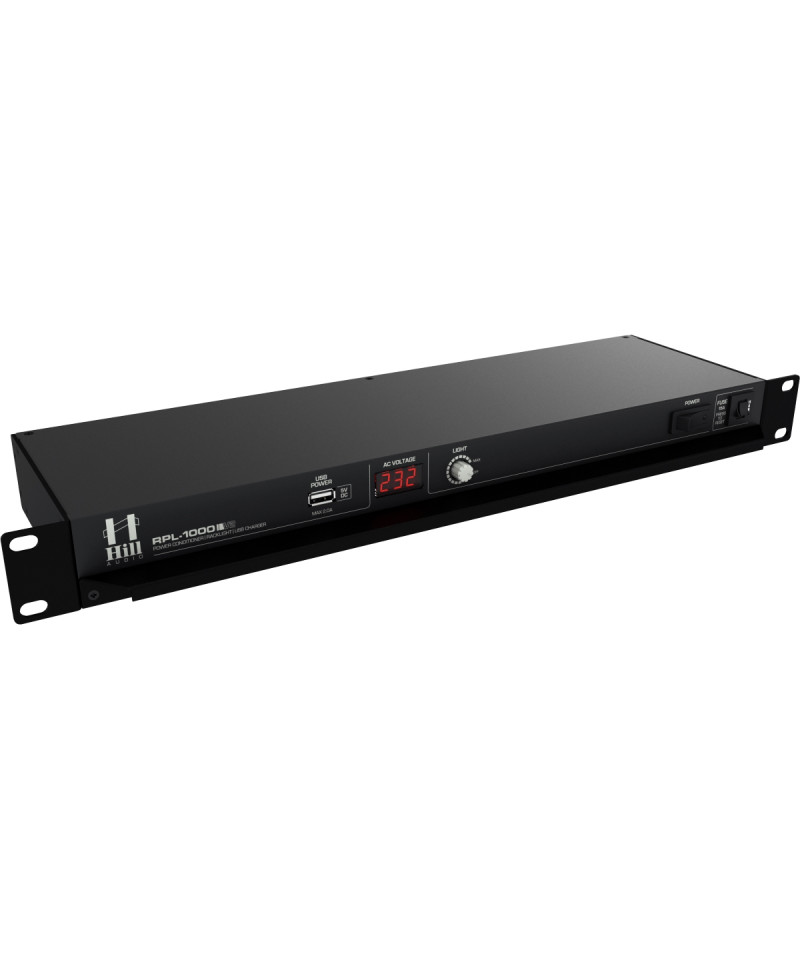

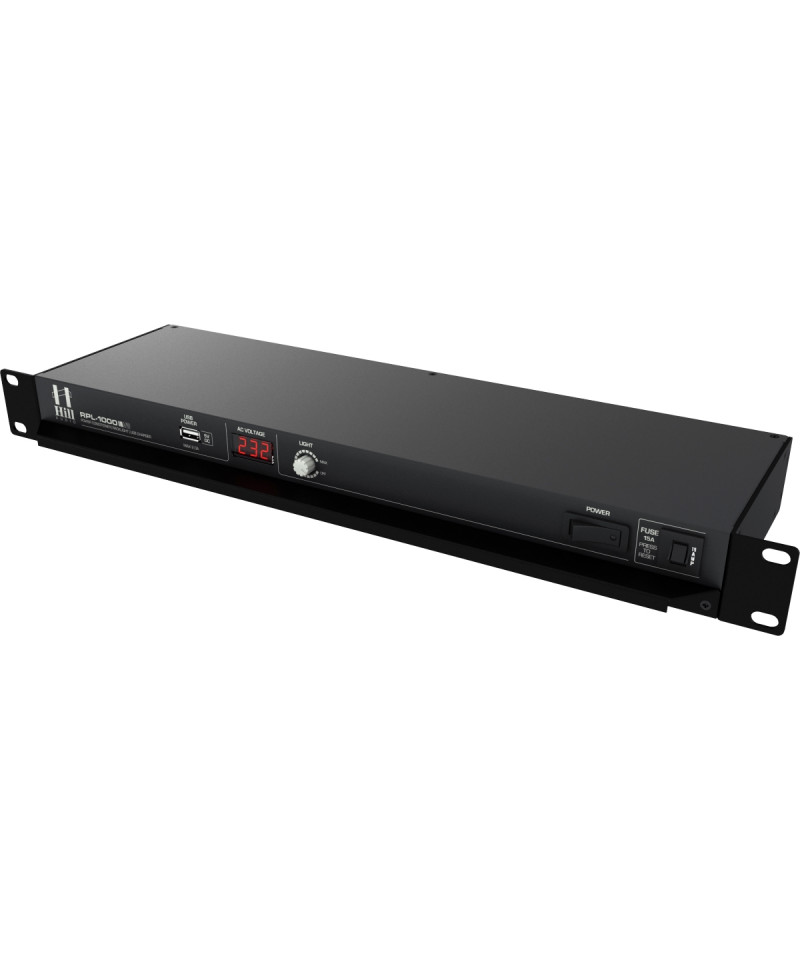

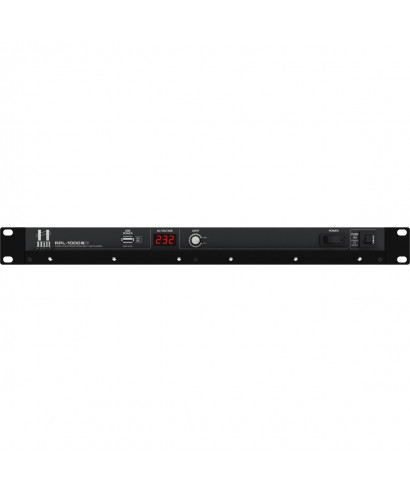

The RPL power supply module-1000v2 combines a power distribution system, a comfortable lighting and a USB power outlet, in all in a 19 "standard rack unit, making it a convenient tool for fixed and touring installations. RFF / EMI filtering and a 15 amp fuse They protect the products connected to it and ensure better performance thanks to the stabilized and spurious flow rate flow directed at 10 IEC sockets on the back of the appliance. The voltimeter placed on the front panel facilitates the understanding of current power conditions. Unlike traditional illuminated current distributors, RPL-1000V2 works with a fixed luca consisting of a white LED strip whose result is a distributed and homogeneous lighting down, adjustable and virtually unlimited virtually unlimited over time.

Features

• Distribution module with single entrance and 10 IEC C sockets-13
• Power for single socket 5a, max power per group of 5 sockets 8a, max Total power 15a
• Automatic 15A switch with reset text, placed on the front panel
• RFI / EMI filters for AC sockets
• Anti-SPIKE protection and overvoltage for AC sockets
• 3-digit digital voltmeter with precision -+ 3%
• MAIN ON / OFF SWITCH

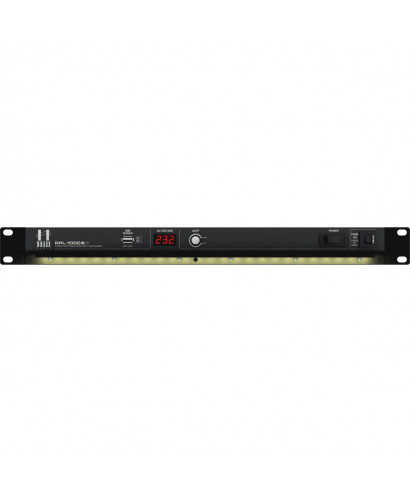

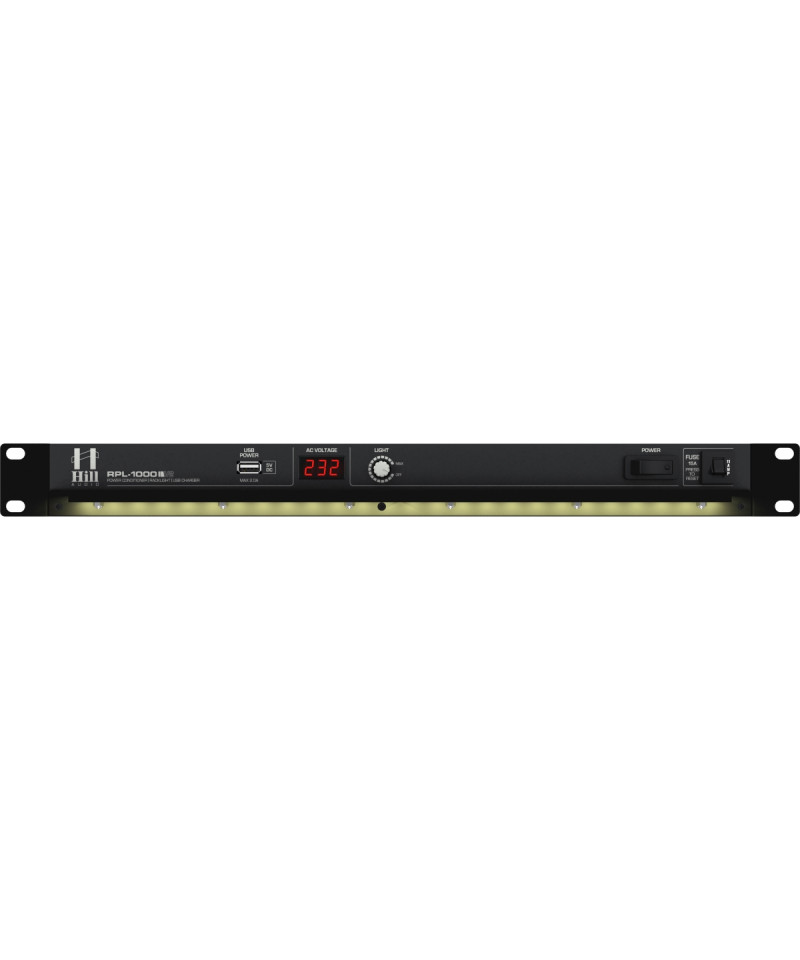

• Lighting with white LED stripe
• LED dimmable brightness and ON / OFF switch
• Taken USB for charging with max 2a dispensing
• Metallick houses with removable flaps

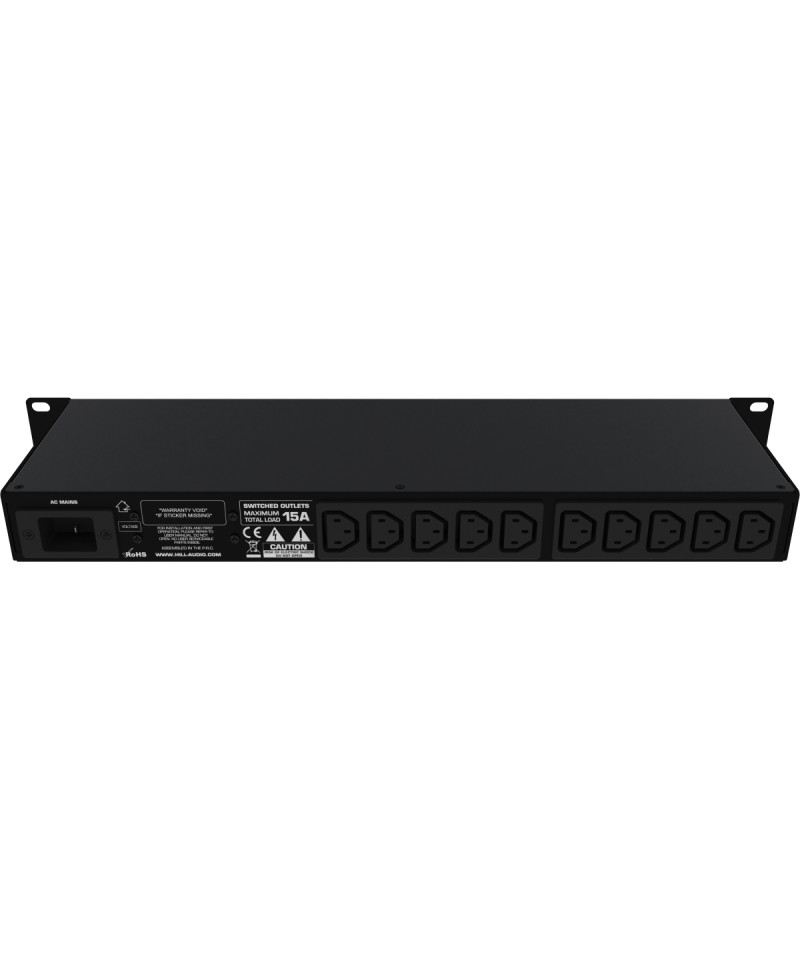

• IEC Network Input Socket-20 (connector C-19 included)
• Supplied with connectors C-14
• CE / ROHS compliant

Technical specifications

• Sockets: 10 (2 groups of 5 sockets)
• Total output current (pre socket and for sockets): 15a (5a / 8a)
• E485e
• Feeding: 115-230v ~ 50 / 60hz
• Consumption: max 18w
• Dimensions: 483x44.5x150
• Weight: 1.95 kg
