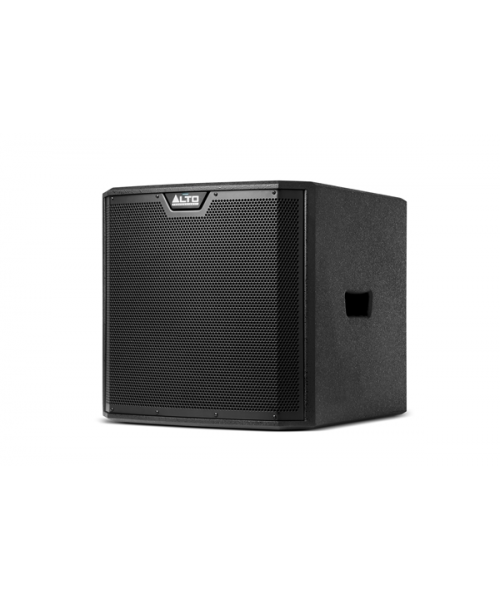

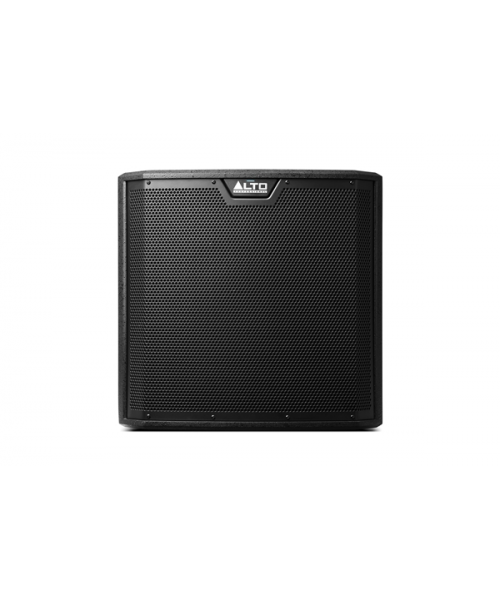

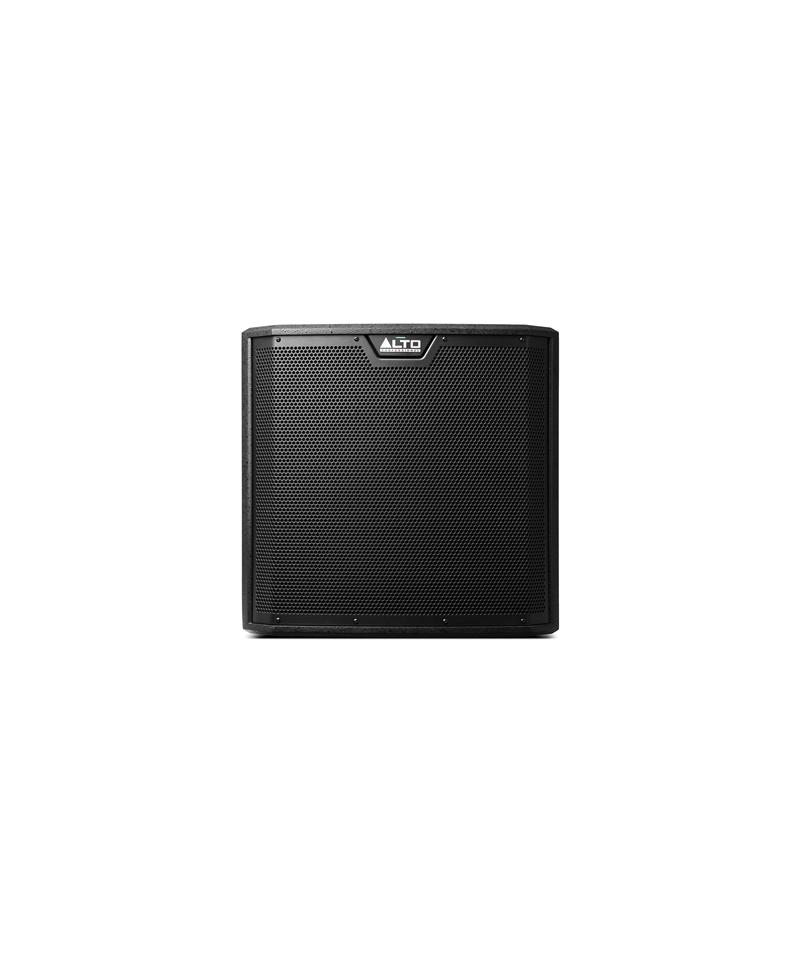

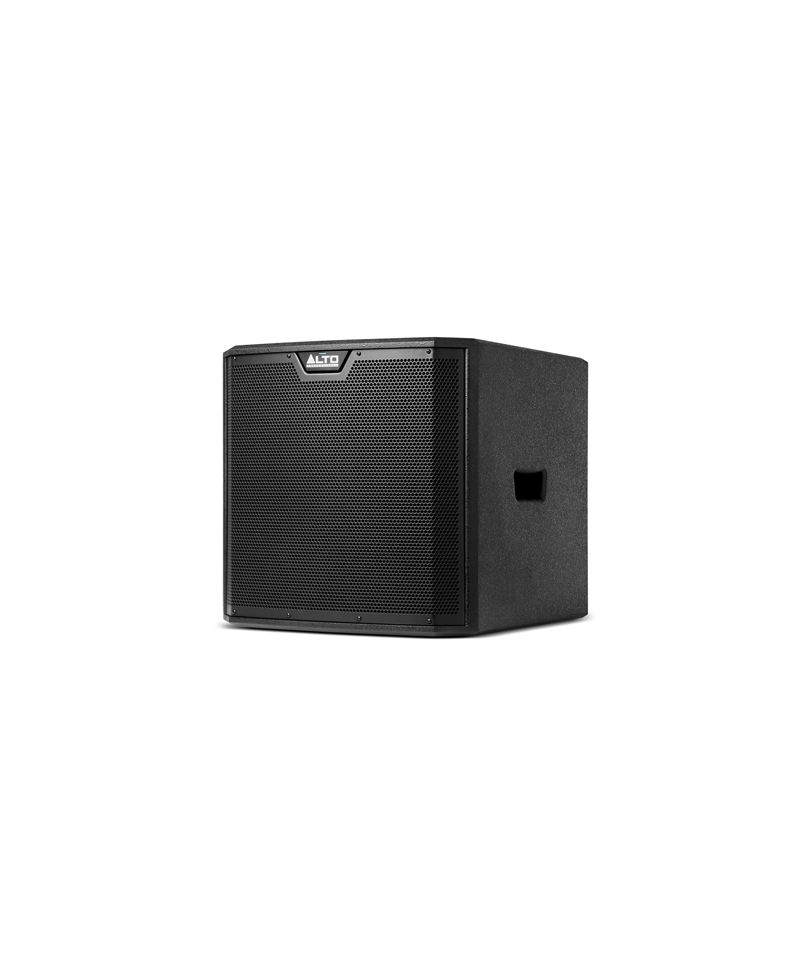

ALTO PROFESSIONALpresentsTruesonic TS312S sub

There are situations in which your audio system needs more power and greater extension in low frequencies. For these applications, the High Professional produced the subwoofer line amplified in class D (2000 watts of peak, 1000 watts continuous) called TS3S, which consists of three models at 12, 15 and 18: TS312S, TS315S and TS318S. These subwoofers extend the cover in the low frequencies of any FULL speaker system-Range, optimizing the general rendering of your audio system on all the spectrum. The Sub seriesTs3sIt is distinguished by the presence of woofers from the long excursion installed firmly inside a robust cabinet with agreement, optimized to the computer for the best power rendering in low frequencies. The cabinet produced in high-densit composite wood perfect for its acoustic, robust and unrolled acoustic characteristics.

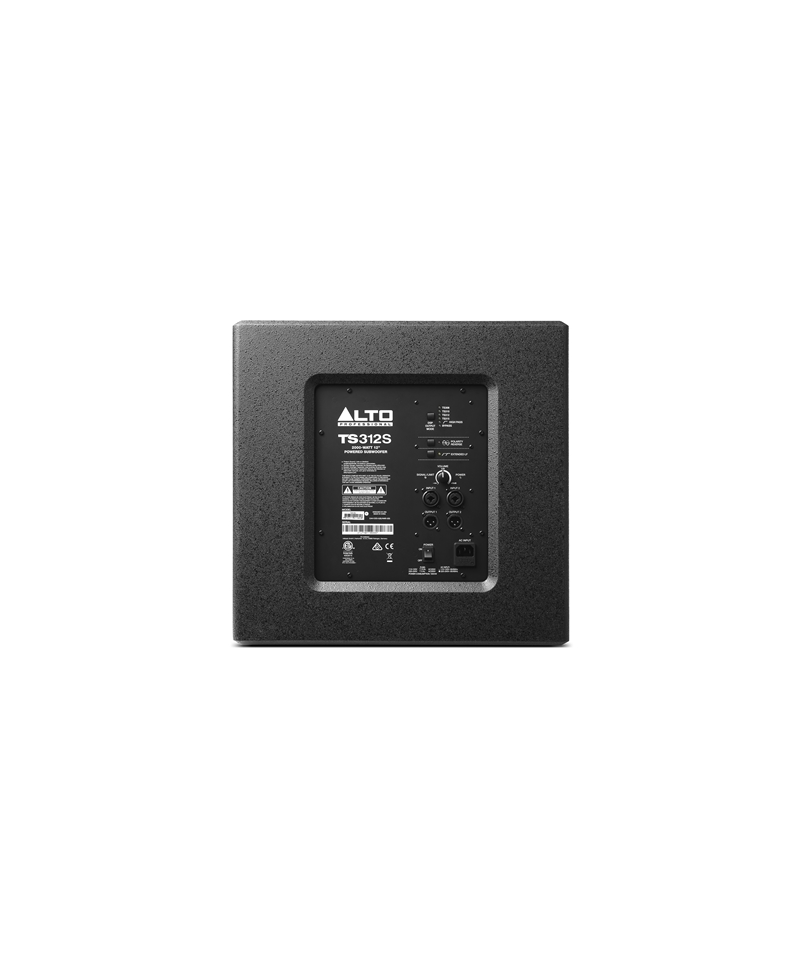

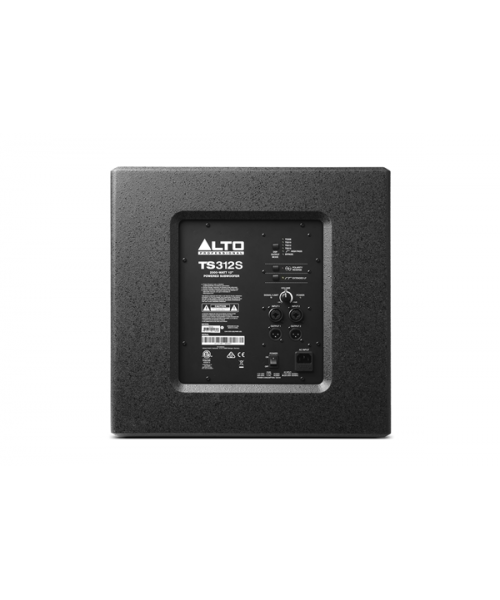

In a subwoofer it is not enough to focus on the power and accuracy of its coverage, you need to consider complaining to a speaker system to create a complete and performing audio configuration. Right on this front the series of subwoofersTs3sofHigh professionalexcel. All models (TS312S, TS315S and TS318S) have an integrated DSP by which 6 selectable configuration presets are applicable using a button placed in the rear panel. 4 of these presets have been programmed for full speakers-Range of the TS2 and TS3 series produced by the same American company, while the other two (Hi-Pass or bypass mode) can be used to sample TS3 subwoofers inside set-Up compounds from speakers from other brands and models. The computer design of these sub-based sub-analysis and static finite elements (FEA: Finite Element Analysis) allowed to optimize the magnetic structure of the cone to maintain the maximum sensitivity. The dense winding of the coil and the adhesives used in the construction respectively guarantee optimal use of the input signal and an overrun to endure at high temperatures. The subwoofers of this series are all equipped with limitation circuits and protection to prevent clips, overheating and transducer's lovers, for maximum usability even at extreme settings.

Technical specifications high professional ts312s

• 12 (305mm) subwoofer amplified
• Amplification in class D: Peak 2000w, 1000W continuous
• Frequency response: 44Hz 95Hz (- 3db)
• Covered range: 38Hz 110Hz (-10db)
• Maximum SPL: 129DB (@ 1M)
• 2 Combo XLR / Jack inputs 1/ 4 (6.35mm)
• 2 XLR outputs with 6 selectable presets for matching with satellites
• Controls: Power button, volume, LED indicator for signs / limiter clip, DSP Output Mode switch with LED, polarity reversal, FQ base extension switch
• Protection: CLIP, THERMAL AND OVERDRIVE OF THE TRANSDUCERS
• Cabinet in reinforced, robust and scratch-resistant spray painted MDF
• 36mm hole on the top for satellite stands
• M10 suspension points
• Dimensions and weight: 456x459x505mm; 25kg
• Consumption: 1000w
• Fuse: T5AL AC250V (220240V)
• Designed and calibrated in the USA
