Amplified subwoofwer

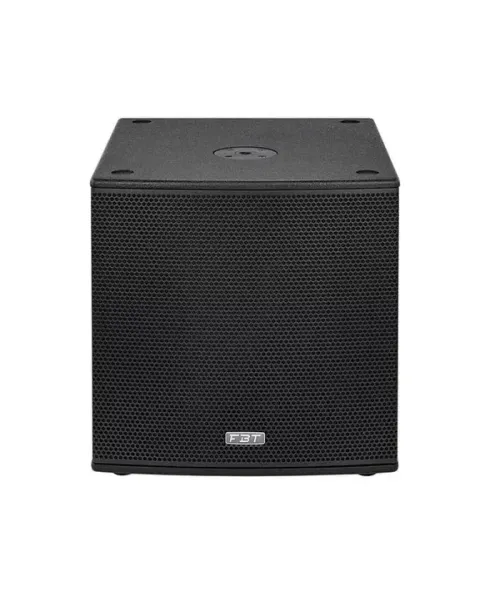

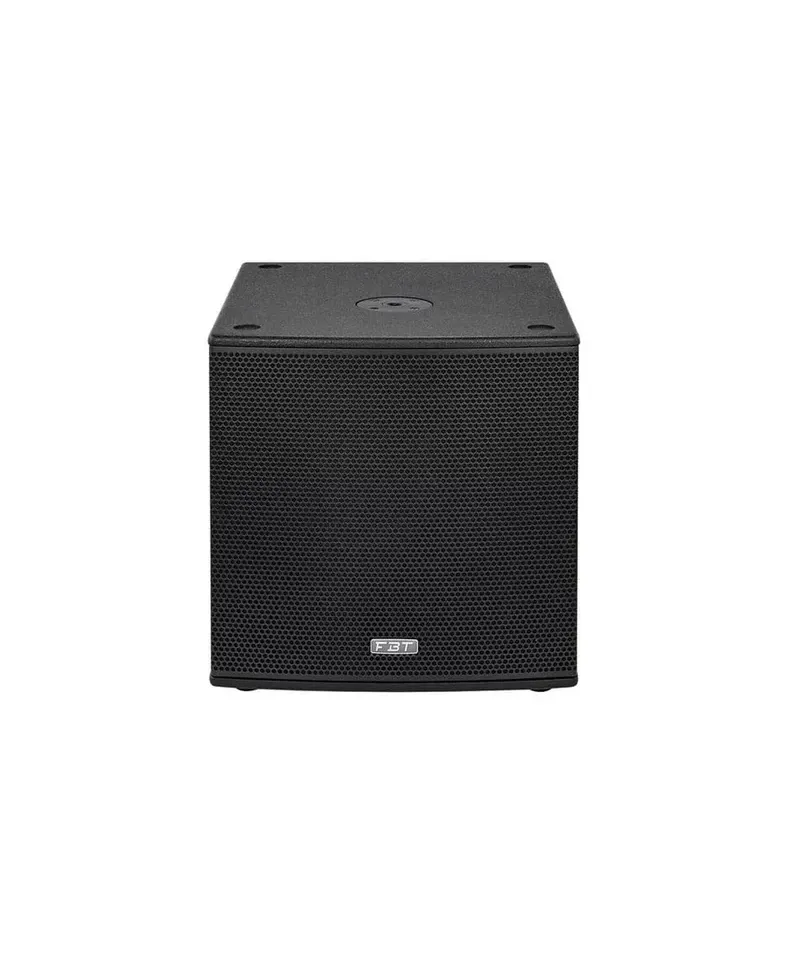

FBT, a famous Italian brand for the hearing offices, presents Subline 115 SA

The Subline Series has been completely redesigned and consisting of 112SA models, 115SA, 118SA, 218SA assets and by the 118S and 218S passive subwoofers, all bass-Reflex, built in birch plywood and aimed at expanding the low frequency response to a wide range of speaker systems FBT. Created with the purpose of maximizing the SPL / SIZE report, they have class D amplifiers, power supply in mode mode and digital signal processor with preset to match any other speaker FBT. With IN / OUT stereo connectors, you can only use a subwoofer with left and right speakers. The optional wheels, ergonomic integrated transport handles and the mobile type multilayer furniture-Tours allow easy transport.

• Design Bass Reflex with Splh and punches high
• Woofer with 380mm magnet (15 ") with a wide excursion with 75mm coil (3")
• Frequency response from 40Hz to 140Hz
• New designed and manufactured amplifier from FBT, 700W RMS in class D
• Digital signal processor with 8 presets, 2 EQ with 2 CROSSOVER LPF presets, cardioid configuration

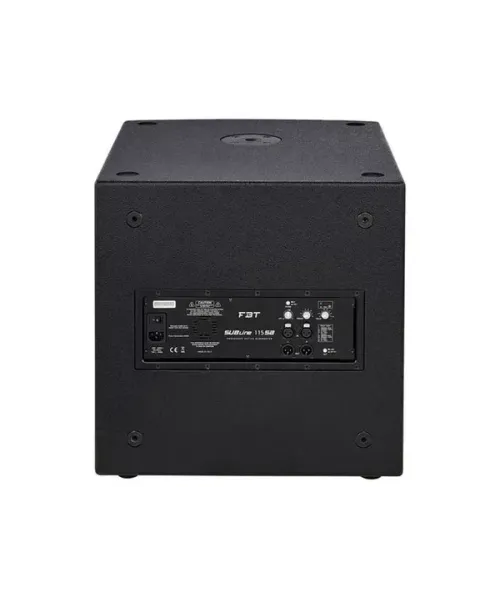

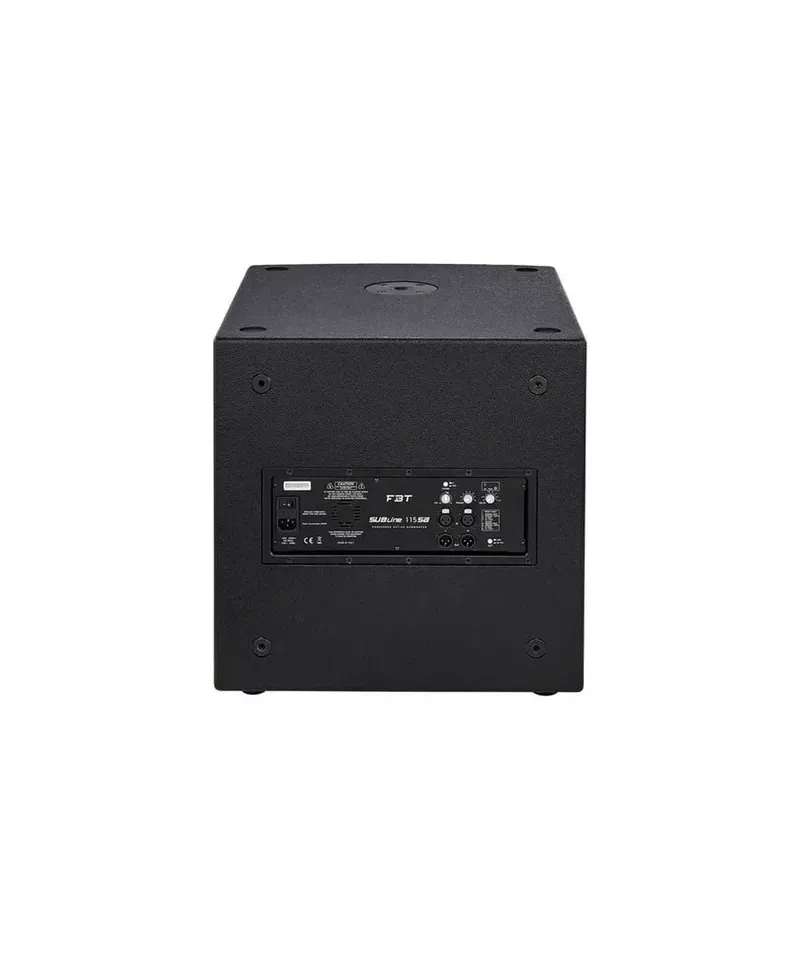

• Control panel with IN / OUT XLR stereo, volume, EQ Preset, Delay 8 Step 0.25m / 3.5m, phase inversion 0/180, 3 LED status indicators
• Scratch resistant cabinet in 15mm birch multilayer (0.59 ") with internal reinforcement
• Flange for support Speaker M20 (20mm) and two ergonomic aluminum handles FBT
• Built-in LF / HF amplifier: 700W RMS
• Built-in LF / HF amplifier: 1400W (peak)
• Frequency response: 38hz - 140hz, -6db
• Maximum SPL cont / peak: 132/135db Half-space
• Dispersion: Omnidirectional HXV
• Input impedance: 22 kohm
• Crossover frequency: 90Hz or 140Hz
• Input connector: XLR stereo with loop, HP out
• Power cable: 19,7m
• Size: 500 x h517 x 570mm
• Weight: 27,9kg
