Active subwoofer

SOUNDSATION, presents, 15a

The Hyper Bass series the result of years of experience acquired by Soundsation in the Portable Sound Systems market. These active subwoofers are equipped with 12 ", 15" or 18 "high excursion woofers. Sturdy and elegant cabinets in birch with FULL-Metal grille and sound-absorbing material, ensure a punch and a high quality sound as well as a captivating and modern design. Equipped with class D and switching amplifiers, offer high power up to 1200W and great efficiency. All models are crossed with cross-Over active and inputs / outputs / balanced link connections. Equipped with a hole for M20 stand, 2 or 4 handles (12 "or 15/18"), preparation for 4 routes on models 15-18 "They represent an excellent solution of amplification on the road.

• Active Bass Subwoofer-reflex
• 15 "woofer
• 1200W Class D Amplifier
• Integrated active crossover
• Balanced XLR Line Line Inputs
• XLR L / R filtered and balanced outputs, balanced XLR Link outputs
• Controls: Sub Level, 80-120Hz Crossover Switch, 0-180 phase, Shape Switch, Ground Lift On-Off
• RMS, Overload and Thermal Protections
• Cabinet in black painted birch mutulla
• 2 side handles

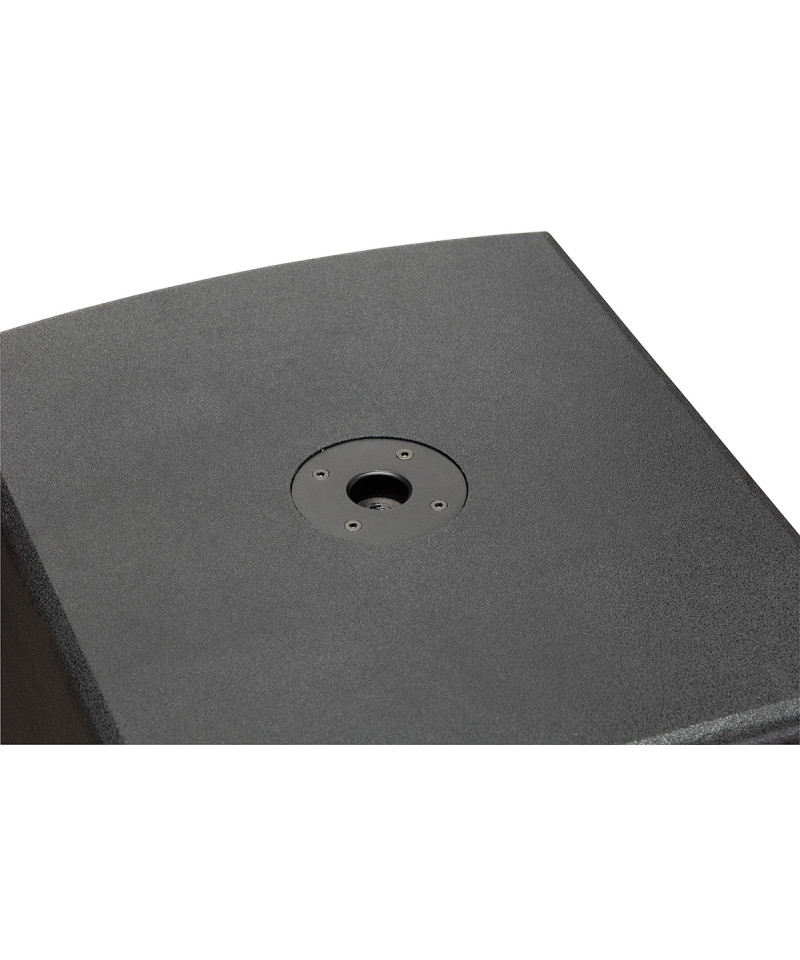

• Hole for M20 type stand to reduce vibrations
• Predisposition for 4 routes (not included)
• Max SPL (PEAK): 124db
• Crossover frequency: 120 Hz (24dB / oct.)
• Frequency response [- 10dB]: From 35 Hz to 150 Hz
• Frequency response [- 3dB]: From 40 Hz to 120 Hz
• LEDs: Power supply (green), signal (green) / limit (red) Power supply: 230Vac - 50 Hz
• Minimum absorption: 750w
• Power connector: VDE WITH T5AL-250V Fuse
• Dimensions (LXAXP): 520 x 670 x 625 mm
• Weight: 29 kg
