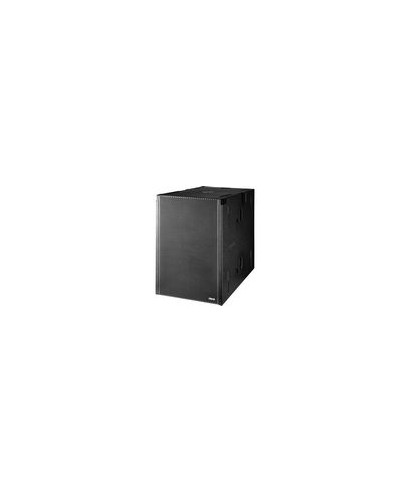

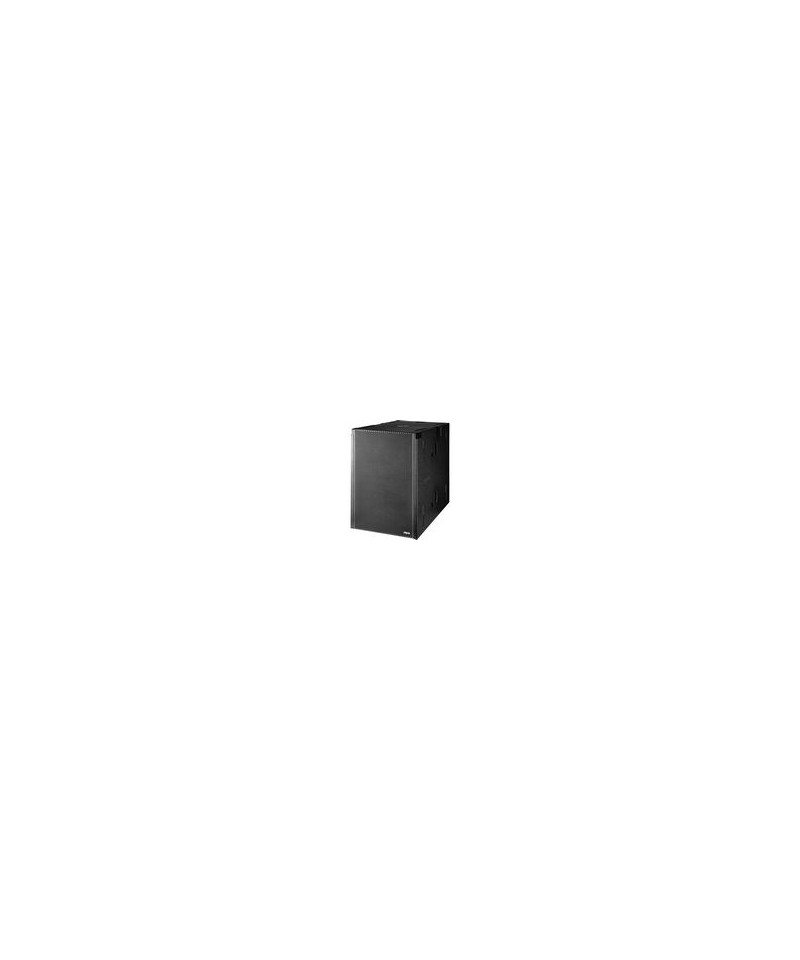

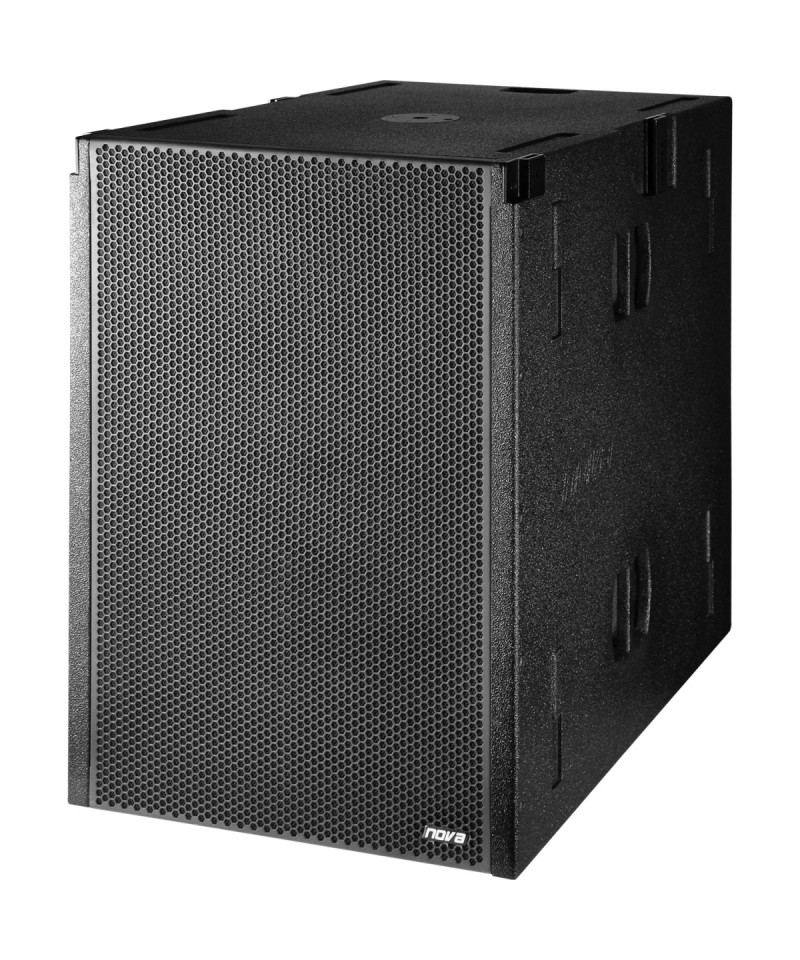

The E318SUB system is a subwoofer with a rectangular chassis suitable for both fixed installation and mobile use. The subwoofer is equipped with a high-performance 18 "speaker (4" voice coil), characterized by hornloaded with a long-run effect. The integrated locking hardware can be used for a quick and safe connection with all other elite series models in stack applications without any adapter or additional frame. The Elite El10, EL15, EH10, EH15 and E15Sub models can be stacked, fixed and inclined (negative / positive + /- 3 °) To ensure perfect alignment of high average frequencies of the speaker. The base of the integrated tripod (M20) allows the use of a rod for universal and flexible use. The chassis is built with 15mm of birch and covered with a black polycoat © finish. The cabinet includes 4 handles and a front grille with a foam support of transparent coal. Two Speakon connectors (NL4) are mounted on the back side of the frame for the input signal (input) and the signal connection (link). The power of the 18SUB IS 1000W (RMS), the impedance is 8 OHMS.

Features

• Woofer 1 X 18 "high performance (4 voice coil)
• Hornloaded subwoofer for long-run effect
• Very high SPL (135 db SPL Max. / 104 dB 1W / 1M)
• Passive subwoofer operation
• "Quick Lock" integrated hardware
• Tripod base (M20)
• Finish NOVA Polycoat ©
• The E18SUB speaker can be driven both through the series of amplifiers NOVA X or the DXP series with a digital processor. The speaker also works with other professional amplifiers with a maximum output power of 1000W (RMS) on 8 ohms.

Technical specifications

• System type: 18 ", Subwoofer, Horn-loaded
• Frequency range (-10DB): 35 Hz - 250 Hz
• I544i
• Cover pattern: Omni
• HF Horn: N / A
• Crossover mode: Active
• Crossover frequency: n / a
• Nominal power (Continue ** / Program / Peak) Amplifier Power: Passive: 1.000 W / 2,000 W / 4,000 WSPL Maximum ***: 135dB peak SPL
• System sensitivity (1W / 1M): 104dB SPL
• LF driver: 1 x NOVA 18 / 1000el, 4 voice coil woofer
• LF Nominal impedance: 8ohm (active)
• MF Driver: N / A
• MF Nominal impedance: n / a
• Driver HF: N / A
• HF Nominal impedance: N / A
• Active Tunings: External Signal Processing
• Cabinet: 15mm multilayer subwoofer in birch
