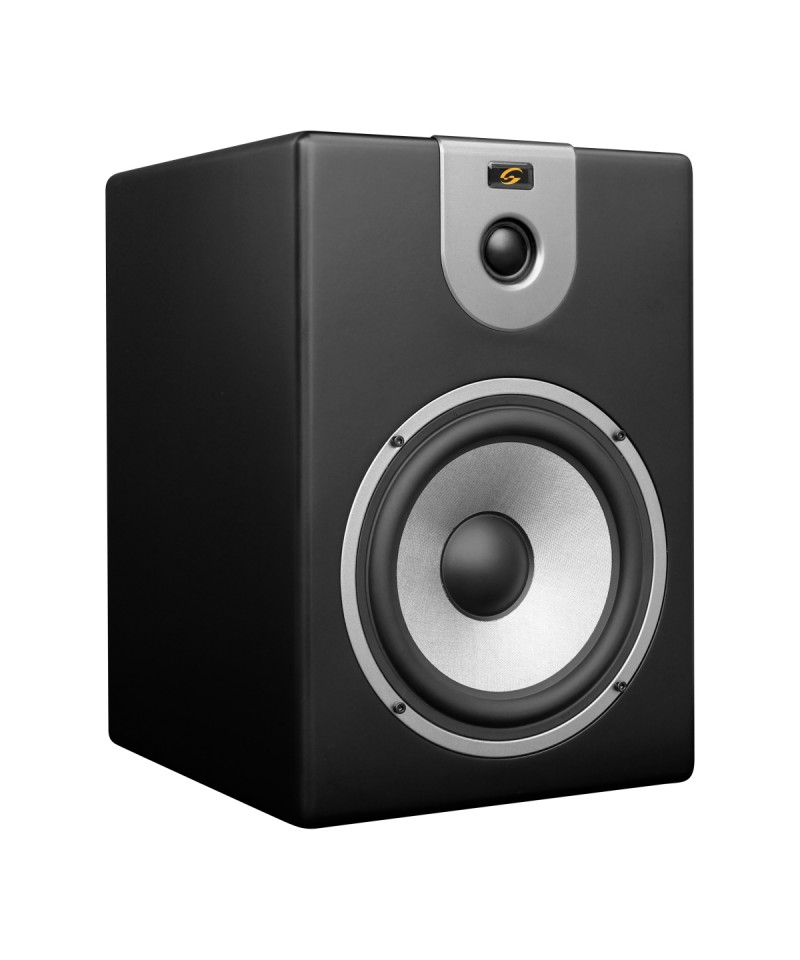

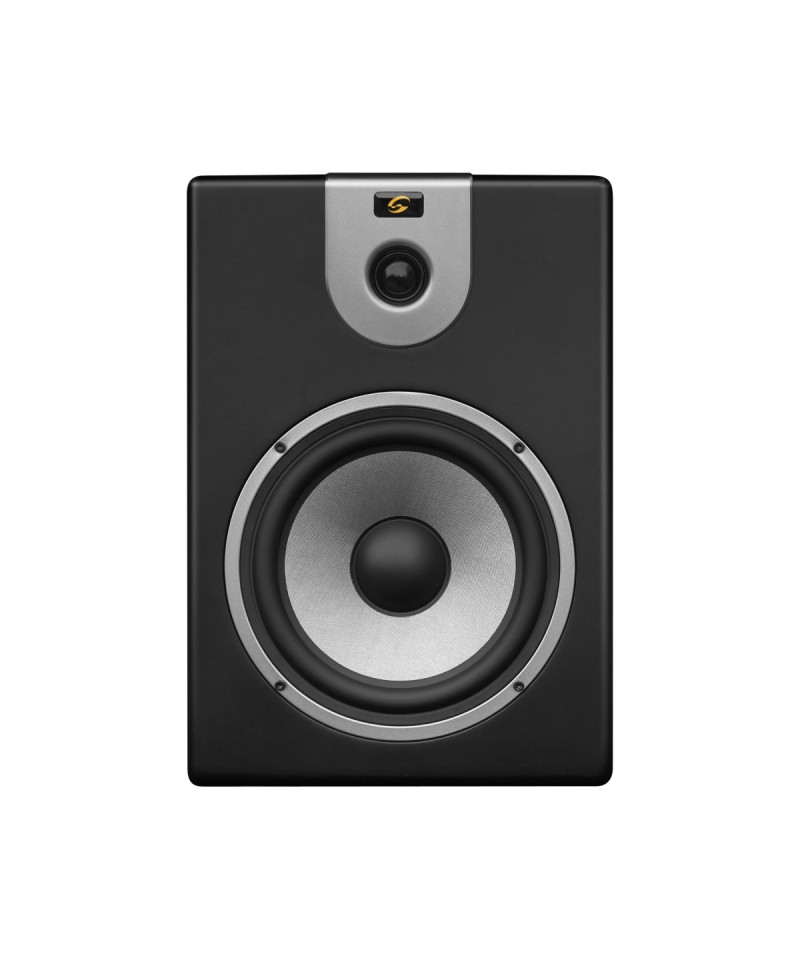

The new CLARITY monitor study line is an optimal solution for both home recording and for the study. The elegant design and technological implementation make these monitors ideal for a high-level listening thanks to the ultra frequency response-Linear as well as the possibility to adjust the filter passes-Alto thus avoiding embathing in annoying resonance problems. The use of latest generation electrodynamic units guarantee an excellent unit performance at the simplicity of use thanks to the wide selection of inputs positioned in the rear panel (XLR, TRS, RCA). The range consists of Clarity 5 (Woofer Drive 5 ") and Clarity 8 (Woofer Drive 8") both available in "Black Studio Satin" and "White Studio Gloss" finishes.

Features

• Power: 180 Watts
• 8 "Woven Custom Glass Aramid Composite Cone Woofer
• BI system-180 Watt RMS amplified with 18DB / octave filter.
• 1"High Frequency Neo Soft Dome Tweeter with Ferrofluid
• Ultrol-grain response from 40Hz-20khz
• 4 levels selectable for high frequencies ( -2db, -1DB, 0, + 1DB)
• Optimal solution for a wide range of use including the possibility of coupling a sub-Woofer
• Fully screen electronics in order to avoid possible electromagnetic interference

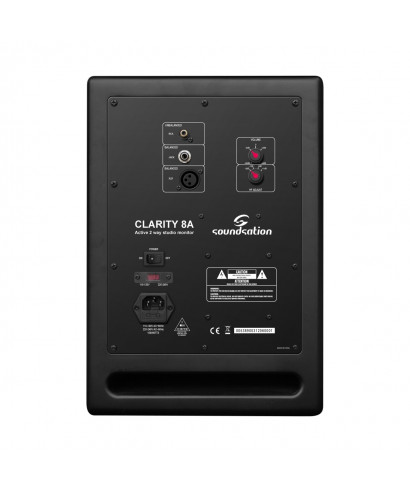

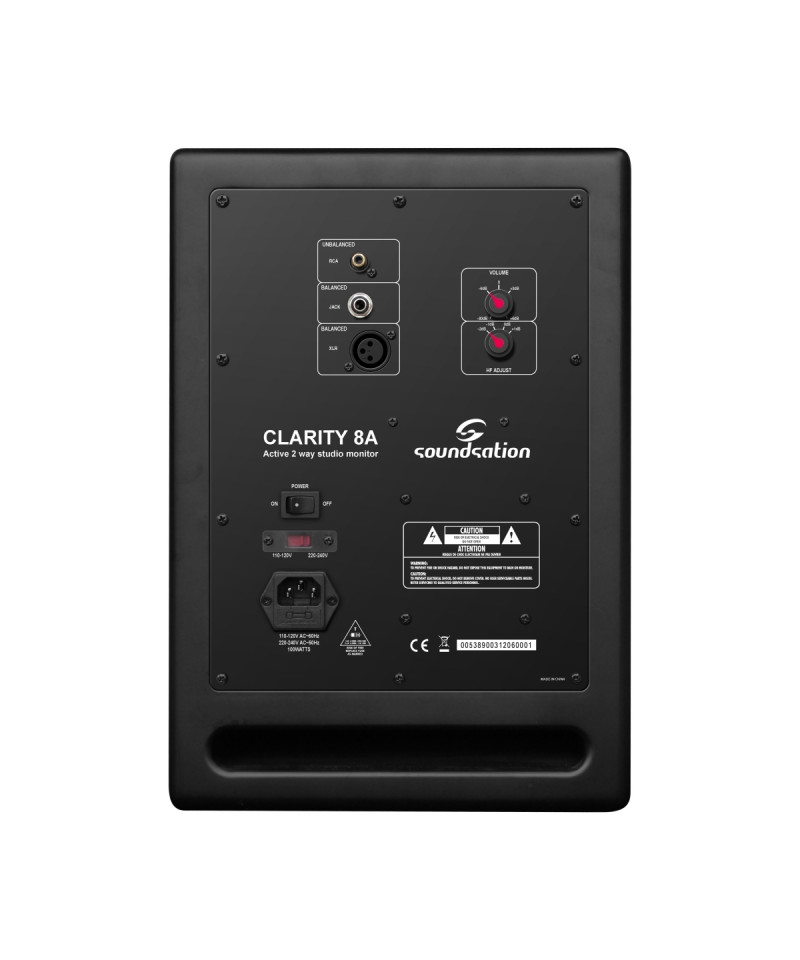

• COMPLETE ENTRODY OF INPUTS: Balanced XLR, Jack 1/ 4 "TRS and RCA unbalanced
• Finishing "Studio Black Satin"

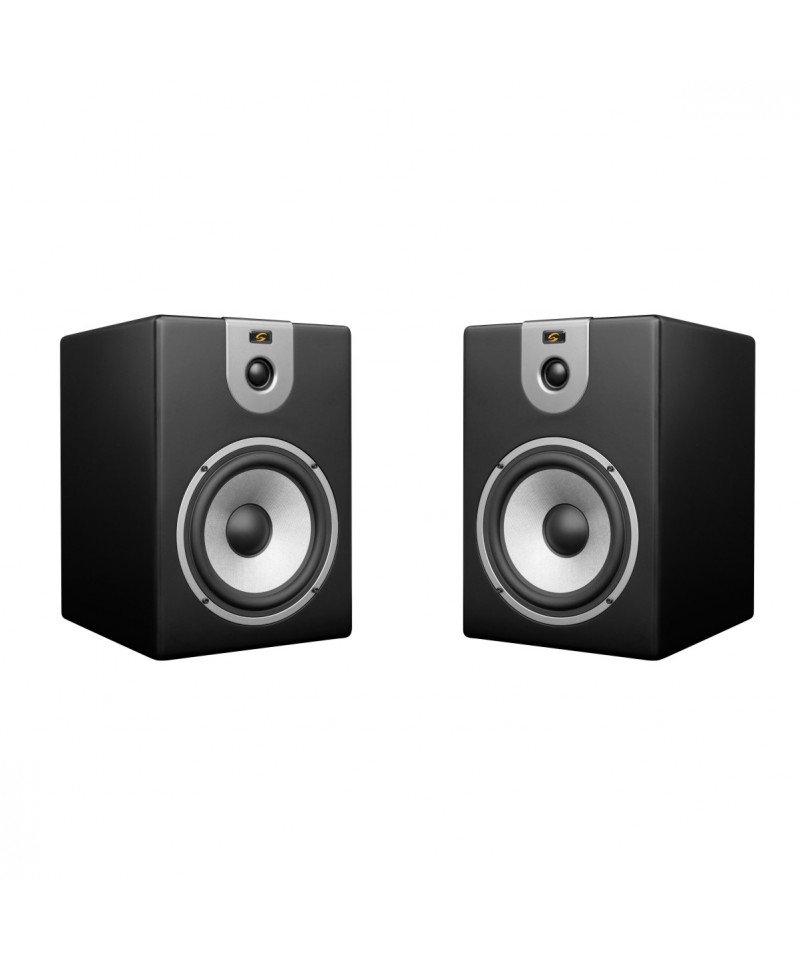

• The package contains: 2 x CLARITY 8A study case, power cables, user manual

Technical specifications

• Woofer Drive: 8 "Aramid Glass Fiber
• Maximum power (HF / LF) RMS 15W / 75W
• N775n
• Total efficiency:> 80%
• Frequency response: 40Hz-20khz
• Variable crossover: 2,4KHz
• Passabasso filter: 35Hz
• Distortion: <1%Rapporto Signal / noise:> 90db
• Adjustable HF filter: -2 /-1/ 0 + / + 1db
• Balanced input impedance: 10K Ohm
• Impedance of unbalanced inputs: 10k ohm
• Operating temperature: 65 ° C
• RCA entry sensitivity: 250mV
• Sensitivity Inputs TRS / XLR: 400MV
• Power supply: AC 115 / 230V - 50/60 Hz
• Dimensions (width-Depth-Height): 265 x 305 x 380mm
• Net weight: 10 kg

Manual / Product Sheet

Annex download
