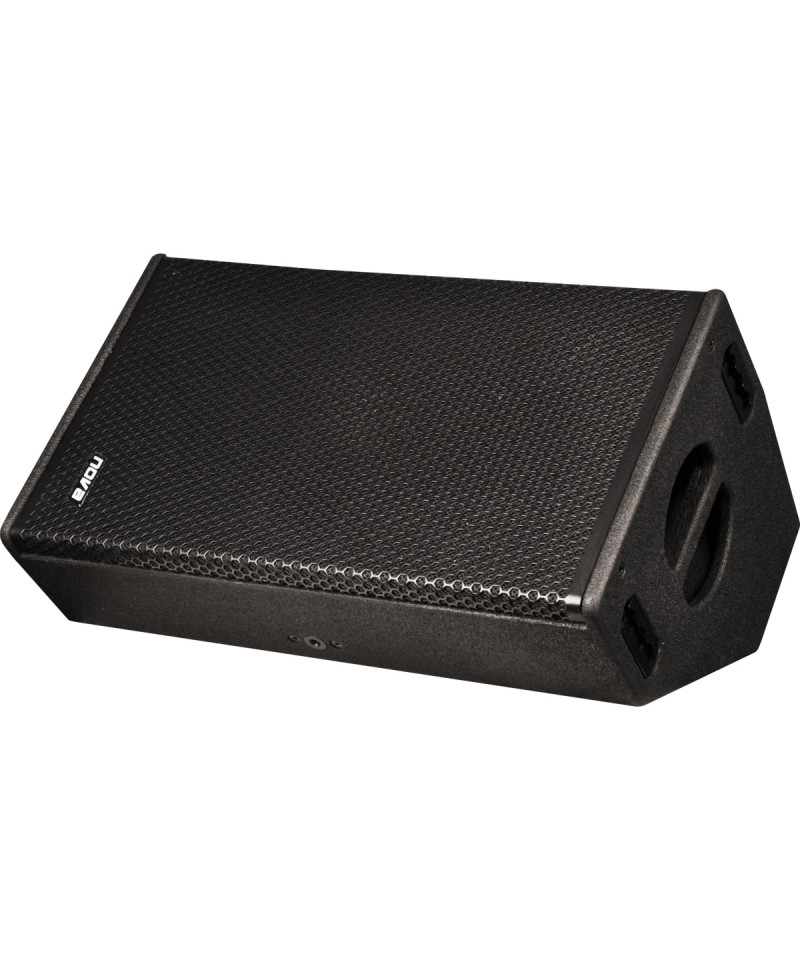

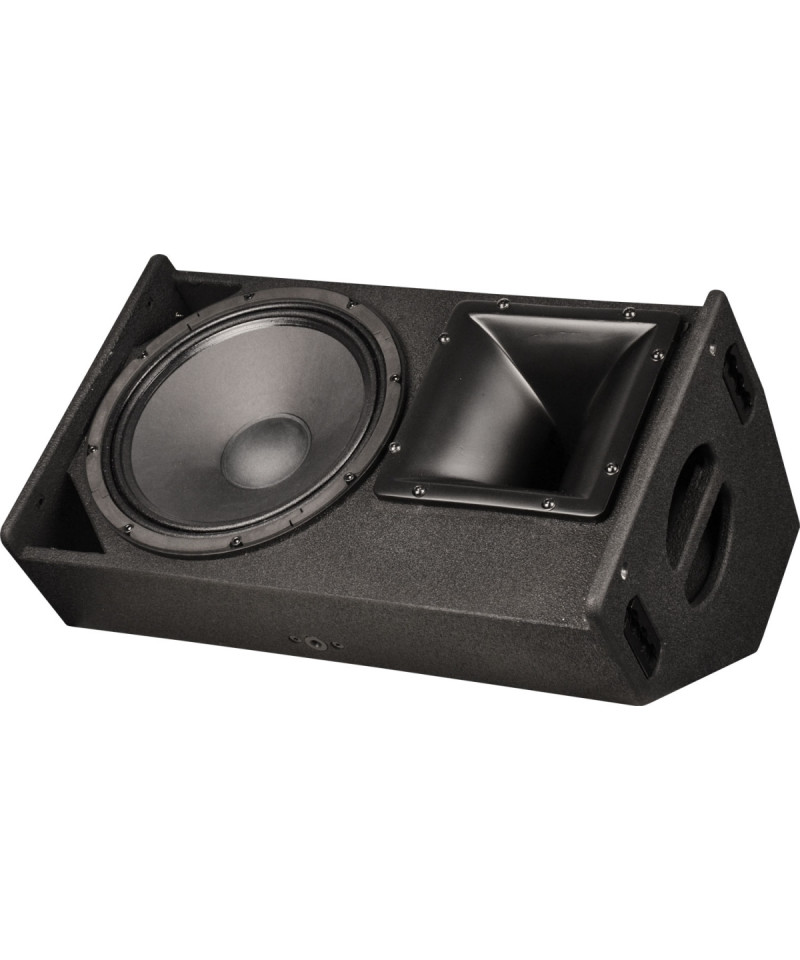

VS12M is a two-way high-performance two-way monitor stage, ideal for fixed installations or stage monitoring. The trapezoidal cabinet is equipped with a 2.5 "HF coil mounted on a fiberglass trumpet integrated with a nominal cover is 60 ° x 40 ° (H X V). The MF / LF frequency range is covered by a Speaker 12". The Integrated Ancra 3 system (3 anchor points) allows the use of the suspended speaker by means of NFS eyelets 3. The 35mm adapter, integrated into the speaker, allows the VS10M to be used on a Northern Star. Very flexible, ideal for speech and musical applications as stage monitor, as a Fullrange Stand system-Alone or MF / HF speaker in more advanced amplification systems. The cabinet, built in 15mm birch and covered with black finish NOVA Polycoat ©, is equipped with a grip handle and front grille in metal covered in coal foam. Two Speakon connectors (NL4) are mounted on the back side of the frame for the input signal (input) and signal connection (link). The power of the VS12M is 300W (RMS) on 8 ohms.

Features

• HF compression driver with 2,5 "coil
• Compact design
• Nominal coverage 60 ° x 40 °
• Fullrange passive
• 35mm integrated metal flange for stand
• Ergonomic handle
• HF Horn (rotatable) in fiberglass
• 3 Ancra 3-point anchor system for flying applications
• Finish NOVA Polycoat ©
• The VS12M Monitor Stage can be piloted with series power finals NOVA X or DXP with or without a digital processor. The diffuser can also be piloted by other professional amplifiers with a maximum output power of 300W to 8ohm.

Technical specifications

• Type of system: 12 "two-way, bass-Reflex, Monitor Stage
• Frequency range (-10DB): 50Hz-20khz
• N930n
• Cover pattern: nominal 60 ° x 40 °
• HF Horn: rotatable glass fiber trumpet
• Crossover mode: Passive
• Crossover frequency: 1, 6 kHz
• Nominal power (Continue ** / Program / Peak) Passive: 300W - 600w - 1200W BI-AMPED LF: N / A (Passive) BI-Amped MF: N / A (passive) BI-Amped HF: N / A (passive) Maximum SPL ***: 125db peak SPL
• System sensitivity (1W / 1M): 100dB SPL
• LF driver: 1 x NOVA 12 / 300vs
• LF Nominal impedance: 8ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x 1 x NOVA T1501VS driver with 2.5 "compression coil
• HF Nominal impedance: 8ohm (passive)
• Active tunings: N / A (passive)
• Cabinet: 15mm multilayer
