Direct Passive Box 8 channels

RADIAL presents Pro D8

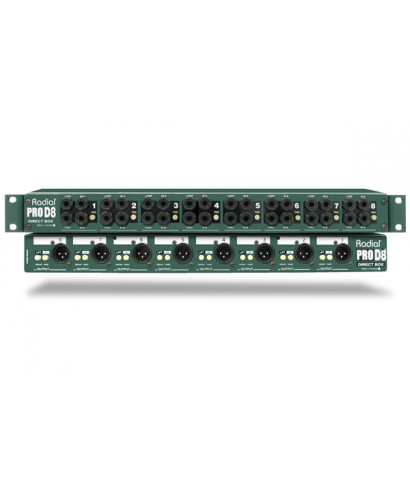

The PROD8 a 19 "high-density direct box to 8-channel rack mounting, specifically designed to interface keyboards and musical bases pre-Register to the PA system, with redundant inputs for the back-Up in live performance. The PROD8 entrance panel equipped with two inputs of A-B "per channel for the main and back entrances-up, throughput for personal monitoring and a loop effects that allows both inputs to-B to share the same effects for each channel. The output panel has an XLR connector, an input selector -15db and "Ground Lift Witch". A polarit reversal switch at 180 mounted internally and calibrated in the factory with the 2 hot pin. Fully passive, the PROD8 employs eight radial transformers that are 20Hz linear to 18kHz and able to withstand highly dynamic levels such as digital samplers and drum machines without batting eyelash. To reduce interference from external magnetic fields, the transformers are equipped with a "MU shield-metal-"External" nickel reducing the phase distortion to a minimum.

• Size: 48.3 x 15,875 x 4.45 cm
• Weight: 3.26 kg

Prod8 connections

• Front: Parallel 1/ 4 "A & B IN, THRU, TRS INSERT JACK FOR EACH CHANNEL
• Rear: Balanced XLR, Ground Lift, 180 Phase for Each Channel

Applications

• By-88 / ADAT 8-CH Performance of
• Live Touring, Recording, Rentals
• Permanent Installs, Theatres, Halls
