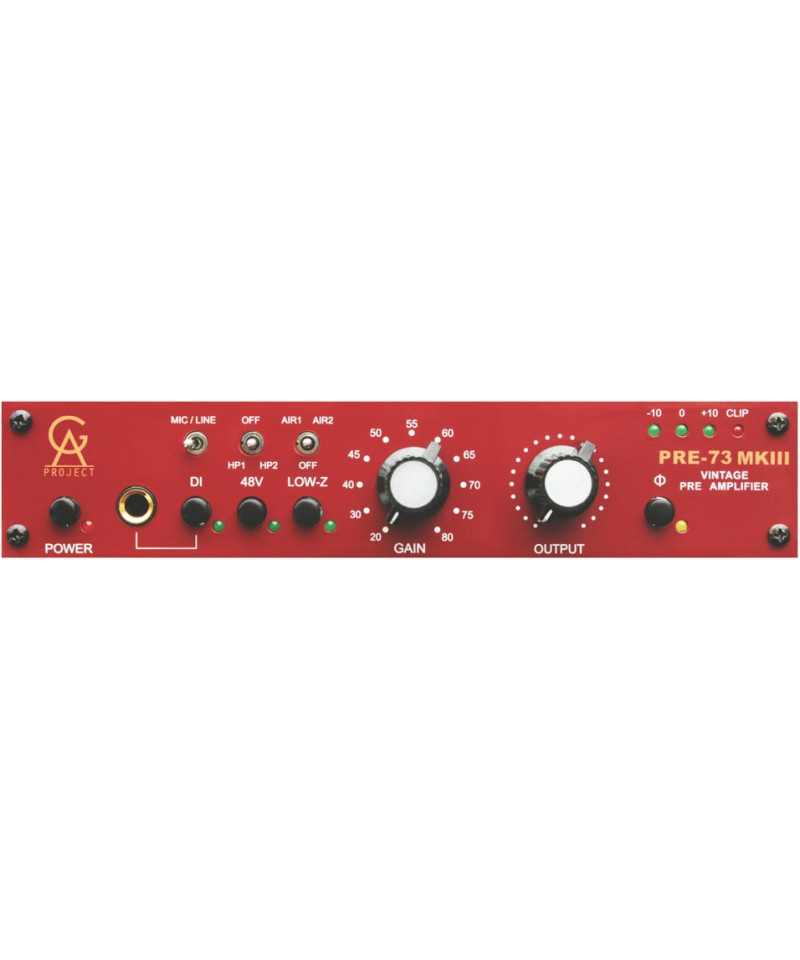

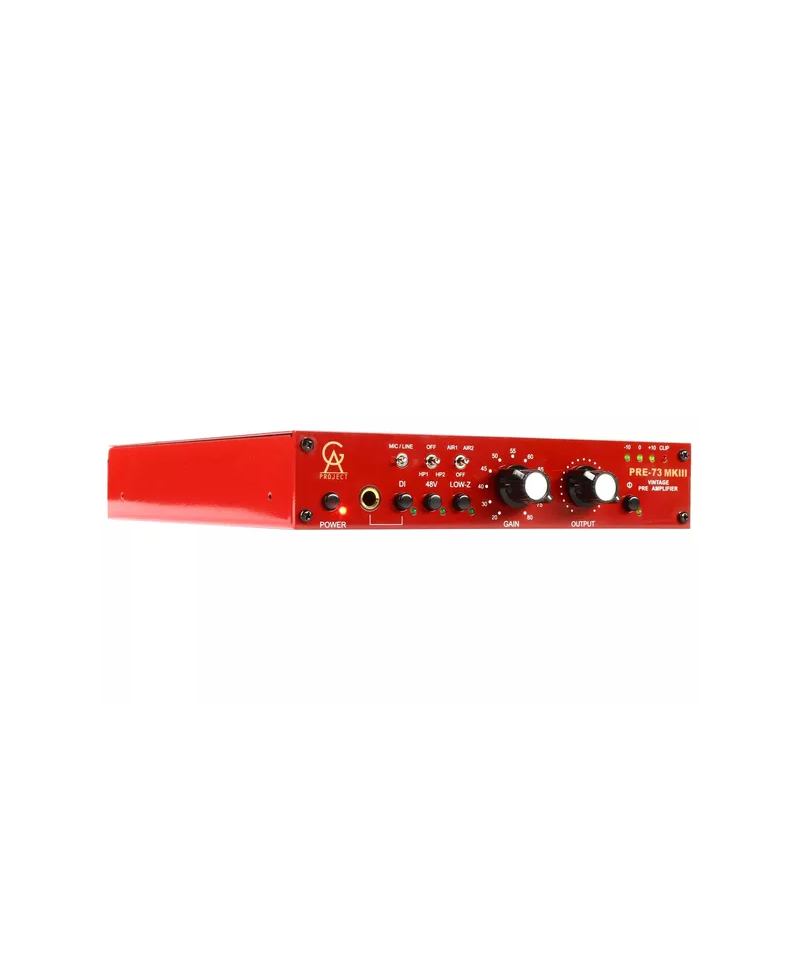

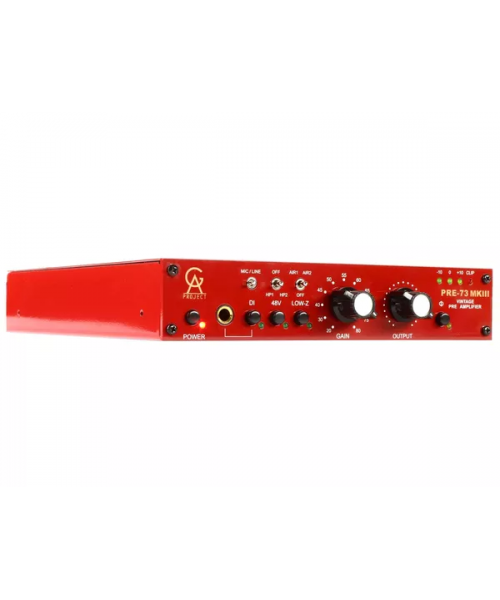

Golden Age Project pre-73 Mkiii
Microphone preamplifier / mono tools
Golden Age Project presents Pre-73 MKII
Pre-73 MKIII A convenient high quality preamplifier to a channel, built exclusively with discreet components and equipped with two independent transformers for entry and exit. Equipped with a circuit very similar to the preamplification section of the famous pres / EQ snow 1073, pre-73 Mkiii can reproduce the hot vintage sounds, very sought after today, which make it records of voices and tools extremely pleasant to listen. Pre-73 MKIII Perfect for any sound source, no matter is a microphone, a synthesizer, a guitar or an electric bass. This preamplifier offers an 80dB gain on the microphone and 30dB input on the line and high-impedance input for instruments. The impedance of the adjustable microphone input at 300 or 1200ohm, making pre-73 MKIII perfectly matched with most microphones. There are also two phase inversion buttons and phantom power supply, and a LED level indicator. The output level control allows precise gain adjustment, with the possibility to load the main amplification stage to give greater character to the sound without causing signal distortions. Compared to the previous version, pre-73 MKIII includes two selectable high-pass filters (40Hz and 170Hz), the Air Mode switch that adds a 3DB or 6DB Boost to 3KHz, and the preparation for the assembly of a transformer Carnhill.
Golden Age Project presents Pre-73 MKII
Pre-73 MKIII A convenient high quality preamplifier to a channel, built exclusively with discreet components and equipped with two independent transformers for entry and exit. Equipped with a circuit very similar to the preamplification section of the famous pres / EQ snow 1073, pre-73 Mkiii can reproduce the hot vintage sounds, very sought after today, which make it records of voices and tools extremely pleasant to listen. Pre-73 MKIII Perfect for any sound source, no matter is a microphone, a synthesizer, a guitar or an electric bass. This preamplifier offers an 80dB gain on the microphone and 30dB input on the line and high-impedance input for instruments. The impedance of the adjustable microphone input at 300 or 1200ohm, making pre-73 MKIII perfectly matched with most microphones. There are also two phase inversion buttons and phantom power supply, and a LED level indicator. The output level control allows precise gain adjustment, with the possibility to load the main amplification stage to give greater character to the sound without causing signal distortions. Compared to the previous version, pre-73 MKIII includes two selectable high-pass filters (40Hz and 170Hz), the Air Mode switch that adds a 3DB or 6DB Boost to 3KHz, and the preparation for the assembly of a transformer Carnhill.
- Discrete electronics in vintage style
- MIC / LINE switch
- Gain in MAD mode: 80db max
- Gain Range in MIC: 20 / 80DB
- Gain Range in Modalit Line: 30db
- Preparation for mounting a Carnhill transformer
- Air switch that adds a slight boost over 10khz with 3DB or 6DB peaks to 30 kHz
- High Pass filter 6db / octave selectable with cutting frequency at 40Hz (HP1) and 170Hz (HP2)
- Independent transformers for input and output
- Use of tantalum capacitors
- Form of the adjustable microphone input (1200 ohm or 300 ohms)
- Input impedance line: 10 kohm
- Phase inversion
- Phantom Power 48V
- Output knob for further control over the output level
- MIC / LINE input in Combo XLR / TRS format
- Jack entrance from 1/ 4 "high impedance for tools
- Insert in Jack format from 1/ 4 "
- Output available in XLR and TRS format
- LED level indicator
- 600 ohm output terminator
- HIGH PASS FILTER
- Output attenuator
- Robust and resistant construction
- Size: 44.4 x 241.3 mm
