Power final SOUNDSATION Zeus II H-3600qx
Pagamento a rate con

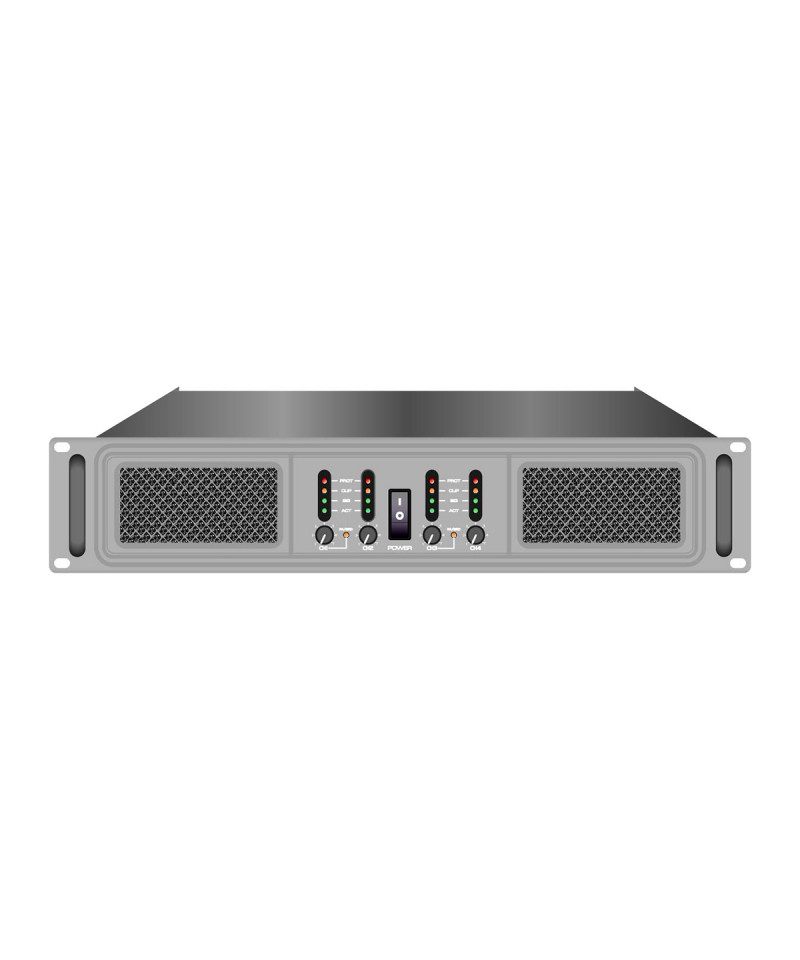

SOUNDSATION Presents Power final SOUNDSATION Zeus II H-3600qx
The Zeus II H series-QX of ideal amplifiers for multi-channel professional applications for powers between 400W and 800W RMS @ 8ohm per channel. It is a 4-channel line in the classroom-H (H L'H-2600QX in class-AB) with excellent sound and maximum reliability. Possible Luso in stereo, parallel and bridge mode (CH1-2 / CH3-4). Each channel integrates a cross-Over with filter passes-Low / high for use with both full systems-Range that subwoofer, without the need for external processors. The protection system includes, in addition to the signal limiter, delayed touch, the continuous offset recognition, thermal protection, and current limitation. The extremely efficient cooling system and controls fan speed, to ensure an excellent containment of noise. Zeus II H amplifiers-QX are therefore absolutely stable, reliable in any situation of use and offer a quality relationship-Really interesting price.
The Zeus II H series-QX of ideal amplifiers for multi-channel professional applications for powers between 400W and 800W RMS @ 8ohm per channel. It is a 4-channel line in the classroom-H (H L'H-2600QX in class-AB) with excellent sound and maximum reliability. Possible Luso in stereo, parallel and bridge mode (CH1-2 / CH3-4). Each channel integrates a cross-Over with filter passes-Low / high for use with both full systems-Range that subwoofer, without the need for external processors. The protection system includes, in addition to the signal limiter, delayed touch, the continuous offset recognition, thermal protection, and current limitation. The extremely efficient cooling system and controls fan speed, to ensure an excellent containment of noise. Zeus II H amplifiers-QX are therefore absolutely stable, reliable in any situation of use and offer a quality relationship-Really interesting price.
Features
- 4 x 600w @ 8ohm power in 2U standard 19 racks
- Maximum reliability thanks to the quality of components and consolidated class H technology
- Architecture 4-2U rack channels, with filter passes-Low adjustable for each channel
- Variable speed fans for silent and efficient cooling
- Protection system that includes signal limitation, delayed ignition, continuous offset recognition, thermal protection, and current limitation
Technical specifications
- Output stereo power (RMS): 4x600w @ 8ohm, 4x900w @ 4ohm
- Power in Modalit Bridge (RMS): 2x1900W @ 8ohm
- E429e
- Input impedance> 10kohm balanced or not balanced
- Frequency response (1W, 8ohm): 20Hz-20khz +1/-1db
- THD + no: (20hz-20khz For1WTHD + N) <0,1%
- Damping factor: 300
- Crosstalk:> 70 signal / noise port:> 100db
- Amplifier class: Ab
- Power requirements: 220V 50 / 60Hz

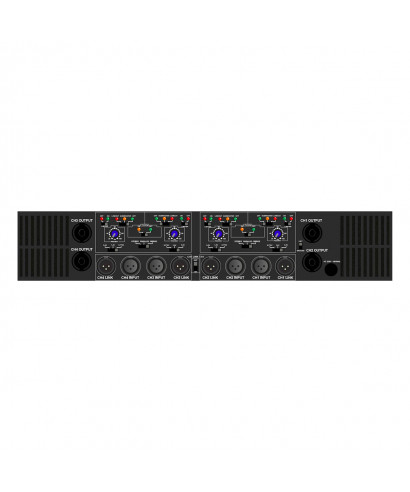

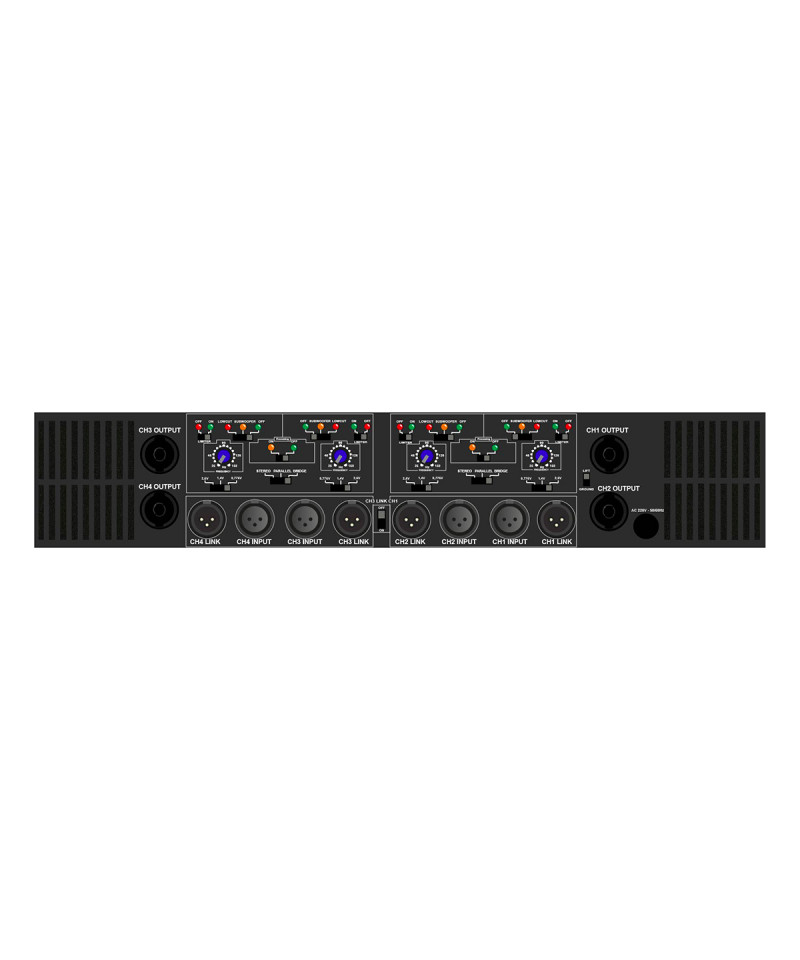

- Input connectors: XLR female
- Output connectors: Speakon female
- Link connectors: XLR male
- Cooling: 2 fans with daria flow from the front panel to the rear panel
- Variable fan speed, based on temperature
- Dimensions (LXAXP): 483 x 89 x 463.5 mm
- Packaging dimensions (LXAXP): 570 x 155 x 580 mm
