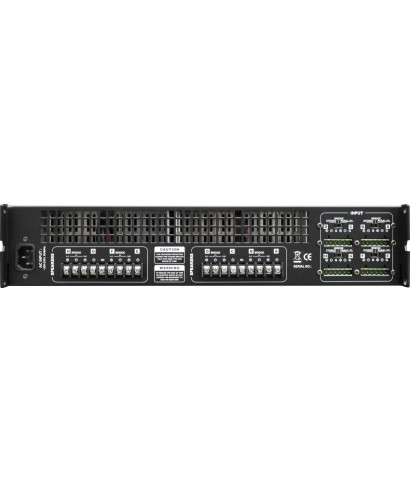

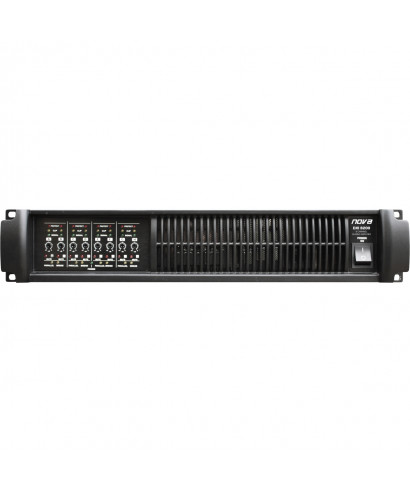

The DXI8200 is a 8-channel power finish in a compact format of 2 HU (rack unit). The front panel shows 8 GAIN controls for easy access, 8 switches-Switch and the main switch. The LED display shots on the status of the amplifiers. The back shows 8 inputs and 8 output connectors-connectors. The entry sensitivity (gain) is 32 db each channel. The outputs offer Barrier Strip connectors. The DXI8200 can also be used in Half mode-Bridge (2 x 400 Watt plus 4 x 200 Watt RMS / 4 Ohm). The DXI8200 can be switched to three different operating modes: stereo mode, parallel and bridge. Independent limiters can be activated ?? or deactivated ?? ™. All models are equipped with an insertion delay to protect the connected speakers.

Features

• 8-channel power amplifier (8 x 200 Watt RMS)
• SMPS (Switch Mode Power Supply / Only 8 Kg)
• Compact design and lightweight construction
• Clip of independent limiters
• Class D class for high efficiency
• Euroblock input connectors
• Barrier Strip outlet connectors
• Complete package of safety circuits
• Security circuits: short circuit protection, overheating protection, HF protection, DC protection

Technical specifications

• 8 ohm per channel: 130W (x 8)
• 4 Ohm per channel: 200W (x 8)
• N923n
• THD + N at 1 KHZ HALF POWER @ 4 OHMS: <0.5%
• Damping factor: 600W
• Separation of 10 kHz channels: <60DB
• Entrance impedance: 40k ohms bal. / 20 k ohms bal.
• Common fashion rejection: 70dbeck control: 8
• Clip/Indicatori di Protezione: Led
• Output height indicators: LED
• Input connectors: EuroBlock
• Connection connectors: N / A
• Mode selector: stereo / brigde / parallel
• End of travel: N / A
• Output connectors: Barrier Strip (connectors included)
• Voltage function: 220 - 242 Volts
• Soft Start: Yes
