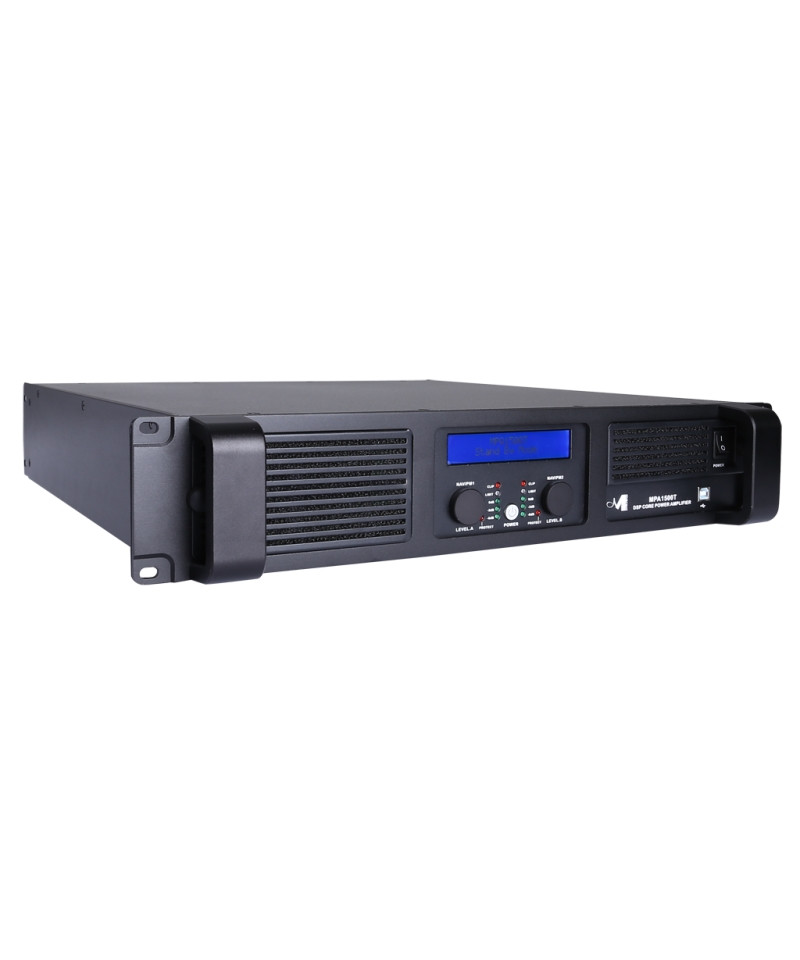

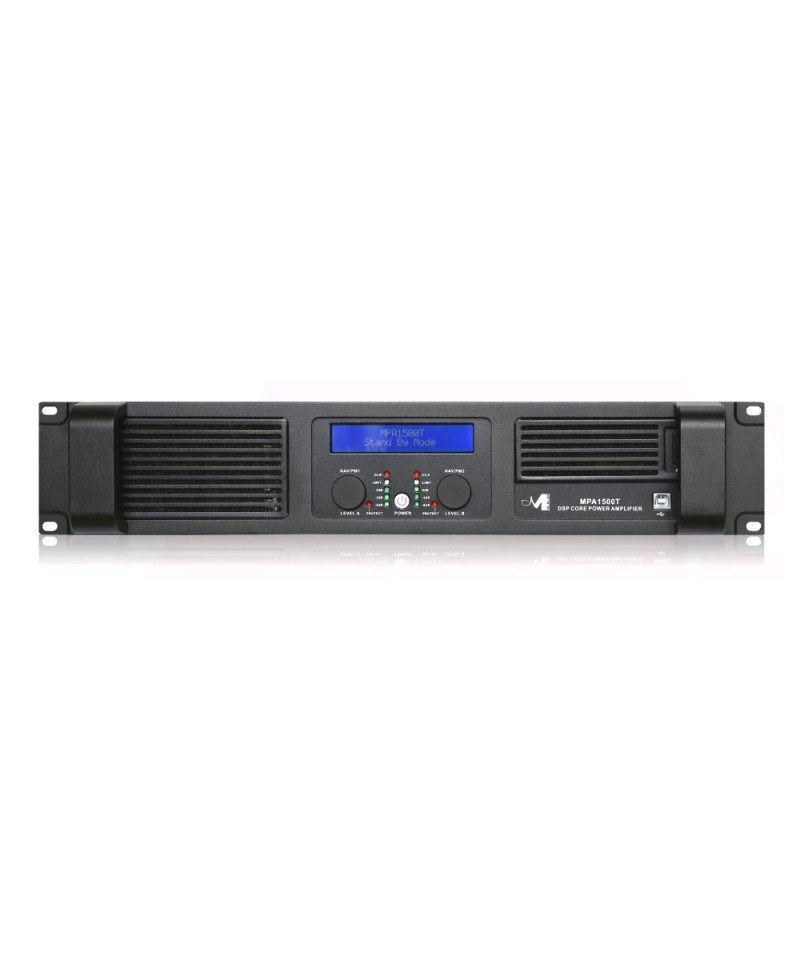

MPA1500T A flexible, powerful and intelligent two-channel power amplifier can provide a total output power of 4600W @ 4 ohms. Designed to meet the most demanding requests for both live and fixed installations, it provides high-value features between here an efficient cooling system, high output power, an integrated DSP processor and USB / Ethernet / M connections-LAN that allow remote monitoring and control via the dedicated PC software.mpa1500t, to power output stages uses a highly efficient switching type power supply. The output stages use the well tested circuit in class H, which allows to obtain high efficiency, low distortion, all equipped with a complete set of circuit protection, in addition to the efficient heat dissipation system and overheating protection Which in turn guarantee the reliability without compromise. Furthermore, the clip / limiter function provides output monitoring to avoid damage to the speakers with a slight reduction in the gain in clip.mpa1500t threshold much more than an amplifier. In fact it includes a powerful and sophisticated 96kHz 24-bit DSP processor in addition to the excellent to 24bit converters. The processor section has 2 channels of crossover filters, parametric EQ both input and output, RMS compressor, Peak limitere, alignment delay and also each input includes an internal pink / white noise generator, everything needed to optimize a system of sound diffusion. All the configuration parameters of DSP functions and limiter settings are accessible both using the front panel controls, which the deducted PC software.

Features

• Outstanding Performance:- High power output: 2 x 2300 w @ 4 ohm- High switch efficiency-Mode Power Supply- Class H output circuits- Complete protection circuits with over-Current, Over / Under-Voltage, DC output and over-temperature- Two XLR connection outputs to be used in the power amplifier guide.- Excellent sound performance with 24bit high-end converters coupled with 96KHz sampling frequency
• Top-Grade DSP Engine:- 5 Parametric equalization bands for each input channel- 5 Parametric equalization bands for each output channel- Each band can be switched to bell, Low / High Shelving selected as 1 and 2 Order, Crossover filters with 6 dB / octave slopes up to 48dB / octave including Butterworth, Bessel, Linkwitz-Riley- Checking the precision dynamic range composed of a peak limiter, limiter clip and a RMS compressor with selectable and variable knee ratio- Adjustable delay time up to 1300 ms per input channel and 41 ms per output channel- Pink / white noise internal generator for each input channel for setting and tuning the sound system
• Direct PC / Network Connection:- USB connector on the front panel for PC direct communications- Ethernet interface and connection M-LAN for system configuration, monitoring and control via remote PC manager software
• Controls: - Front interactive LCD display for access and setting local indicators on the front panel 5-LED per channel -- Simultaneous control up to 32 units via PC software- Up to 32 memorable presets

Technical specifications

• // POWER & AMPLIFIER SECTION // Number of channels: 2
• Output Modes: stereo, parallel-mono and bridge-mono
• I828i
• Output Circuitry: Class H
• THD @ rated power 4ohm (1khz): <0.01%
• Dynamic Range: 105 dB (a-Weighted, AES-17 Filter)
• Frequency response: 20Hz - 20khz 0.5 dB
• Damping Factor:> 200 (8ohm / 1khz Input Signal) Power supplies: Power mode switch
• Operating Range: 115V / 230V - 50/60 Hz (Factory Selection)
• Consumption / current absorption and 230 V thermal dissipation: - ---W / -A / --- BTU / H (IDLE)- --W / -A / --- BTU / H (I / 8 max. Power @ 4ohm)- --W / -A / --- BTU / H (I / 4 max. Power @ 4ohm)
• Protections: Over-Current, Over / Under Voltage, Output DC and Over-Temperatures
• Analog Input: 2 x electronically balanced XLR, + 12db
• Analog Output: 2 x XLR electronically balanced (link)
• INPUT SENSITIITY: 0.775V, 1.2v, 1.6v
• Frequency response (DSP): 20-20khz; -0.5dBu at 20Hz and 20khz
• // DSP & Processing // AD & DA Converters: 1x AK5388 24bit, 2x AK4396 24bit
• DSP Engine: Dream Sam3716, 24bit (date) x 96 Bit (coeff.)
