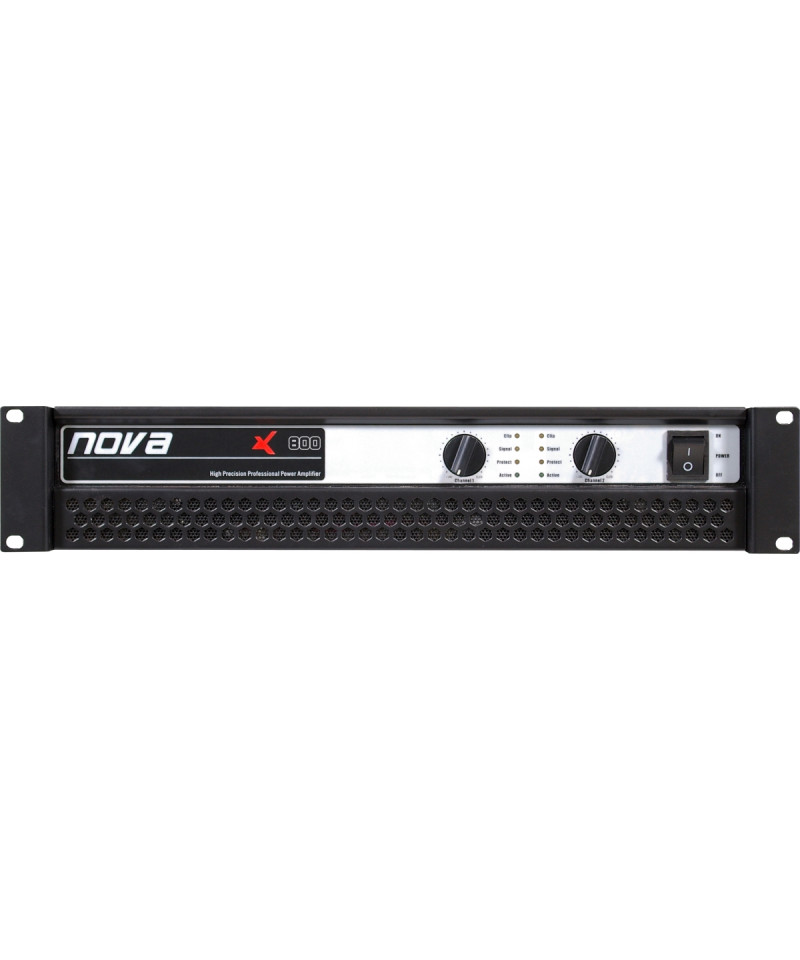

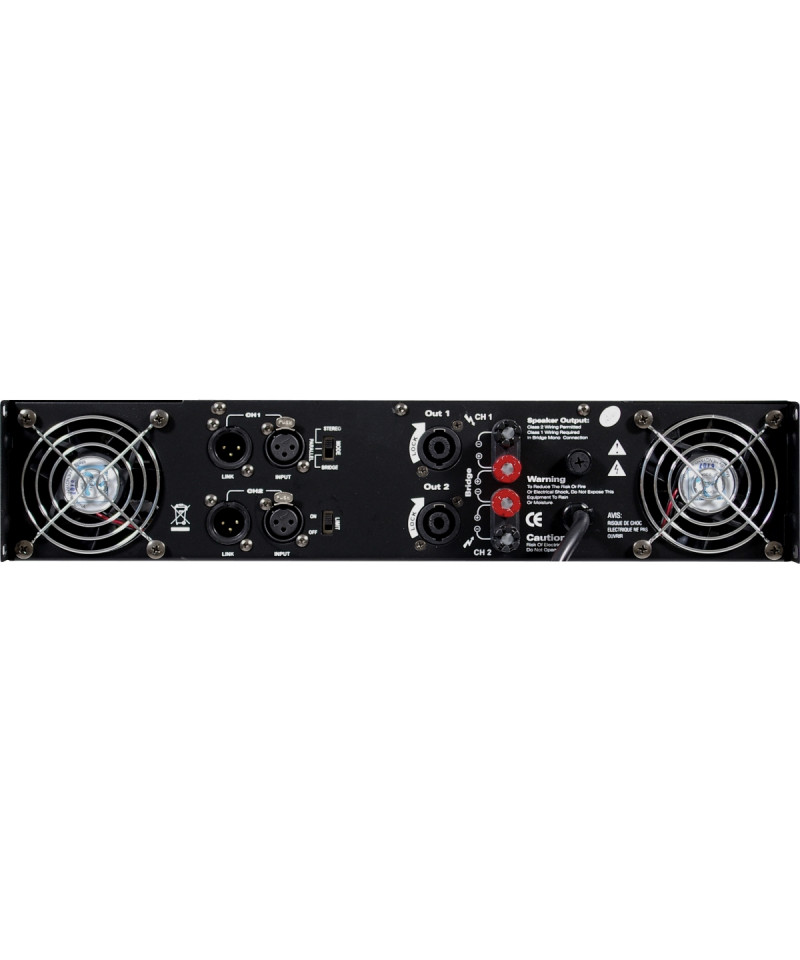

X800 is a two-channel-channel amplifier in class H 2 rack units. The X series offers reliability, timbre cleaning, dynamics: features that all professionals are looking for. The front panel has two gain controls and the main dirtutor. Two LED displays inform the condition of the amplifiers. The back shows 2 XLR inputs and 2 XLR outputs (link). The entry sensitivity (gain) is 32 dB on all models. Speakon © outputs. The Speakon channel connector 1 It is connected with all four poles and offers the output signal of the channel 2 (right) to the feet 2 (+ /-). This allows an efficient 4-pole connection of two-way systems with a single power cable. Bridge output with clamps. X series amplifiers can be switched to three different operating modes: stereo - parallel - bridge. The limiters can be activated or deactivated. All models are equipped with an insertion delay to protect the connected speakers.

Features

• Compact design
• High efficiency fans
• Limiter clip
• Technology in class-Hours
• XLR connectors (with XLR-Link, Neutrik ©)
• Speakon © output connectors (Neutrik ©)
• Complete package of safety circuits
• Guadagned controls mounted on the panelphronyal for easy adjustment
• The EMF DXP protection-Seback: The speakers are a complex and reactive load for an amplifier. In the event of a faulty speaker the energy could be sent to an amplifier being very high and could compromise parts as a transistor of an amplfier without the use of the back EMF (Electro-Motive-Force) protection. All amplifiers NOVA They are equipped with this EMF protection capable of protecting the final.
• The protection of the DXP circuit-Seshort: a short speaker or simply a cable could destroy the amplifier transistors. All the lights NOVA They are equipped with a short-circuit protection.
• DXP overheating protection-If: all ampifiers NOVA They are equipped with transistor sensors and transformers. Due to permanent temperature monitoring the built-in fans ensure correct cooling.
• DXP protection-Sehf: extremely high frequencies could destroy the reels of the connected speakers. All amplifiers NOVA They are equipped with HF protection circuits
• DXP protection-If DC the continuous output current of the amplifiers could destroy the reels of connected speakers. All amplifiers NOVA They are equipped with DC protection circuits, which avoid DC on the outputs of the filters and amplifiers.

Technical specifications

• 8 Ohm per channel: 250W
• 4 Ohm per channel: 400W
• N944n
• 8 Ohm in Bridge: 950W
• 4 Ohm in Bridge: 1050W
• THD A 1 khz e 1 DB BELOW Clipping: 0.05%
• THD AT 100 KHZ AND 1 DB Below Clipping: 0.06%
• THD AT 10 KHZ AND 1 DB Below Clipping: 0.1 %Fattore damping: 1.000 mV (95 dB)
• Separation of 10 kHz channels: 54DB
• Output impedance: 600ohm minimum
• Response speed: 30 V / μs
• Input impedance: 20k ohms bal. / 10k ohms bal.
• Common fashion rejection: 60 dB
• Gain controls: 41 pos. detend
• Clip / indicatori di protezione: Led
• Output level indicators: LED
• Input connectors: Neutrik © XLR Female
