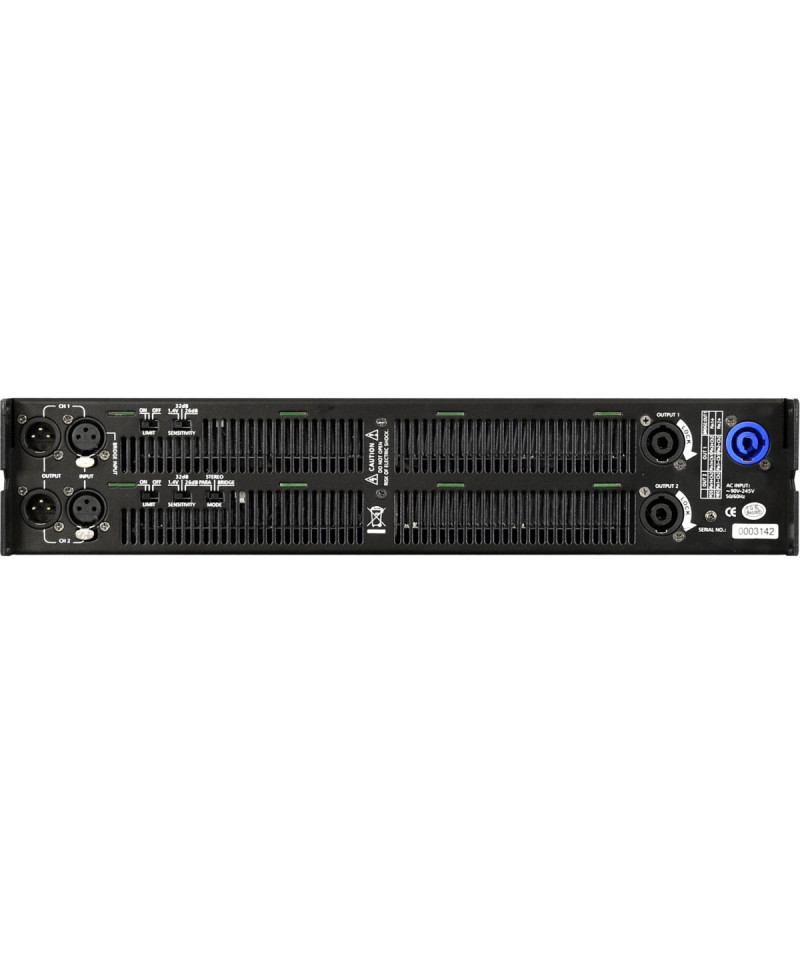

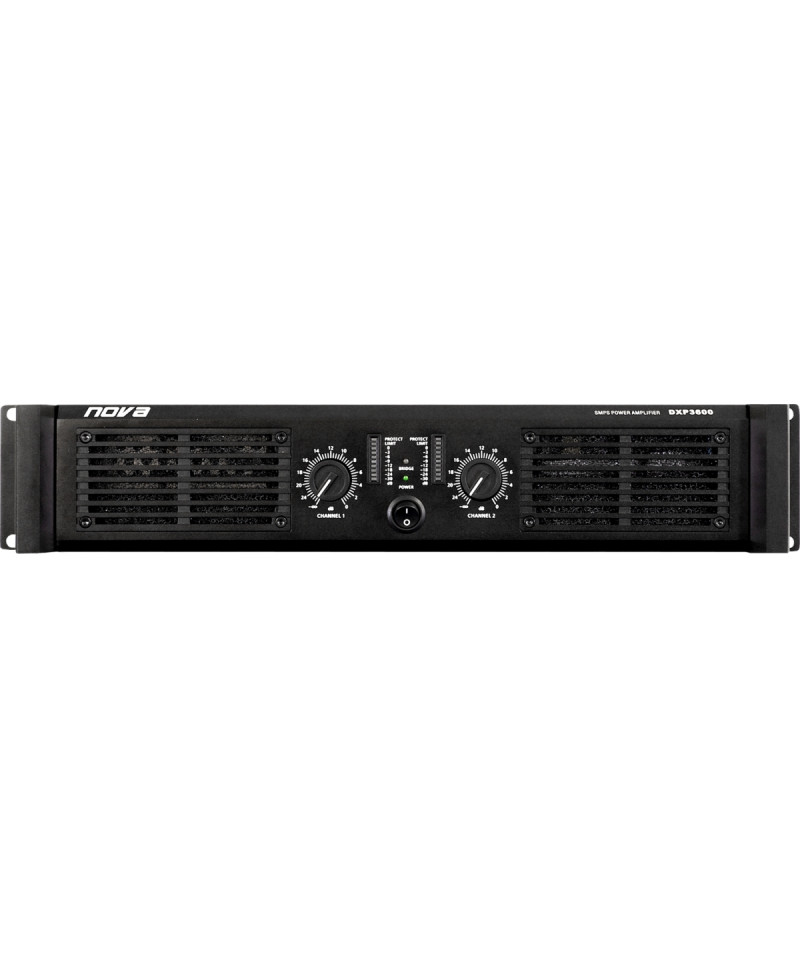

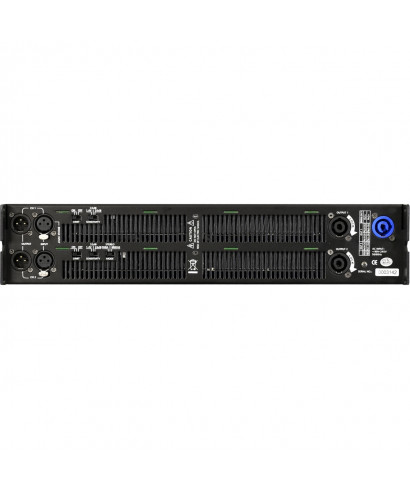

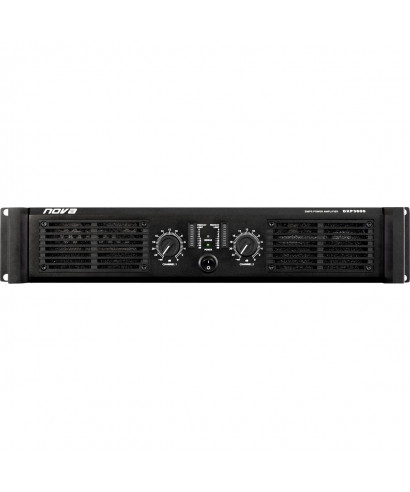

The dxp series power finals are two-channel amplifiers in a compact format 2 rack units, offer clean, reliability and a very dynamic sound characteristics that all professionals are looking for. The front panel shows two gain controls and the main switch. The LED display shots on the status of the amplifiers. The rear part has two XLR input connectors and two XLR output connectors (link). The entry sensitivity (gain) can be switched to the following mode: 1.4 Volt, 32 dB and 26 dB. Two Speakon © outputs are mounted on the back side. The output connector 1 Speakon © is connected to all four poles. This connector offers the channel 2 output signal (right) to the feet 2 (+ / -). This only allows a four-pole connection of two-way speaker systems with a speaker cable. DXP series amplifiers can be switched to three different operating modes: stereo - parallel -bridge. Independent limiters can be activated or deactivated. All models are equipped with an insertion delay to protect the connected speakers.

Features

• SMPS (Switching power supply) with PFC
• Compact design (up to 10,000 W 2 HU)
• Limiter clip
• Technology in class-H (all models)
• XLR connectors (with XLR connectors-link)
• Speakon © output connectors (Neutrik ©)
• Complete package of safety circuits
• Guadagned controls mounted on the panelphronyal for easy adjustment
• The EMF DXP protection-Seback: The speakers are a complex and reactive load for an amplifier. In the event of a faulty speaker the energy could be sent to an amplifier being very high and could compromise parts as a transistor of an amplfier without the use of the back EMF (Electro-Motive-Force) protection. All amplifiers NOVA They are equipped with this EMF protection capable of protecting the final.
• The protection of the DXP circuit-Seshort: a short speaker or simply a cable could destroy the amplifier transistors. All the lights NOVA They are equipped with a short-circuit protection.
• Protection against overheating: all ampifiers NOVA They are equipped with transistor sensors and transformers. Due to permanent temperature monitoring the built-in fans ensure correct cooling.
• DXP protection-Sehf: extremely high frequencies could destroy the reels of the connected speakers. All amplifiers NOVA They are equipped with HF protection circuits
• DXP protection-If DC the continuous output current of the amplifiers could destroy the reels of connected speakers. All amplifiers NOVA They are equipped with DC protection circuits, which avoid DC on the outputs of the filters and amplifiers.

Technical specifications

• 8 Ohm per channel: 1300W
• 4 Ohm per channel: 2300W
• N904n
• 8 Ohm in Bridge: 3900W
• 4 Ohm in Bridge: 4900W
• THD A 1 khz e 1 DB BELOW Clipping: 0.01%
• THD AT 100 KHZ AND 1 DB BELOW Clipping: 0.20%
• THD AT 10 KHZ AND 1 DB Below Clipping: 0.15 %Fattore damping: 1.000
• Separation of 10 kHz channels: 60DB
• Output impedance: minimum 2ohm
• Response speed: 55 V / μs
• Input impedance: 20k ohms bal. / 10k ohms bal.
• Common fashion rejection: 60DB
• Gain controls: 41 pos. detend
• Clip / indicatori di protezione: Led
• Output level indicators: LED
• Input connectors: Neutrik © XLR Female
