MDA44T is a 4-channel power amplifier in class D that offers flexibility, efficiency and is able to provide a total output power of 3200W @ 4 ohms. Designed to meet the most demanding requests for both live and fixed installations, it provides high-value features including an efficient cooling system, high output power, an integrated DSP processor and USB / Ethernet / M connections-LAN that allow remote monitoring and control via dedicated PC software. To ensure maximum reliability, MDA44T uses two highly efficient switching type power supplies that individually provide energy to a pair of output channels. The output stages use the Circuitazione in Class D, which allows to obtain high efficiency, low distortion, all equipped with a complete set of circuit protection, in addition to the efficient heat dissipation system and overheating protection which in turn They guarantee reliability without compromise. Furthermore, the clip / limiter function provides output monitoring to avoid damage to the speakers with a slight reduction in the clip threshold. MDA44T is much more than an amplifier. In fact it includes a powerful and sophisticated DSP processor at 48KHz 24 bits in addition to the excellent AD / from to 24bit converters. The processor section has 4 channels of crossover filters up to 48db / oct, parametric eq parametrics both input and outgoing, RMS compressor, Peak limiter, alignment delay and also each input includes an internal pink / white noise generator, the Everything needed to optimize a sound diffusion system. MDA44T supports "Routing" mode in which the inputs can be routed / mixed in any output. All the configuration parameters of DSP functions and limiter settings are accessible both using the front panel controls, which the deducted PC software.

Features

• Outstanding Performance: High Power Output: - 4 x 800w @ 4ohm or 2 x 1400w @ 8ohm (Bridge mode) - Switched-Independent Mode 2 Power Supplies with Double Voltage Automatic Selection - Exit stages in class D with efficiency up to 90% at full load - Complete protection circuits with over-Current, Over / Under-Voltage, DC output and over-temperature - Four processed outputs destined to drive additional poweramplifiers - Excellent sound performance with 24bit high-end converters coupled with 48khz sampling frequency - 4 inputs, 4 outputs with complete matrix mixing
• Top-Grade DSP Engine: - 5 Parametric equalization bands for each input channel - 7 Parametric equalization bands for each output channel - Each band can be switched to bell, Low / High Shelving, Low / High-Pass, All-Pass, band-Pass and notch - Low / High Shelving, Low / High-Pass, can be selected as 1 ° and 2nd Order, Version Q Variable - Crossover filters with 6 dB / octave slopes up to 48dB / octave including Butterworth, Bessel, Linkwitz-Riley and customizable topologies - Each output has a precision dynamic range controller composed of a peak and RMS limiter - Compressor with selectable and knee variable ratio - Adjustable delay time up to 850 ms for each entry and output channel
• Direct PC / Network Connection: - USB connector on the front panel for direct connections to the PC - RS485 Ethernet interface for system configuration, monitoring and control via completely manageable remote PC software

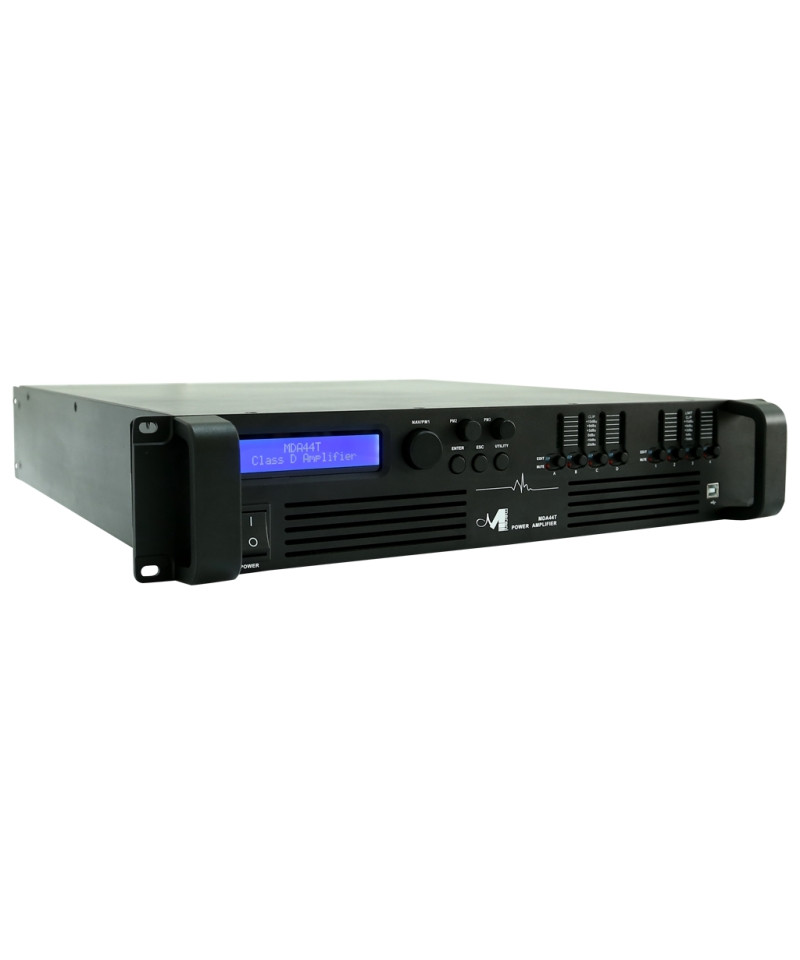

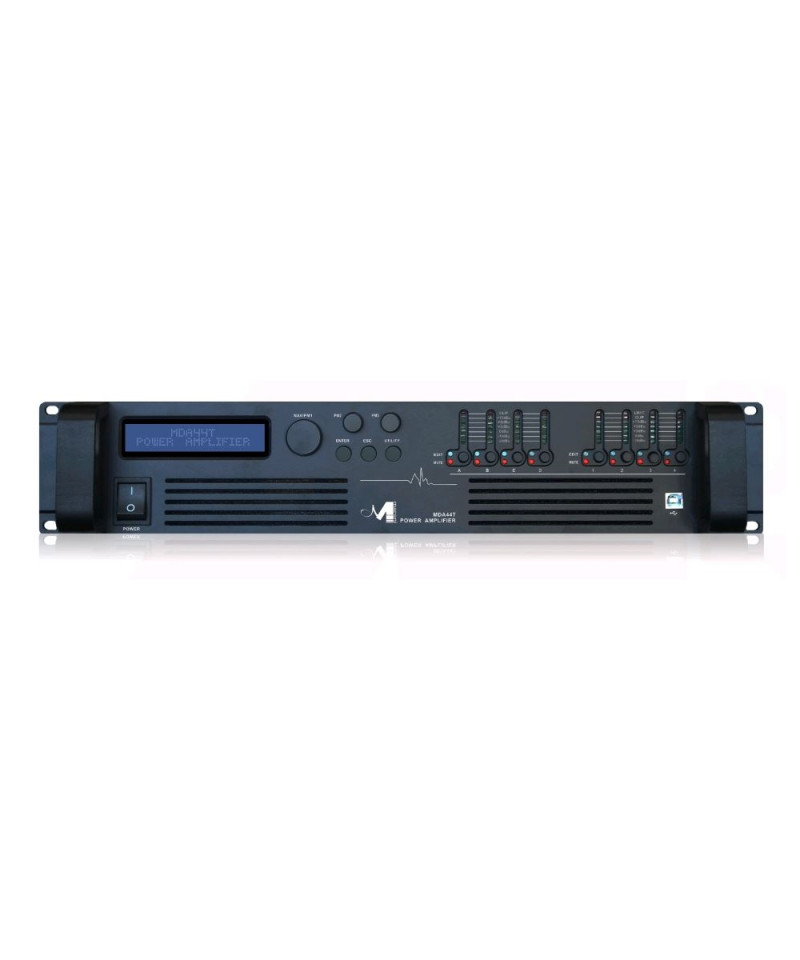

• Controls: - Front interactive LCD display control panel for local access and configuration - Status indicators on the front panel 7-LED per channel - Simultaneous control from 32 units via PC Software - Up to 60 memorable presets

Technical specifications

• // POWER & AMPLIFIER SECTION // Number of channels: 4
• Max Output Power @ 8ohm: 4 x 400w; 2 x 1400W (Bridge)
• I824i
• Output circuit: Class D - Full PWM modulator bandwidth with ultra low distortion
• OUTPUT VOLTAGE: 80 VP / 160 VPP (unloaded) / bridged 160 VP / 320 VPP (unloaded)
• THD @ rated power 4ohm (1khz): <0.05% (20 Hz - 20 kHz, (8ohm load, 3DB Below Rated Power)
• Noise signal ratio:> 120 db (weighted, 20 hz - 20 kHz, load of 8ohm)
• Frequency response: 20 Hz - 20 kHz ± 0.15 dB (8ohm loading, 1 DB Rated power below) Damping factor:> 1000 (8ohm load, 1khz and below)
• Power supply: two universal and regulated independent switches
• Ray of action: universal network, 85-265V (automatic double voltage selection)
• Consumption / current absorption and 230V 50W thermal dissipation / -A / 170.7 BTU / H (IDLE)
• Thermal dissipation at 230 V: 670W / -A / 921.8 BTU / H (I / 8 max. Power @ 4?)
• Protections: Over-Current, Over / Under Voltage, Output DC and Over-Temperatures

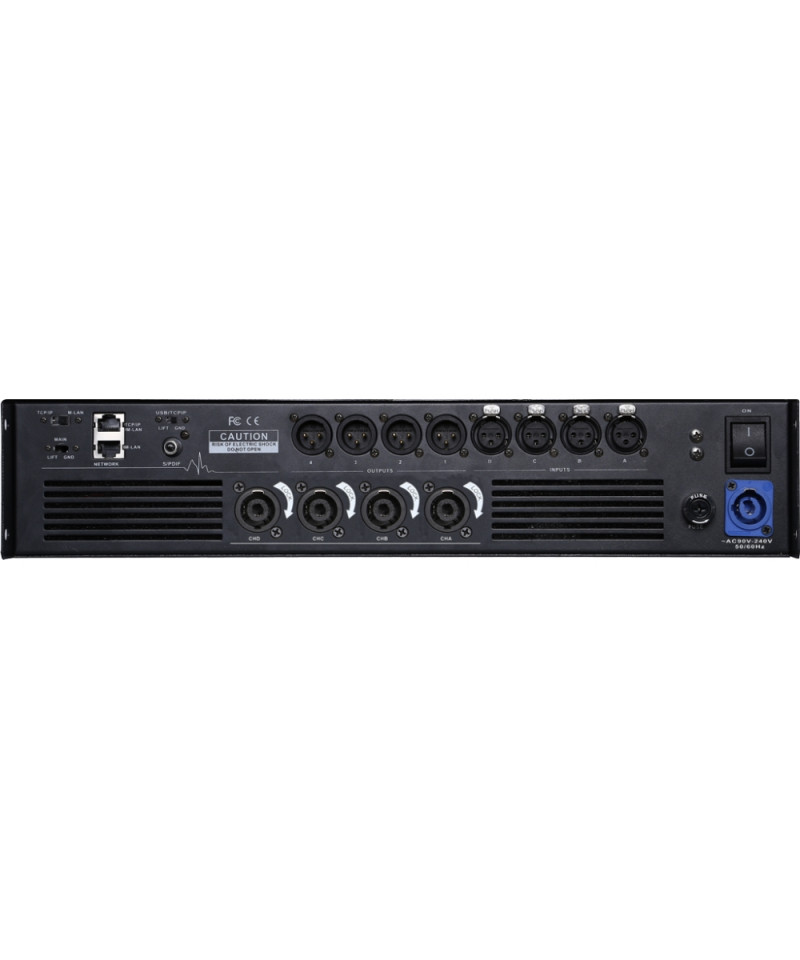

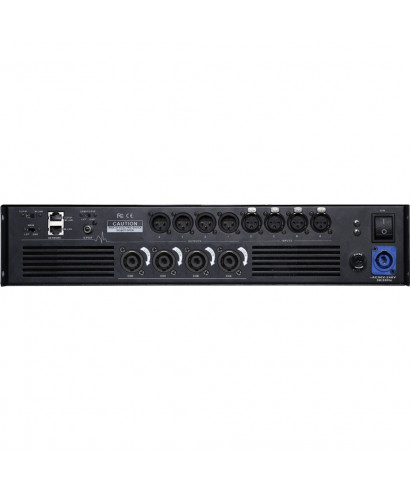

• Analog Input: 4 x XLR ElectronicLly Balanced
• Analog Output: 4 x XLR Electronicly Balanced
• Digital Input: 1 Spdif; Gain 0dbu
• // DSP & Processing // AD & DA Converters: 1x AK5388 24bit, 2x AK4396 24bit
