SOUNDSATION Presents PA System to batteries SOUNDSATION PocketLive U16HBT with MIC WirelESS Mp3 bluetooth

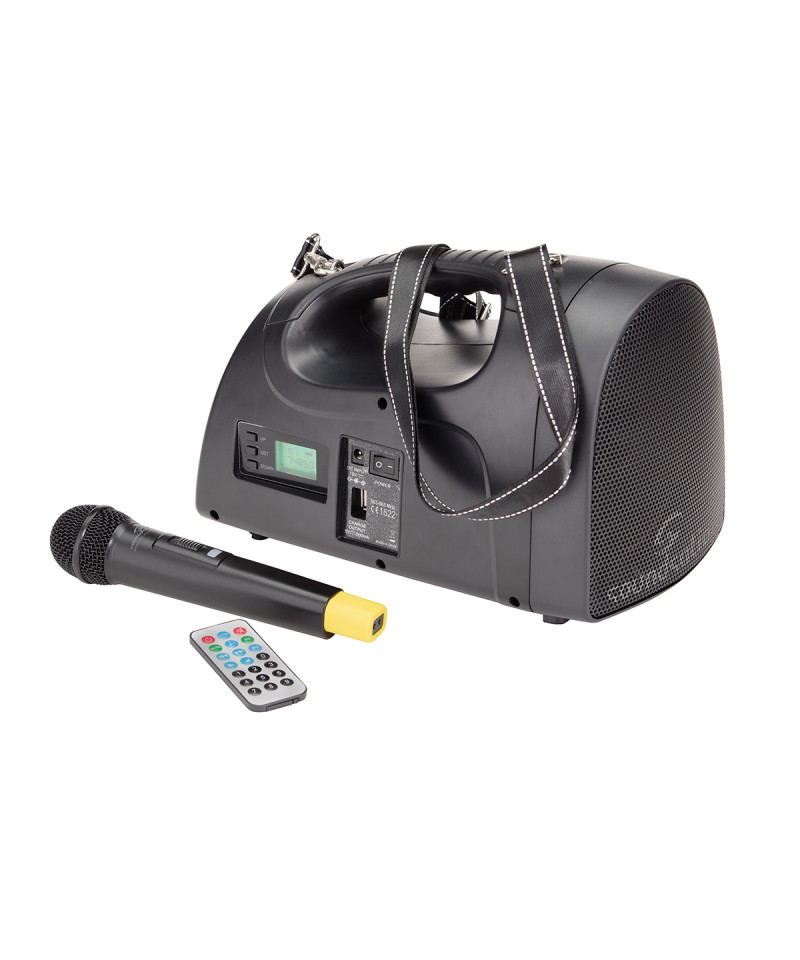

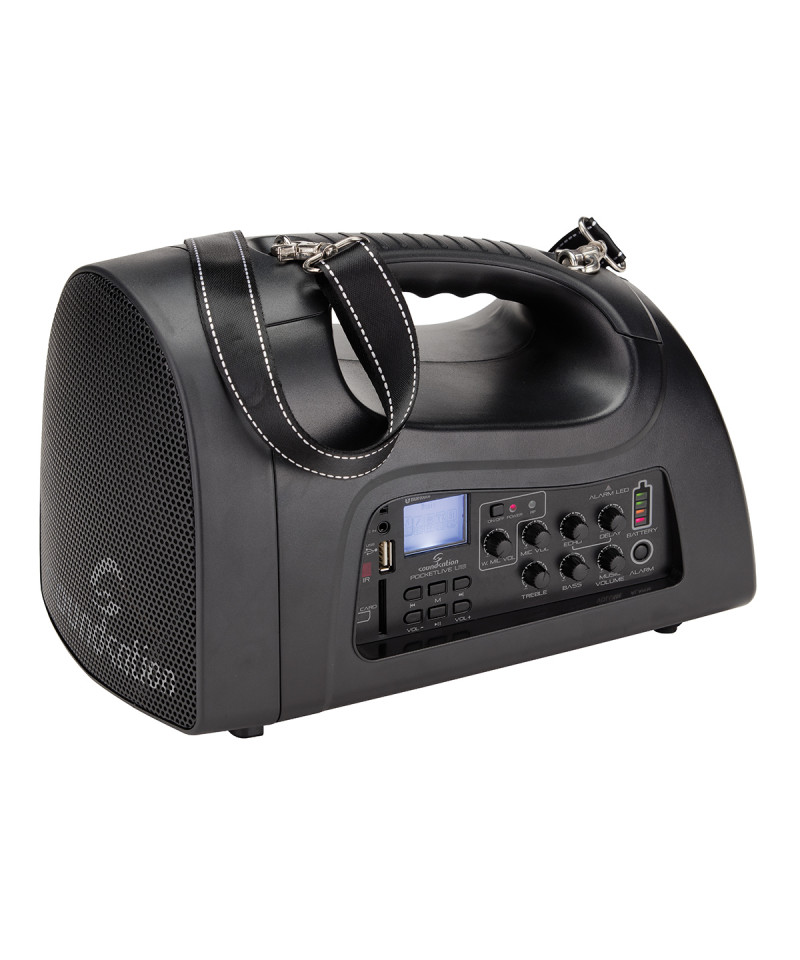

Dedicated to all those who need maximum portability and are on the road, the pocketlive u16hbt is a mini 35w battery PA system with professional UHF radio microphone to 16-CH, MP3 player with Bluetooth, line and microphone inputs and much more. The weight of about 3kg (included batteries), shoulder strap and practice bag make it suitable for practically every situation where you need to be heard but you do not have even an electrical socket: Daluolus in school contexts, in small country fairs, sports contexts, Religious, tourist and much more. The batteries have a duration than 5 hours continuous with maximum charge and maximum volume. The 16-channel Handheld 16-channel Handheld radio icon (863-865MHz) also allows for environments with high radio interference and does not require any special authorization throughout the European Community. The MP3 player with Bluetooth, SD-Card and USB allows you to play your playlists and can also be commanded through a very practical remote control. The bag, equipped with shoulder strap and large side pocket, has an opening with a closed network and hinge at the speaker, and allows the use of the PocketLive U16 even inside the bag. Finally, a hole is present under the lamp.

• Integrated SMT technology with surface mount components designed for maximum energy saving and respectable respect
• Designed for use in school contexts, sports, religious, tourist, etc.
• 35Watt high quality amplifier with full speaker-Range of 6
• Lithium batteries with over 5 hours of duration (maximum charge and maximum volume)
• Professional UHF handheld remote microphone with Setup system between TX and infrared RX
• ISM Europe Band (863-865mhz); No need for special licenses in Europe

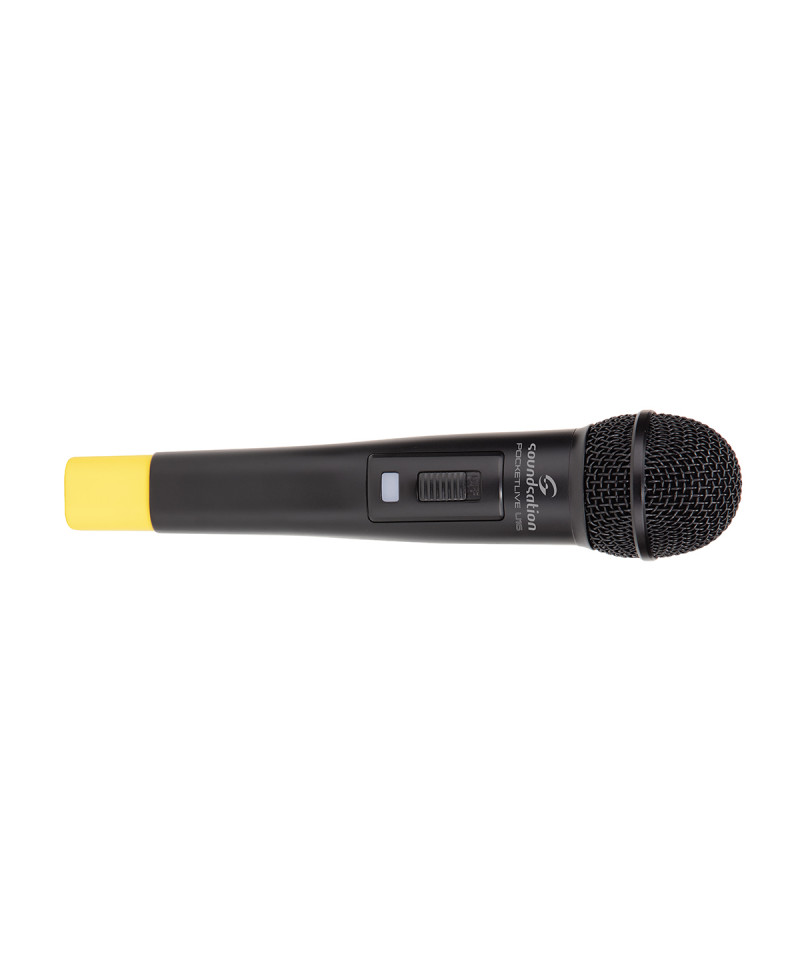

• Handheld microphone with professional cardioid dynamic capsule
• MP3 player with USB, SD-Card, Bluetooth and infrared remote control
• Built-in eco effect for microphone inlet and wireless microphone

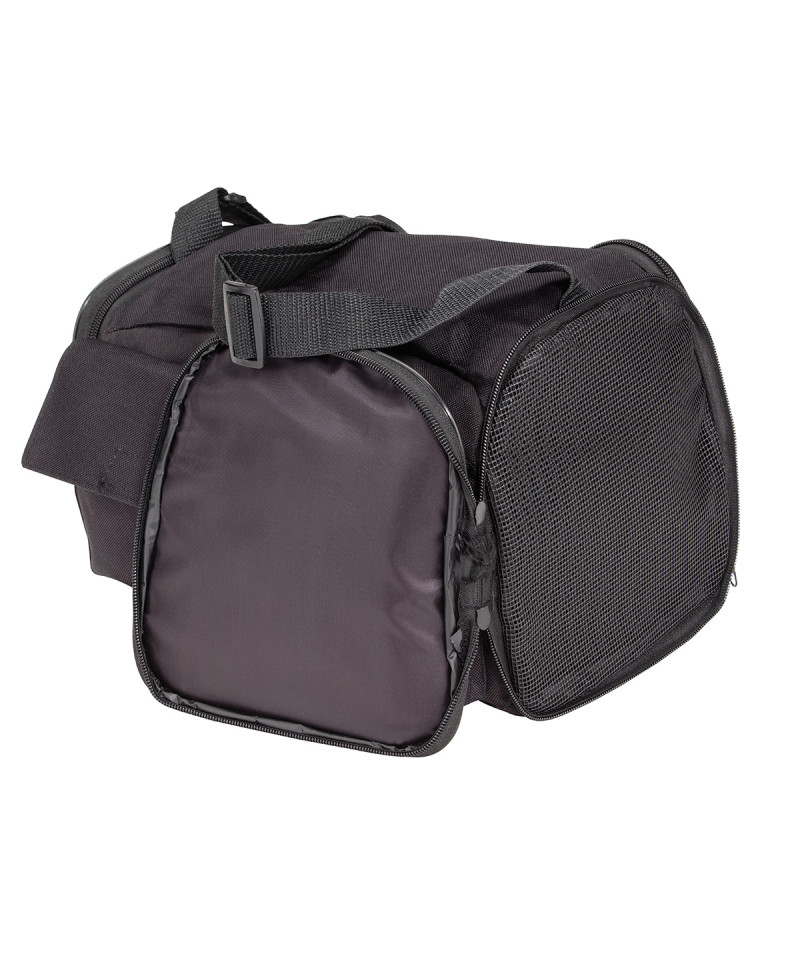

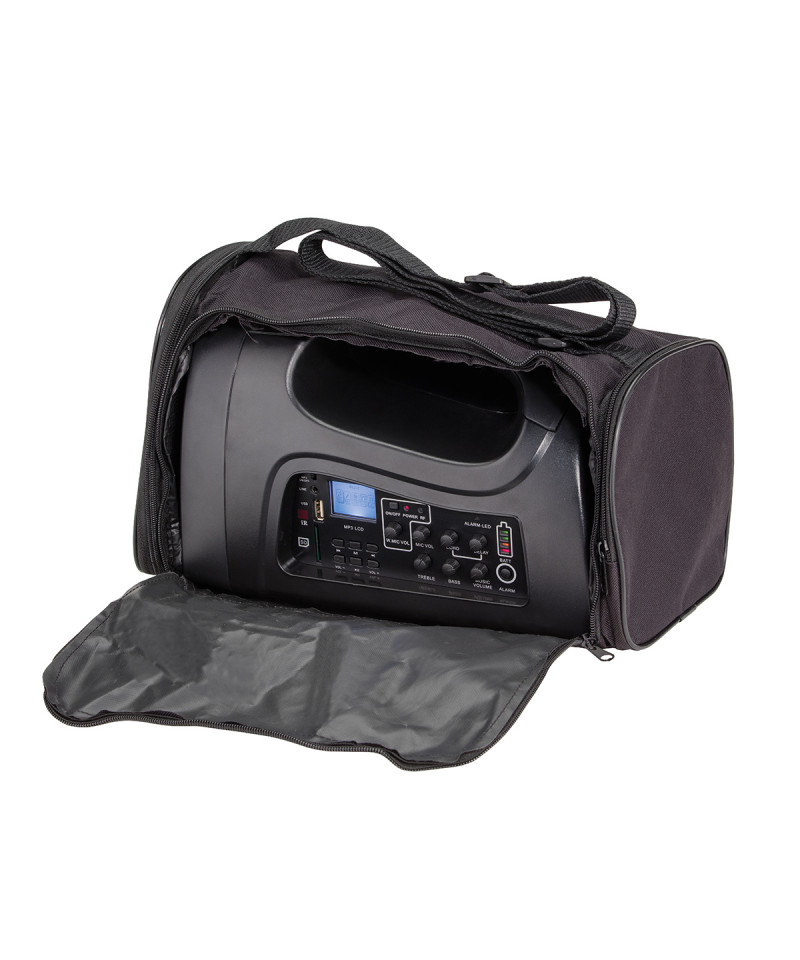

• Bag with removable shoulder strap, side pocket and opening towards the use of the appliance also inside the bag
• 5V USB socket for recharging smartphones or other external devices (max 500mA)
• Microphone rod adapter
• Amplifier power: 35W
• Input / output connections: 1x mic flush, 2x inputs line in (1 On MP3 player), 1x output line out
• L216l
• Dynamic interval:> 95DB
• Total harmonic distortion: <0.8%
• Frequency response: 40Hz-15khz ± 3db
• Battery: 14.8V rechargeable lithium battery - 4000ma
• External power supply: Entrance 100-240VAC, 50 / 60Hz 19VCC output, 3.42A (70W max) Dimensions (LXAXP): 296 x 180 x 175 mm
• Packaging dimensions (LXAXP): 365 x 245 x 295 mm
• Net weight: 2.6kg (Batteries included)
• Gross weight: 4.2kg
• Band receiver: UHF 863-865mhz
• Total harmonic distortion receiver: <0.4%
• Response frequency receiver: 40hz-15khz ± 3db
• Signal Report / Noise Receiver:> 95DB
• Reception sensitivity:> 7DBUV (sinad = 30db)
• De-Emfasi: 75US
