EKO, historic Italian brand of musical instruments, presents PB01 Power Blend magnetic + condenser

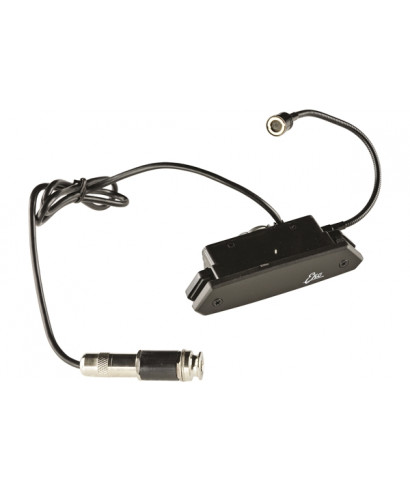

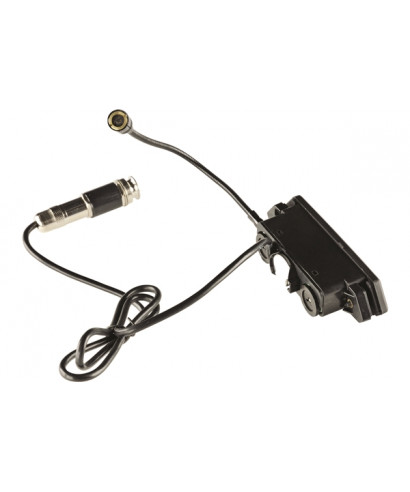

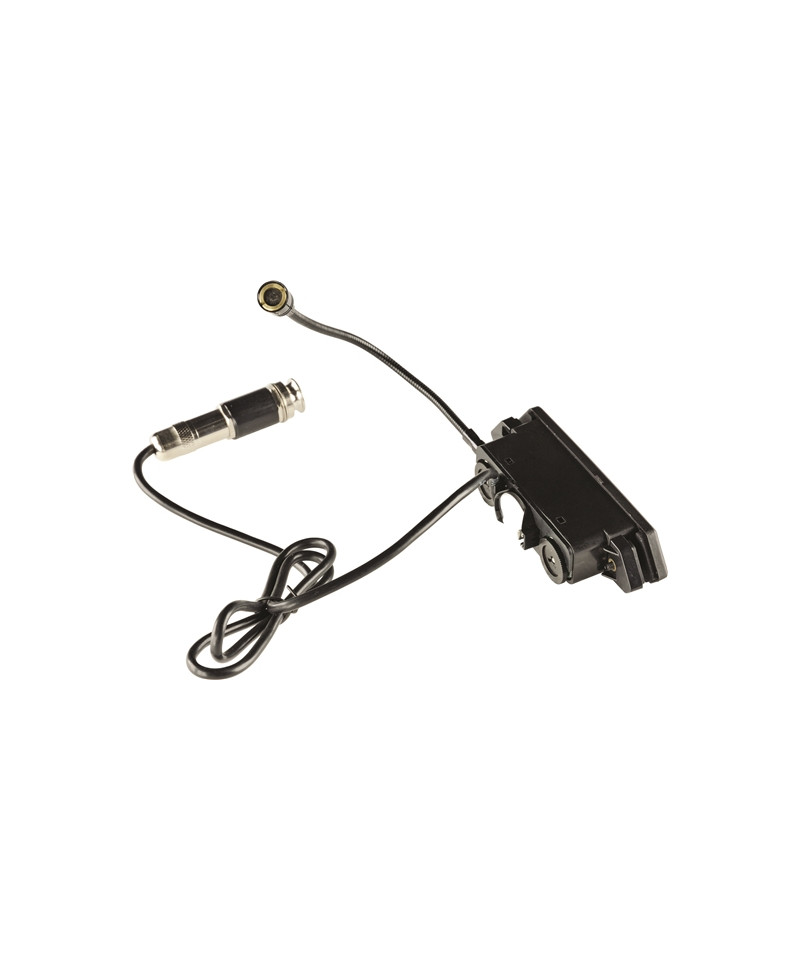

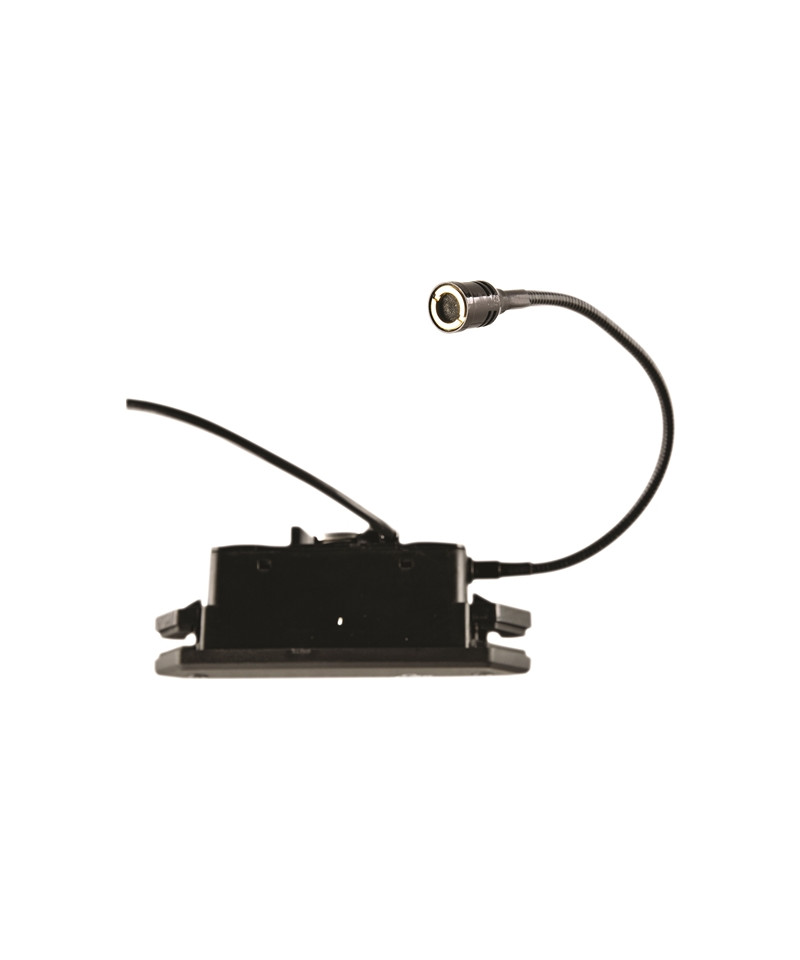

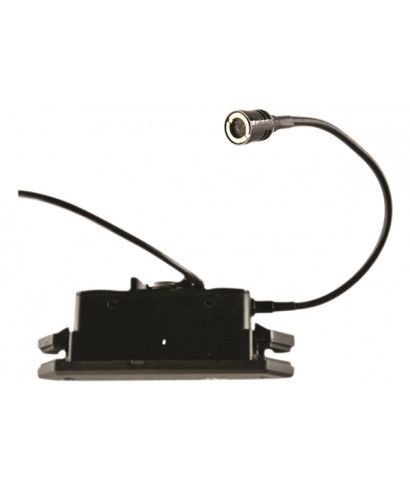

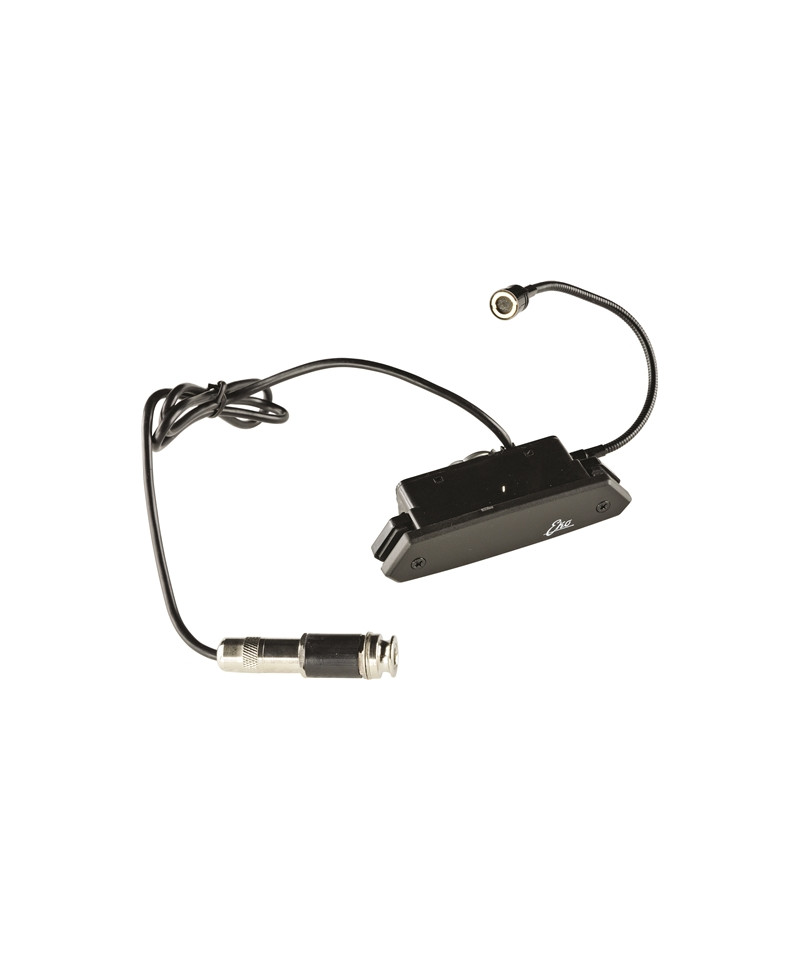

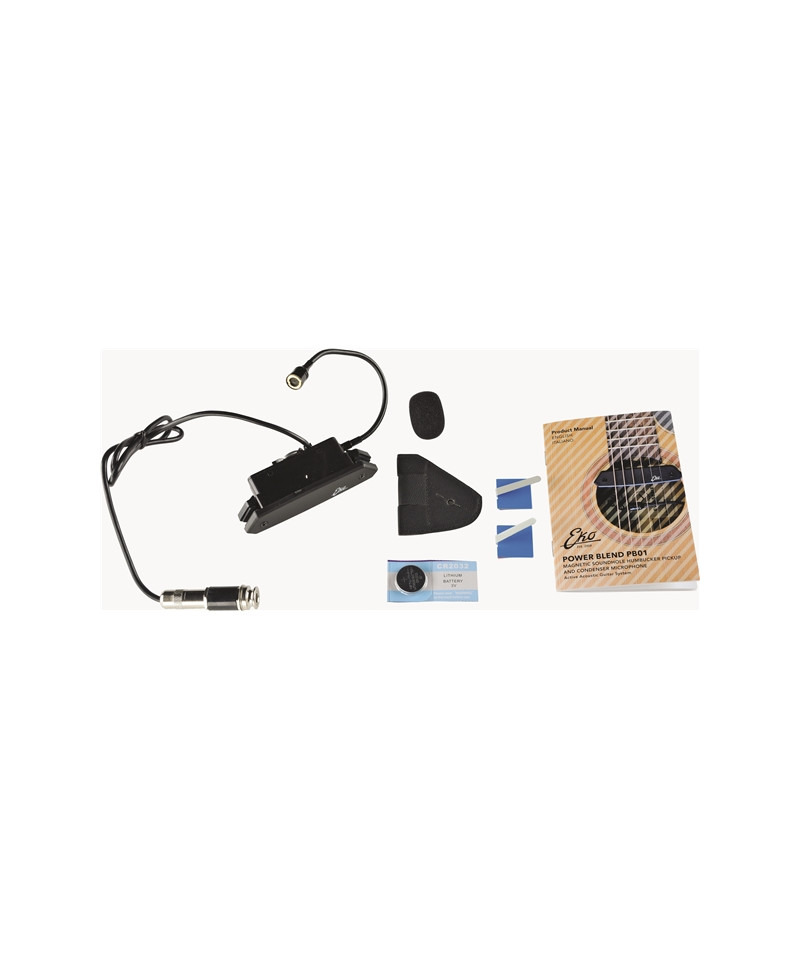

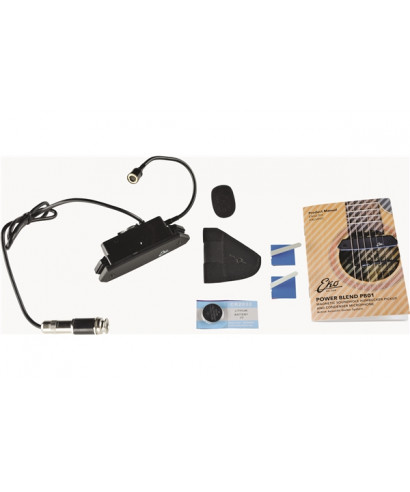

EKO Guitars PowerBend PB01 A pickup with two systems: magnetic (humbucker) and condenser microphone; The function of the magnetic pickup is to collect the sound from the strings during performance, while the microphone, in addition to making the response on the sound of the guitar more faithful, makes it possible to use the guitar as a percussive tool, using the most modern techniques for the instrument. The set of magnetic sound + microphone gives a full, full-bodied, warm and powerful sound. PB01 Suitable for acoustic guitars with a measuring hole from 90mm to 105mm and easy to install, you can install fixed or temporaryly without the need to make changes to the instrument. The 3V battery can be used 105 hours continuously: remember to disconnect the jack whenever the amplified tool is not used.

Temporary installation (test or test):
1. Loosen the strings.
2. Enter the pickup in the hole and get the output jack out.
3. Collow the guitar and connect the exit jack to the amplification after you are ready.

Permanent installation:
1. Prepare the instrument fully out the strings.
2. Make a 12mm hole with the drill on the bottom of the instrument at the wooden block; Remove the nut from the output jack and then insert the output jack into the hole practiced, adjusting the end screw.
3. Secure the cables inside the guitar using the cable clamp.
4. Mount the ropes and tune.

Precautions:
- Read the manual before use
- Be careful not to tighten the pickup screws on the hole and avoid damaging the painting
- Be careful not to leave the rubber cable resting on the guitar finish for a long time
- Any modification (or opening of the pickup that has a sealed casing) to the product makes the warranty
- Keep the dry
- Keep the battery in a dry and fresh place, and away from metal objects
- Remove the battery to avoid loss of the charge if you do not use the pick-Up for a long time.
- The warranty decides not using original accessories.

Specifications:

• Pickup configuration: 1 Humbucker - 1 Condenser microphone
• Output: Jack 1/ 4
• Width: 23 mm
• Length: 101 mm
• Height: 31 mm
• Power: Battery 3V (2032)
• Battery life: 105h Continue
