Passive diffuser

SOUNDSATION, presents, Hyper Top 6p

The speakers of the Hyper Top Passive series are part of a wide range of professional audio products SOUNDSATION. This series is composed of five models with 65 to 15 woofers. These speakers have been designed for maximum lightness, reliability, and offer high quality sound both in fixed installations and in musical applications. The powers between 320W and 1400W peak, the selected transducers, the innovative material used for making the box and the dark gray scratch paint are the ingredients wisely combined to offer the most also to the most demanding professionals. All models can be suspended via the M8 hanging points, or places on speaker supports via the underlying hole with a diameter of 36mm.

• Passive case 2-Streets

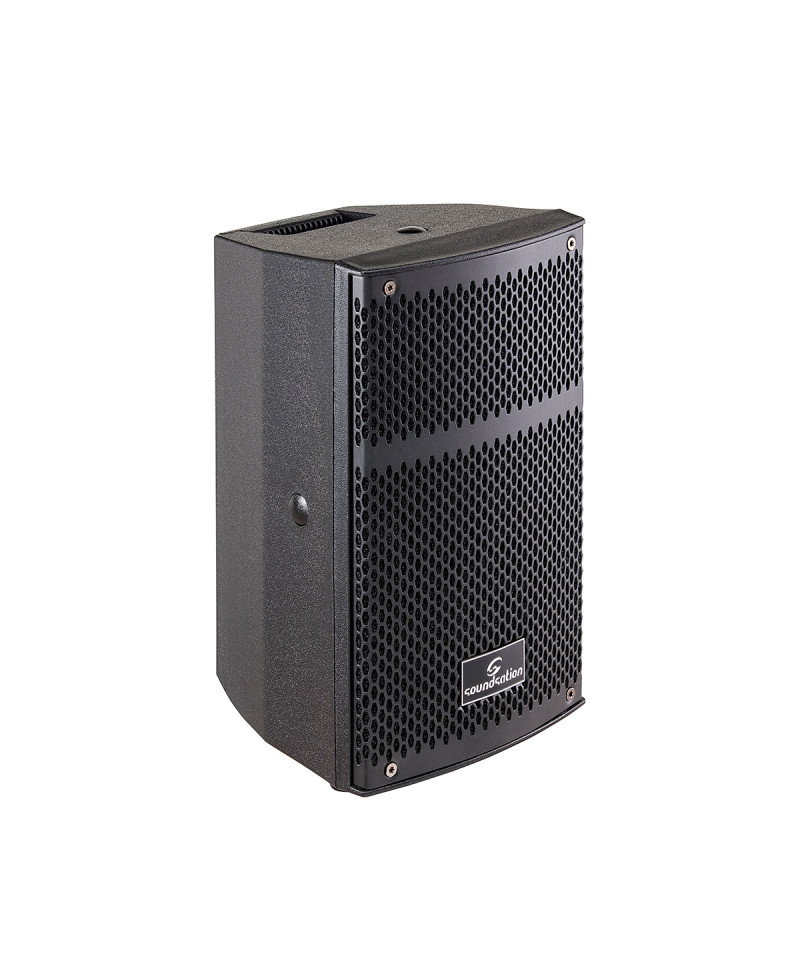

• Sturdy, lightweight polypropylene cabinet with high acoustic performance. Grid on the whole front with interior transducer protection fabric. Dark gray finish.
• 80W RMS 320W peak @ 8ohms
• 6.5 woofer and compression drivers from 1"
• Symmetrical waveguide 90 ° x 60 °
• 2 Speakon 2 connectors-Poly
• 1 Handle on the upper side
• Hole for tripod or pole from D36mm
• 4 suspension points M8
• Frequency response: 72hz-19.6khz
• Maximum SPL (peak): 108db
• Impedance: 8 ohm
• Low frequency transducer: 6.5 "woofer
• High frequency transducer: Compression driver from 1"(reel from 1")
• Waveguard: symmetrical, 90 ° x 60 °
• Crossover frequency: 3.5khz

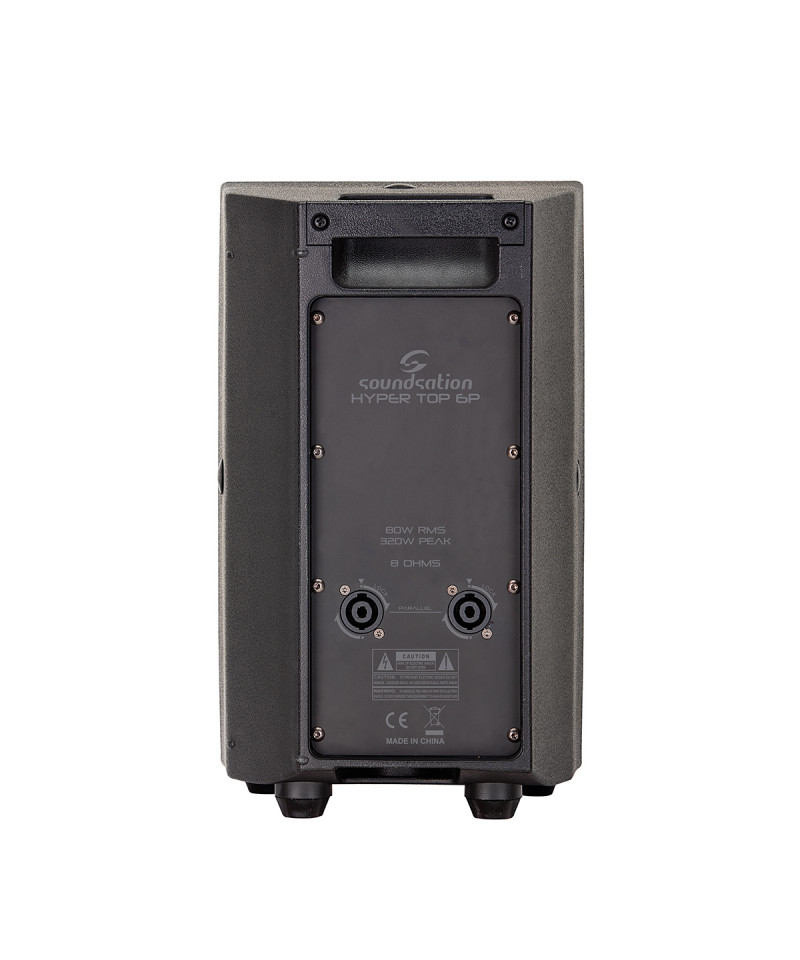

• Input / output connectors: 2 Speakon 2-Poles (+1 Positive, -1 Negative)

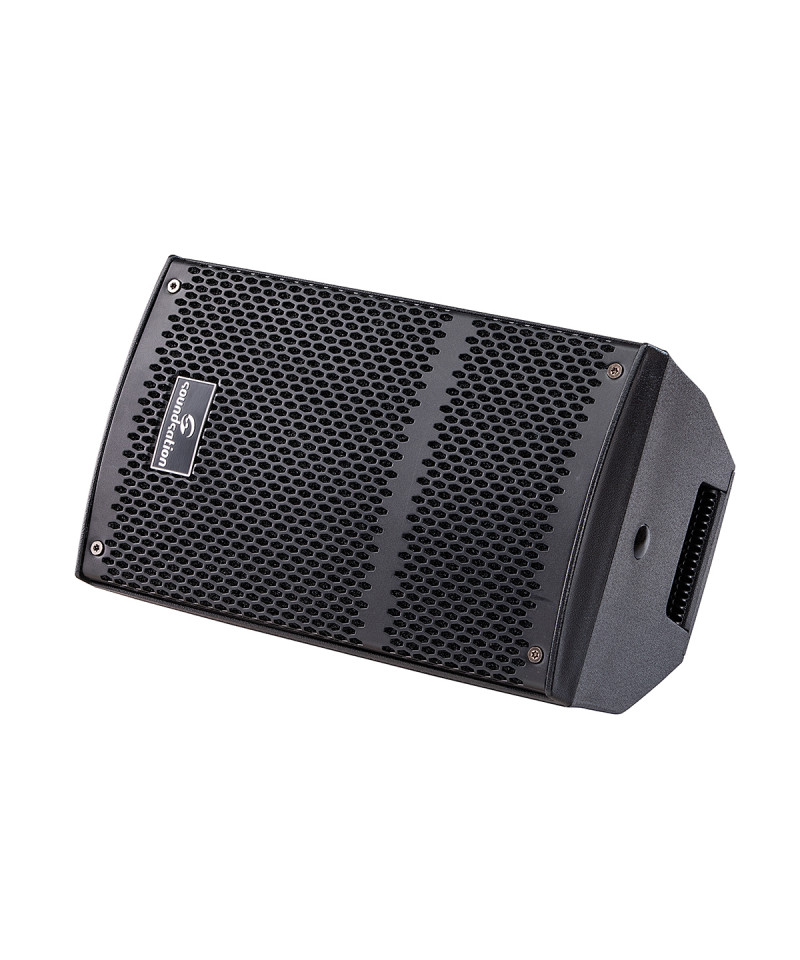

• I use stage monitor (horizontal): 30th and 45 °
• Diffuser size (LXAXP): 22 x 36.8 x 21 cm
• Cardboard size (LXAXP): 29 x 43 x 28.6 cm
• Diffuser weight: 4.7 kg
• Cardboard weight: 6.8 kg
