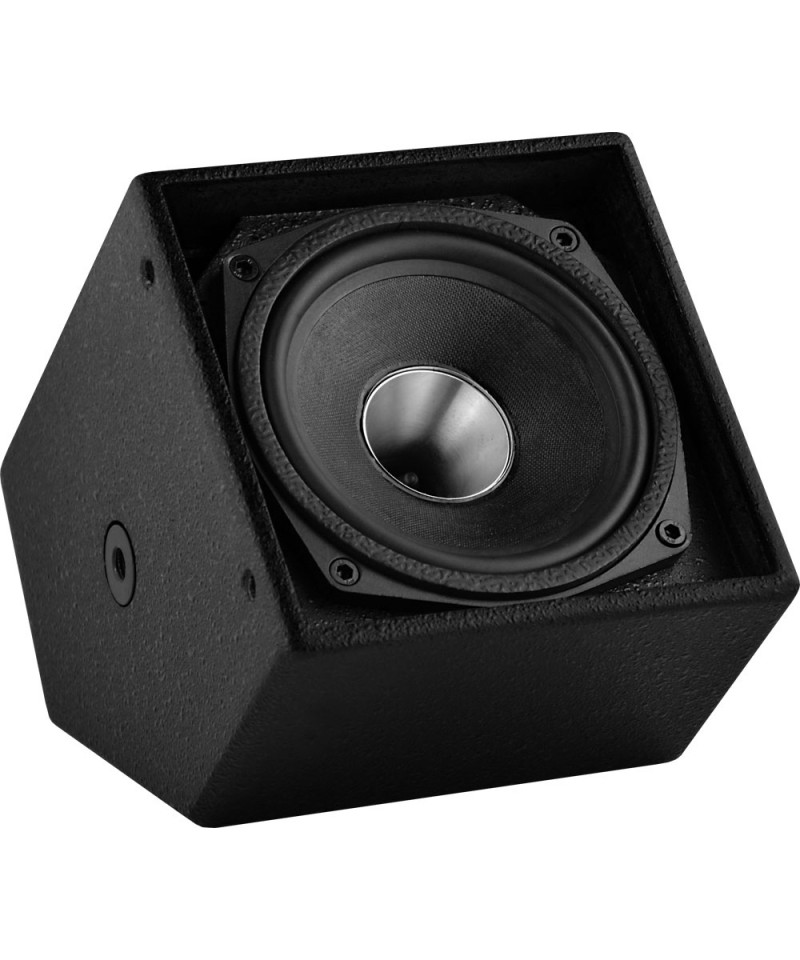

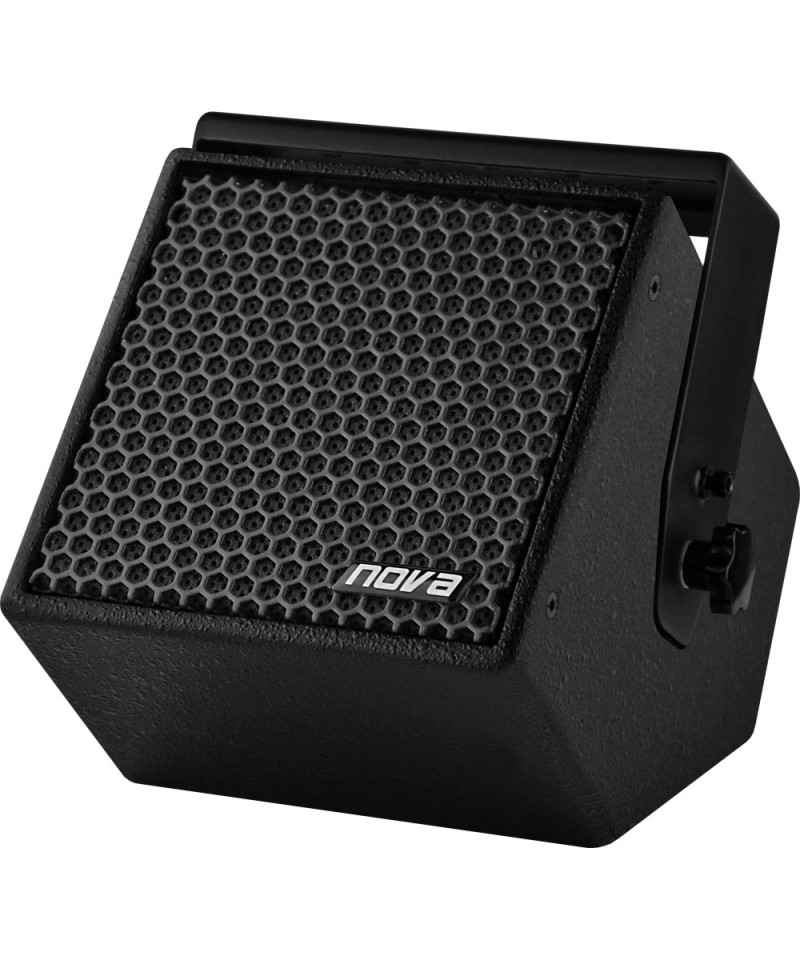

Kira5 is a high-performance high-performance coaxial diffuser suitable for both fixed and mobile installations. The cabinet is equipped with an HF driver 1"Voice coil from 1, 35), which is coaxially mounted on the 5 "transducer. Kira5 offers a coverage of 90 ° X90 ° (HXV). The middle and low frequencies are covered by a 5" speaker. The integrated suspension system includes 2 M10 fixing points, which allow the installation of the U-bracket (included in the standard supply). The flexibility of the Kira5 adapts for speech and musical applications, to the same mode of MF / HF speakers in amplification systems. The frame is made of 15 mm plywood (birch) and covered with a black texture finish. E'Equipped with a front grille with a foam support of transparent coal. Two Speakon NL4 connectors are mounted on the back side of the frame for signal input and link. The nominal power of the Kira5 is 150 W (RMS), the impedance is 16 ohms.

Features

• HF compression driver with voice coil from 1, 35 "
• High-performance 2-way coaxial transducer
• Nominal coverage of 90 ° X90 °
• Passive FULLANGE OPERATION
• U-frame bracket included in the package (standard)
• Ultra compact and lightweight design
• Monitor angle (45 °)

Technical specifications

• System type: 5 ", two-way, coaxial, angulation monitor 45 °
• Frequency range (-10 dB): 85 Hz - 20 kHz
• L925l
• Coverage Pattern: 90 ° x 90th nominal
• HF Horn: Assysymmetry
• Crossover mode: Passive
• Crossover frequency: 2.2 kHz
• Nominal power (Continue ** / Program): Passive 150 W / 300 WMassimo SPL ***: 117 DB SPL Peak
• System sensitivity (1W / 1M): 92 DB SPL
• LF driver: 1 x NOVA 5/150 coax, 1.8 "Voice coil woofer
• LF Nominal impedance: 16 ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA 5/150 coax, 1.35 "Voice Coil driver
• HF Nominal impedance: 16 ohm (passive)
• Active Tunings: N / A (Passive)
• Cabinet: 15 mm, birch (Multi Layer)
