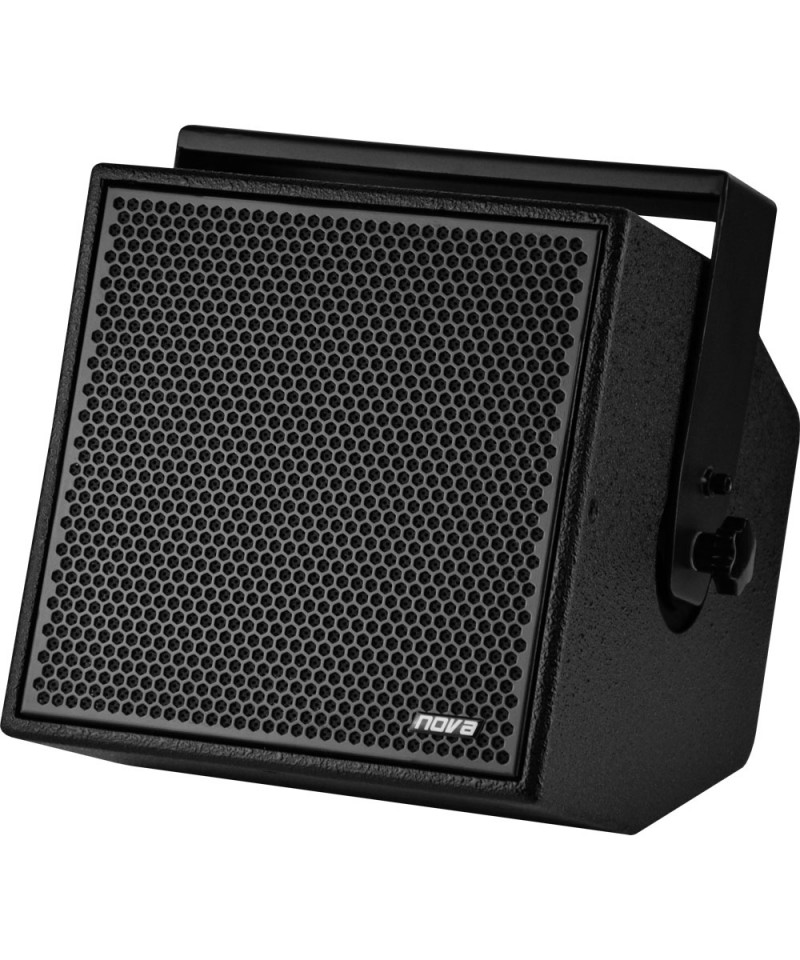

KIRA10 is a high-performance high-performance coaxial diffuser suitable for both fixed and mobile installations. The cabinet is equipped with an HF driver 1"Voice coil from 1, 75), which is coaxially mounted on the 10 "transducer. Kira10 offers a cover of 90 ° X90 ° (HXV). The ML / LF frequency is guaranteed by a 10" speaker. The integrated suspension system includes 2 M10 fixing points, which allows the installation of the U-shaped bracket in the standard supply. The flexibility of the Kira10 adapts for voice and musical applications to the same mode of MF / HF speakers in amplification systems. The frame is made of 15 mm birch plywood with a black texture finish. The furniture is equipped with a frontal grill with transparent coal coating. Two Speakon NL4 connectors are mounted on the back side of the frame for signal input (input) and the signal connection (link). The nominal power of the Kira10 is 350 W (RMS), the impedance is 8 ohms.

Features

• HF compression driver with voice coil from 1, 75 "
• High-performance 2-way coaxial transducer
• Nominal coverage of 90 ° X90 °
• Work in passive fullrange
• U-frame bracket included in the package (standard)
• Ultra compact and lightweight design

Technical specifications

• Type of system: 10 ", two-way, coaxial
• Frequency range (-10 dB): 60 Hz - 20 kHz
• L927l
• Coverage Pattern: 90 ° x 90th nominal
• HF Horn: Assysymmetry
• Crossover mode: Passive
• Crossover frequency: 1, 6 kHz
• Nominal power (Continue ** / Program): Passive 350 W / 700 WMassimo SPL ***: 128.5 db SPL Peak
• System sensitivity (1W / 1M): 97 DB SPL
• LF driver: 1 x NOVA 10/350 Coax, 2.5 "Voice coil woofer
• LF Nominal impedance: 8 Ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA 10/350 Coax, 1.75 "Voice Coil driver
• HF Nominal impedance: 8 Ohm (passive)
• Active Tunings: N / A (Passive)
• Cabinet: 15 mm, plywood (Multi Layer)
