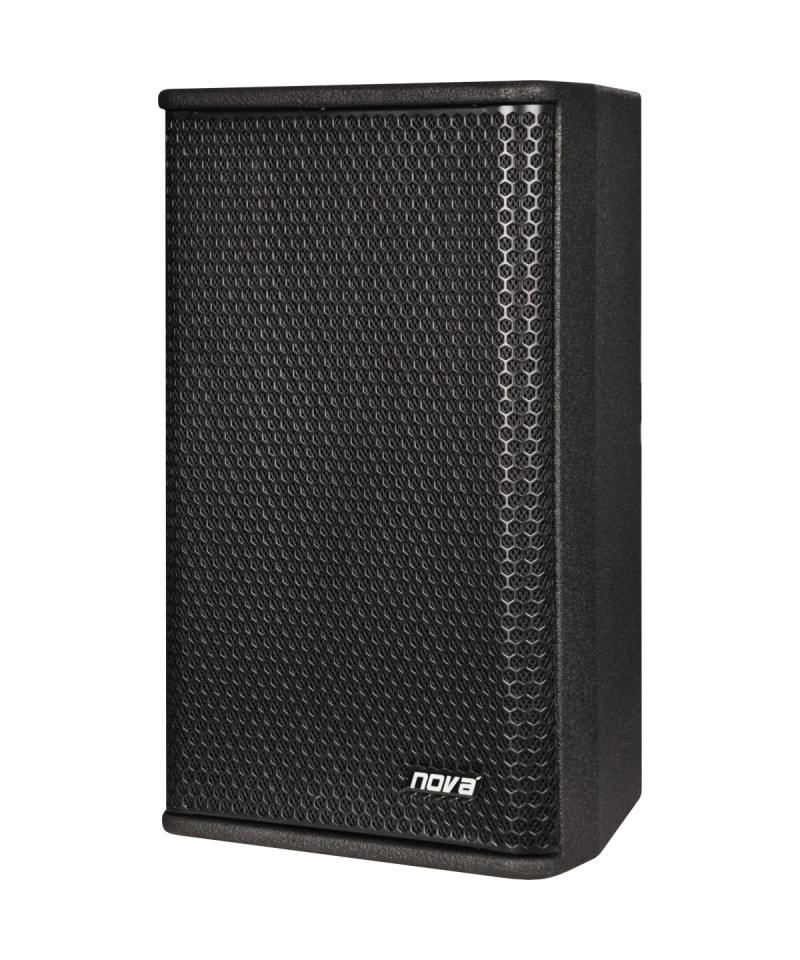

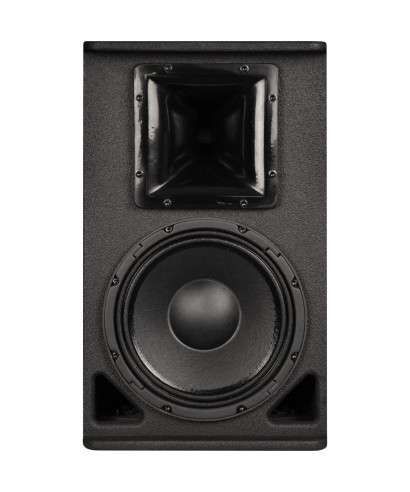

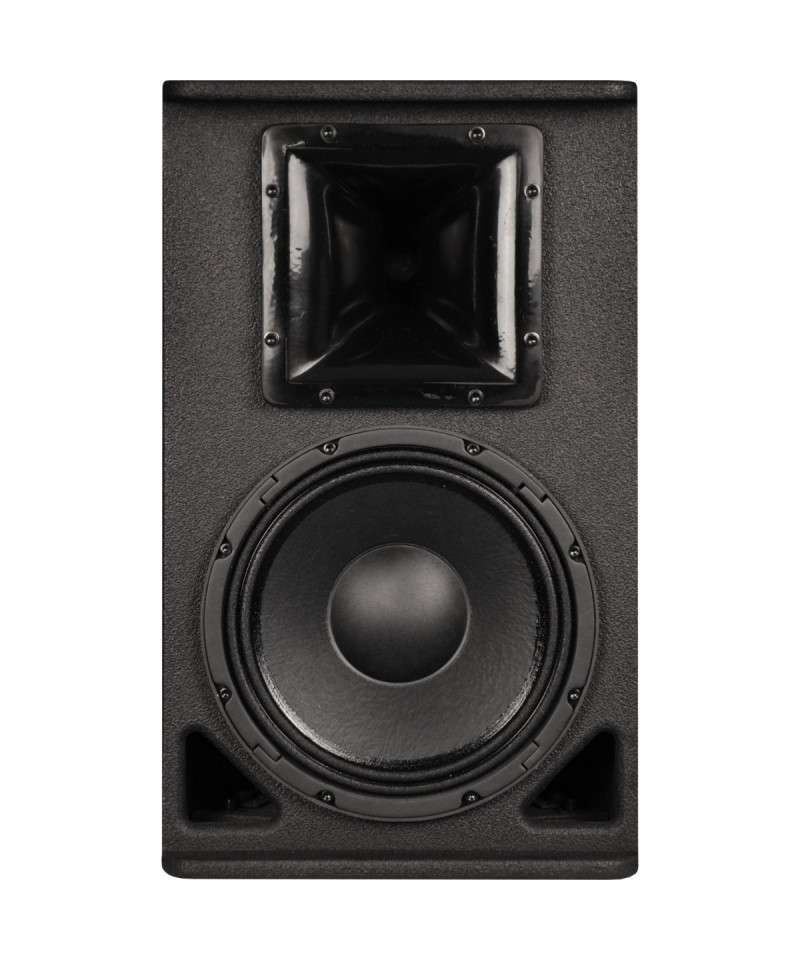

VS10 is a high-performance multipurpose two-way speaker, ideal for fixed and mobile installations. The trapezoidal cabinet is equipped with a HF coil from 1, 75 "which is mounted on a fiberglass trumpet integrated with a nominal cover is 90 ° x 60 ° (h X V). The MF / LF frequency range is covered by a 10" speaker. The Integrated Ancra 5 system (5 anchor points) allows suspension use of the diffuser by means of NFS eyelets 3. The 35mm adapter is integrated into the speaker and allows the use of the VS10 on a normal stand. VS10 is a very flexible speaker, ideal for speech and musical applications as a Fullrange Stand system-Alone or MF / HF speaker in more advanced amplification systems. The cabinet, built in 15mm birch and covered with black finish NOVA Polycoat ©, is equipped with a grip handle and anterior metal grille covered in coal foam. Two Speakon connectors (NL4) are mounted on the back side of the frame for the input signal (input) and signal connection (link). The power of the VS10 is 200W (RMS) on 8 ohms.

Features

• HF compression driver with reel from 1.75 "
• Compact design
• 90 ° x 60 ° nominal cover
• Fullrange passive
• 35mm integrated metal flanges for stand
• Ergonomic handle
• HF Horn (rotatable) in fiberglass
• 5 Ancra 5-point anchor system for flying applications
• Finish NOVA Polycoat ©

Technical specifications

• System type: 10 "two-way, bass-reflex
• Frequency range (-10DB): 55Hz-20khz
• N884n
• Cover pattern: nominal 90 ° x60 °
• HF Horn: fiberglass trumpet
• Crossover mode: Passive
• Crossover frequency: 2.0KHz
• Nominal power (Continue ** / Program / Peak) Passive: 200W - 400w - 800W BI-AMPED LF: N / A (Passive) BI-Amped MF: N / A (passive) BI-AMPED HF: N / A (Passive) Maximum SPL ***: 120dB SPL of peak
• System sensitivity (1W / 1M): 97dB SPL
• LF driver: 1 x NOVA 10 / 200vs
• LF Nominal impedance: 8ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA T1001VS driver with compression coil from 1, 75 "
• HF Nominal impedance: 8ohm (passive)
• Active tunings: N / A (passive)
• Cabinet: 15mm multilayer
