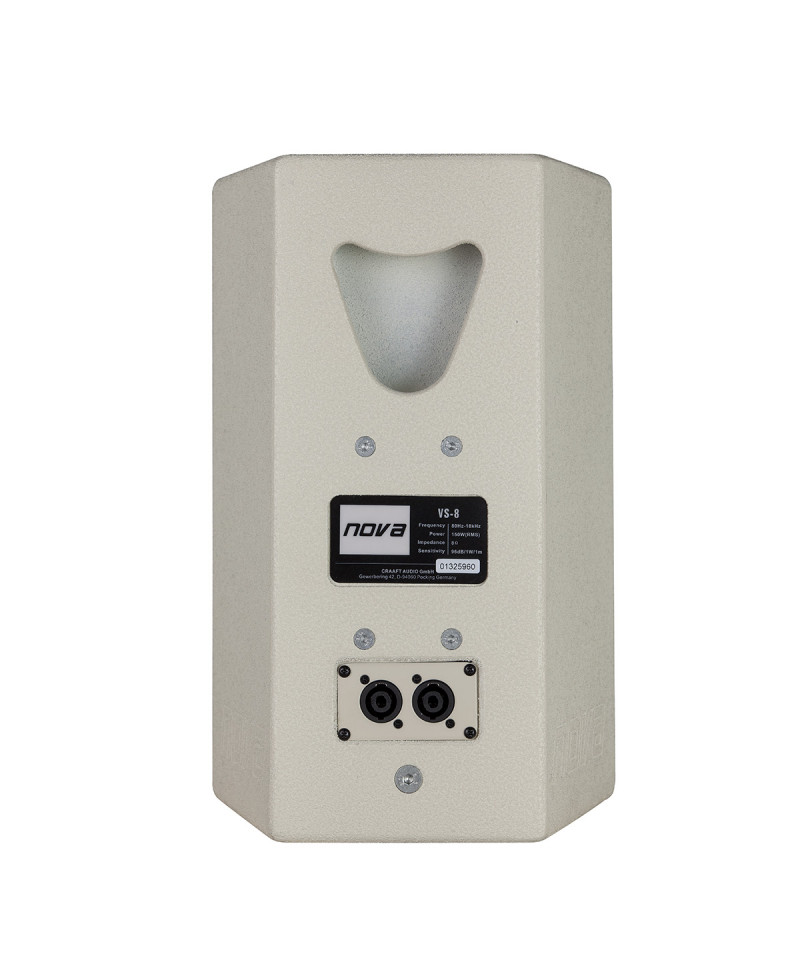

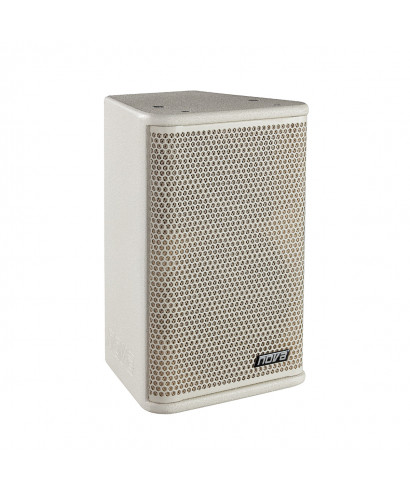

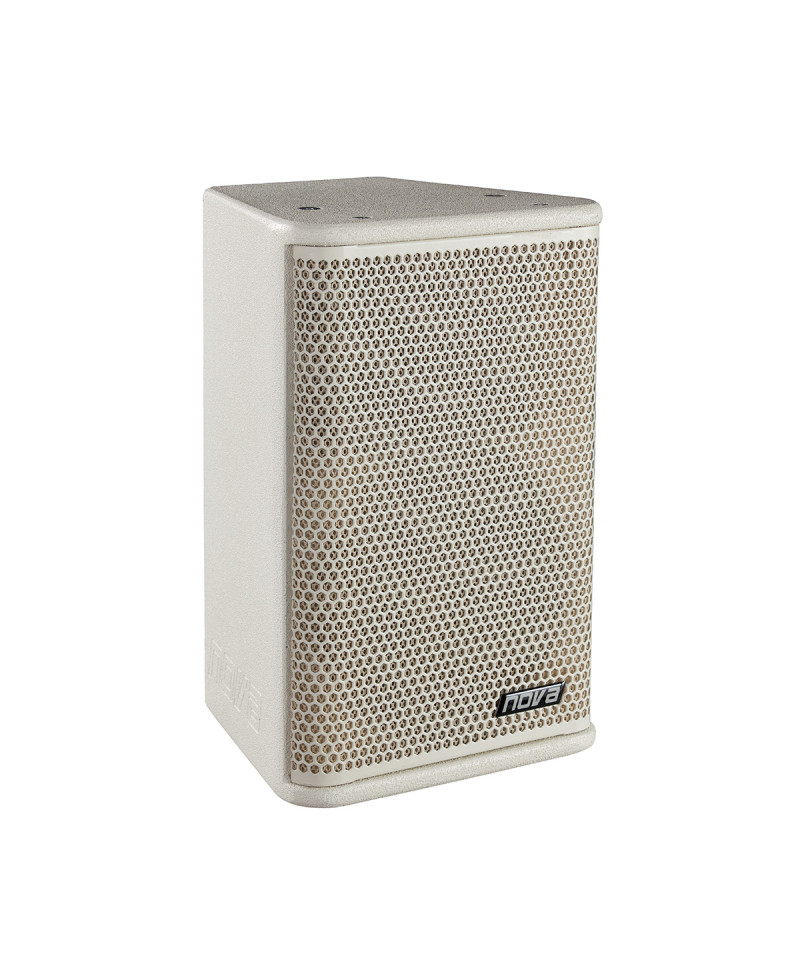

VS8 is a two-way high-performance two-way speaker for fixed and mobile installations. The trapezoidal cabinet is equipped with a HF reel from 1, 75 with a coverage of 90 ° x 60 °. MF / LF frequency rail is covered by an 8 woofer. The integrated system allows the use of eyelets (M8) for flying labeling. 35 mm ladactor allows VS8's use on a stand. VS8 is suitable for speech and musical applications as a Fullrange Stand system-Alone or as a MF / HF speaker in more advanced amplification systems. The frame is built in 15 mm birch plywood and covered with black finish NOVA © polycoat. The trapezoidal cabinet is equipped with a grip handle and anterior metal grill covered with coal foam coal. Two Speakon connectors (NL4) are mounted on the back side of the speaker for the input signal (input) and signal connection (link). The power of the VS8 is 150 W (RMS) on 8 ohms.

Features

• HF compression driver with reel from 1.75 "
• Compact design
• 90 ° x 60 ° of nominal coverage
• Fullrange passive
• ADAPTER FOR STATIVE (35mm tube diameter)
• Ergonomic handle
• HF Horn in fiberglass (rotatable)
• 5 screws (M8) for flying installation
• White finish NOVA Polycoat ©

Technical specifications

• Type of system: 8 ", two-way, bass-Reflex, Utility
• Frequency range (-10DB): 70 Hz-18 kHz
• N983n
• Cover pattern: 90 ° x60 ° nominal
• HF Horn: glass vibrate trumpet
• Crossover mode: Passive
• Crossover frequency: 2,2KHz
• Nominal power (Continue ** / Program / Peak): Passive: 150W - 300w - 600wbi-AMPED LF: N / A (Passive) BI-Amped MF: N / A (passive) BI-Amped HF: N / A (passive) Maximum SPL: 119 db SPL of peak
• System sensitivity (1W / 1M): 97 DB SPL
• LF driver: 1 x NOVA 8 / 150vs
• LF Nominal impedance: 8ohm (passive)
• MF Guide: n / a
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA T1001vs, 1, 75 inch compression driver with reel
• HF Nominal impedance: 8 Ohm (passive)
• Active tunings: N / A (passive)
• Attachments: FULLANGE, 15 mm, PLYWOOD (MULTI LAYER)
