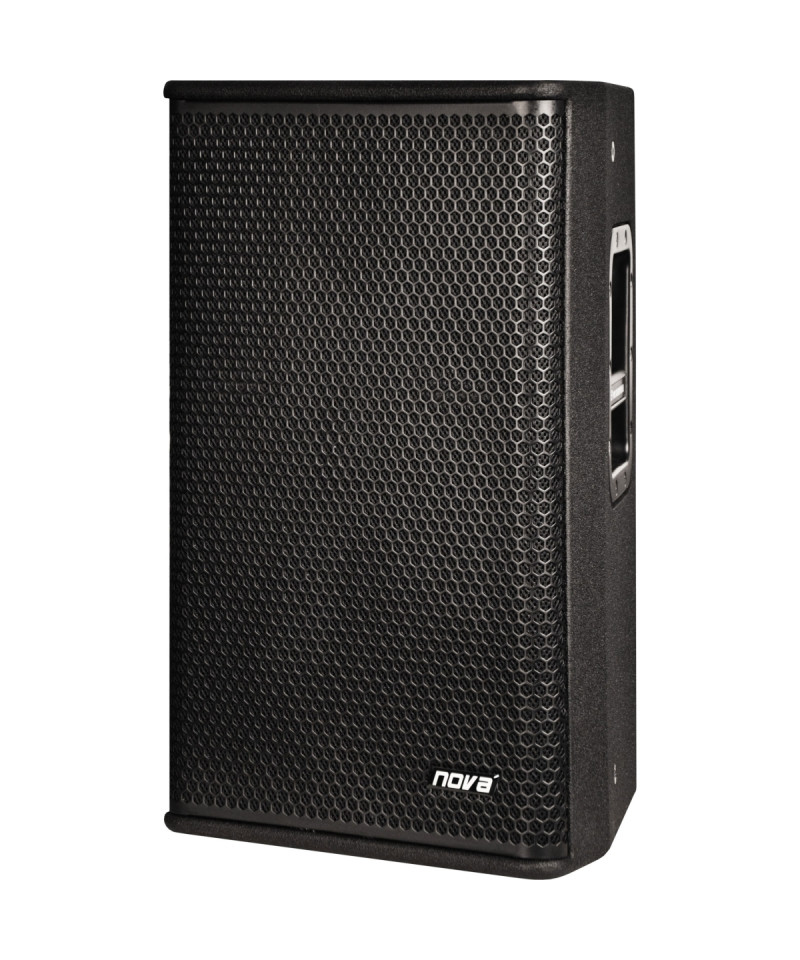

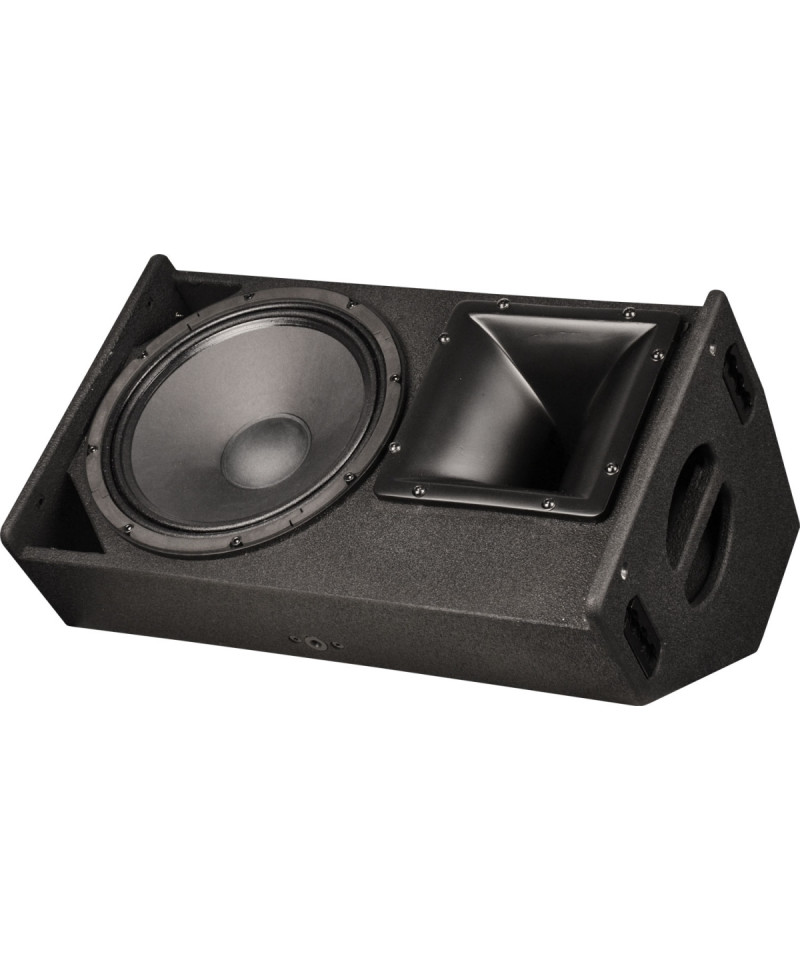

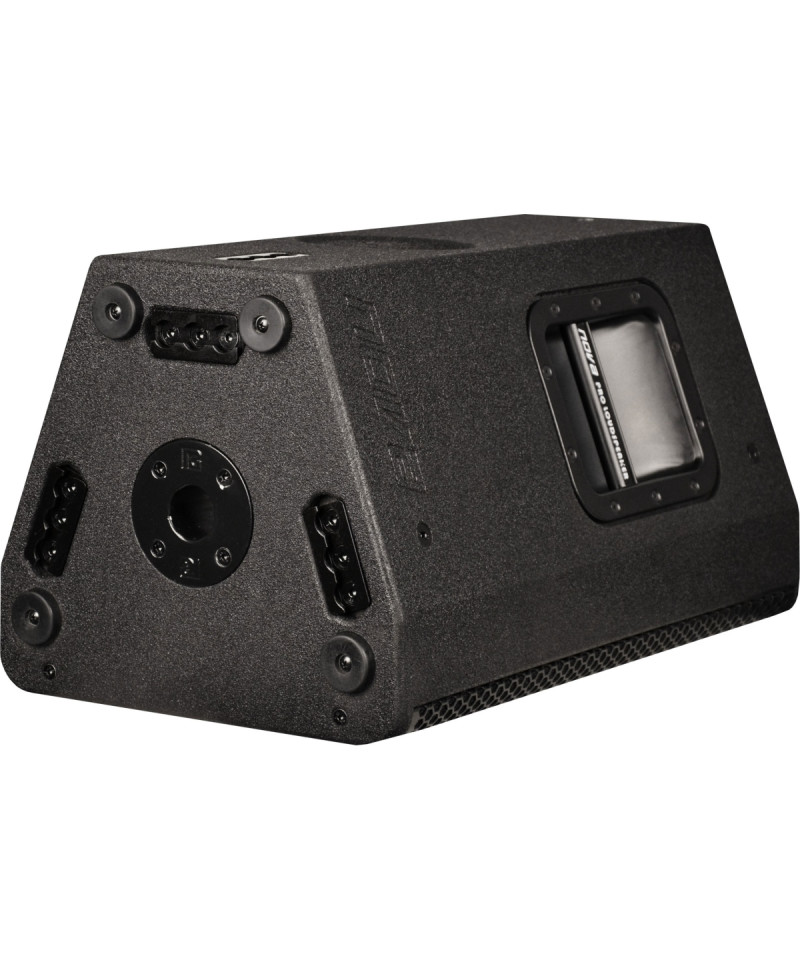

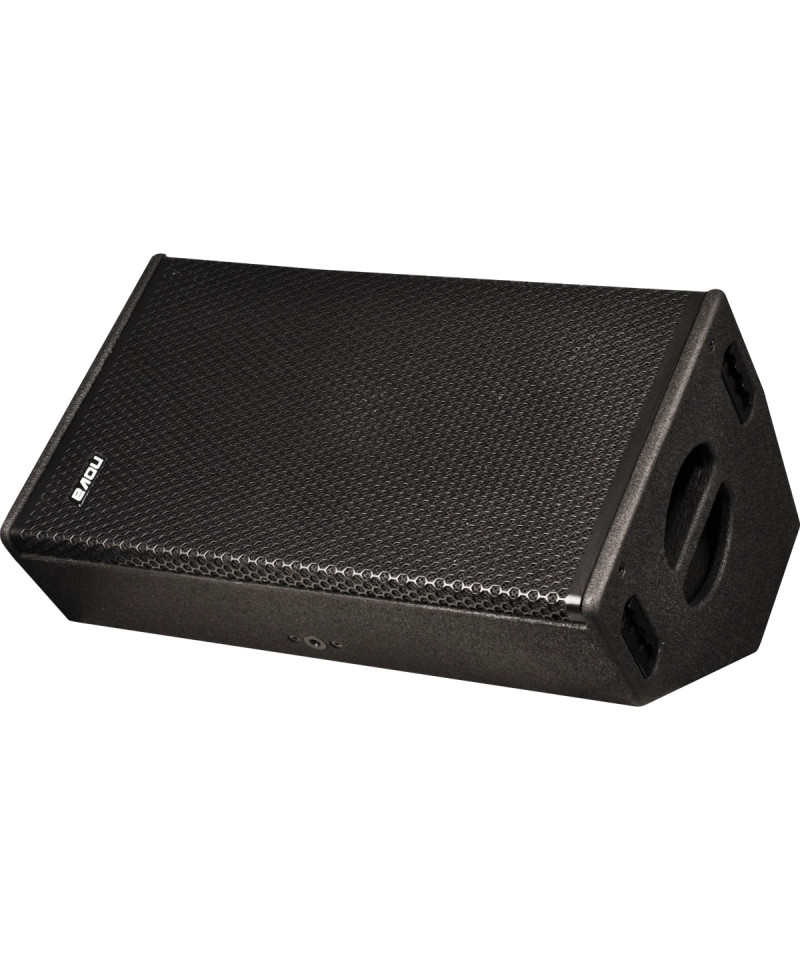

VS12 is a two-way high-performance two-way diffuser, ideal for fixed and mobile installations. The trapezoidal cabinet is equipped with a HF coil from 1, 75 "which is mounted on a fiberglass trumpet integrated with a nominal coverage is 90 ° x 60 ° (H X V). The MF / LF frequency range is covered by a 12" speaker. The Integrated Ancra 7 system (7 anchor points) Allows the use of the speaker by means of NFS eyelets 3. The 35mm adapter is integrated into the diffuser and allows the use of the VS12 on a normal stand. VS10 is a very flexible speaker, ideal for speech and musical applications as a Fullrange Stand system-Alone or MF / HF speaker in more advanced amplification systems. The cabinet, built in 15mm birch and covered with black finish NOVA Polycoat ©, is equipped with a grip handle and anterior metal grille covered in coal foam. Two Speakon connectors (NL4) are mounted on the back side of the frame for the input signal (input) and signal connection (link). The power of the VS12 is 300W (RMS) on 8 ohms.

Features

• HF compression driver with reel from 1.75 "
• Compact design
• Nominal coverage 90 ° x 40 °
• Fullrange passive
• 35mm integrated metal flange for stand
• Ergonomic handle
• HF Horn (rotatable) in fiberglass
• 7 Ancra 7-point anchor system for flying applications
• Finish NOVA Polycoat ©

Technical specifications

• Type of system: 12 "two-way, bass-reflex
• Frequency range (-10DB): 50Hz-20khz
• N885n
• Cover pattern: nominal 90 ° x 40 °
• HF Horn: rotatable glass fiber trumpet
• Crossover mode: Passive
• Crossover frequency: 1, 9 kHz
• Nominal power (Continue ** / Program / Peak) Passive: 300W - 600w - 1200wbi-AMPED LF: N / A (Passive) BI-Amped MF: N / A (passive) BI-Amped HF: N / A (Passive) Maximum SPL ***: 124dB SPL of peak
• System sensitivity (1W / 1M): 99dB SPL
• LF driver: 1 x NOVA 12 / 300vs
• LF Nominal impedance: 8ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA T1002VS driver with compression coil from 1, 75 "
• HF Nominal impedance: 8ohm (passive)
• Active tunings: N / A (passive)
• Cabinet: 15mm multilayer
