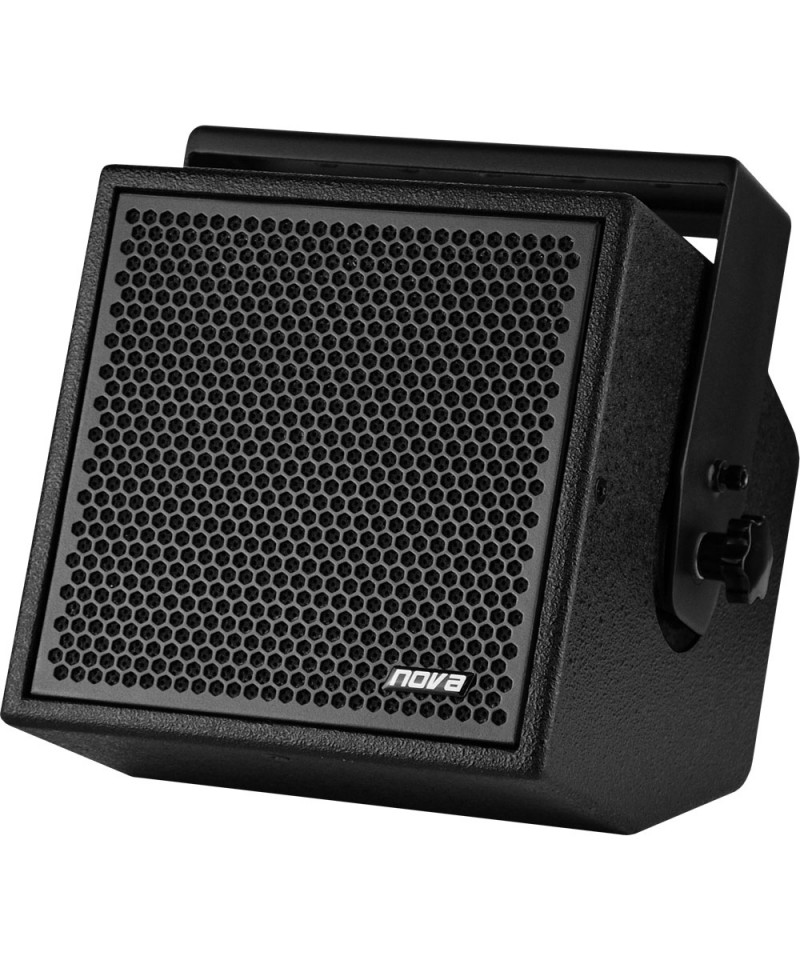

KIRA8 is a two-way high-performance coaxial diffuser suitable for both fixed and mobile installations. The cabinet is equipped with an HF driver 1"Voice coil from 1, 75), which is coaxially mounted on the 8 "transducer. KIRA8 offers a coverage of 90 ° X90 ° (HXV). The ML / LF frequency is covered by an 8" speaker. The integrated suspension system includes 2 M10 fixing points, which allows the installation of the U-bracket (included in the standard supply). The 6 fixing points (M5) allow you to install the kira8 to the wall through IWK2 mounting kit (option). The flexibility of the Kira8 adapts for voice and musical applications to the same mode of MF / HF Speakers in amplification systems. The frame is made of 15 mm birch plywood and is finished with a Black Texture finish. The furniture is equipped with a front grille with a foam support of transparent coal. Two Speakon NL4 connectors are mounted on the back side of the frame for signal input (input) and the signal connection (link). The nominal power of the Kira8 is 250 W (RMS), the impedance is 8 ohms.

Features

• HF compression driver with voice coil from 1, 75 "
• High-performance 2-way coaxial transducer
• Nominal coverage of 90 ° X90 °
• Operation Fullrange in passive mode
• U-frame bracket included in the package (standard)
• Ultra compact and lightweight design

Technical specifications

• System type: 8 ", two-way, coaxial
• Frequency range (-10 dB): 55 Hz - 20 kHz
• L926l
• Coverage Pattern: 90 ° x 90th nominal
• HF Horn: Assysymmetry
• Crossover mode: Passive
• Crossover frequency: 1, 8 kHz
• Nominal power (Continue ** / Program): Passive 250 W / 500 WMassimo SPL ***: 123 DB SPL Peak
• System sensitivity (1W / 1M): 96 dB SPL
• LF driver: 1 x NOVA 8/250 Coax, 2 voice coil woofer
• LF Nominal impedance: 8 Ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA 8/250 coax, 1.75 Voice coil driver
• HF Nominal impedance: 8 Ohm (passive)
• Active Tunings: N / A (Passive)
• Cabinet: 15 mm, plywood (Multi Layer)
