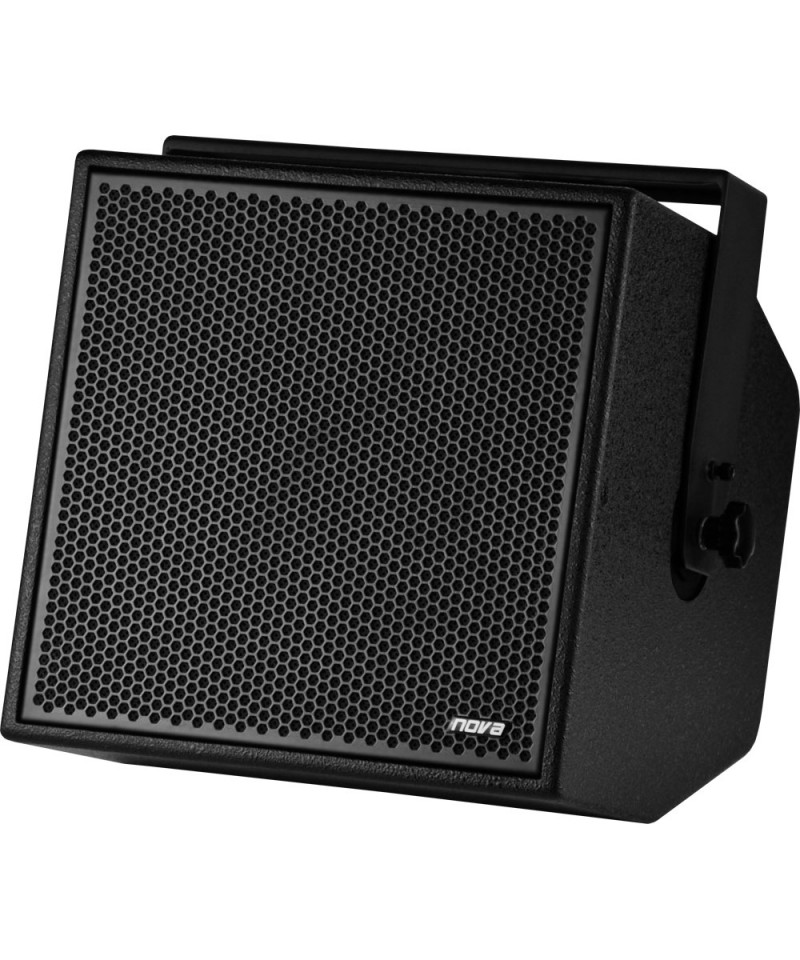

Kira12 is a two-way high-performance coaxial diffuser suitable for both fixed installations and mobile use. The cabinet is equipped with an HF driver from 1"Voice coil from 1, 75), which is coaxially mounted on the 12 "transducer. KIRA12 offers a coverage of 90 ° X90 ° (HXV). The ML / LF frequencies are covered by a 12" speaker. The integrated suspension system includes 2 M10 fixing points, which allow the installation of the U-bracket (included in the standard supply). Kira12 is asterly flexible and adapts to voice and musical applications. The frame is made of 15 mm plywood (birch) and covered with a black texture finish. The furniture is equipped with a front grille with a foam support of transparent coal. Two Speakon NL4 connectors are mounted on the back side of the frame for signal input (input) and the signal connection (link). The nominal power of the Kira10 is 450 W (RMS), the impedance is 8 ohms.

Features

• HF compression driver with voice coil from 1, 75 "
• High-performance 2-way coaxial transducer
• Nominal coverage of 90 ° X90 °
• Passive fullrange diffusion
• U-frame bracket included in the package (standard)
• Ultra compact and lightweight design

Technical specifications

• System type: 12 ", two-way, coaxial
• Frequency range (-10 dB): 50 Hz - 20 kHz
• L928l
• Diffusion angle: 90 ° x 90 ° nominal
• HF Horn: Assysymmetry
• Crossover mode: Passive
• Crossover frequency: 1, 45 kHz
• Nominal power (Continue ** / Program): Passive 450 W / 900 WMassimo SPL ***: 131 dB SPL Peak
• System sensitivity (1W / 1M): 98.5 dB SPL
• LF driver: 1 x NOVA 12/450 Coax, 3 "Voice coil woofer
• LF Nominal impedance: 8 Ohm (passive)
• MF Driver: N / A
• MF Nominal impedance: n / a
• HF driver: 1 x NOVA 12/450 Coax, 1.75 "Voice Coil driver
• HF Nominal impedance: 8 Ohm (passive)
• Active Tunings: N / A (Passive)
• Cabinet: 15 mm, plywood (Multi Layer)
