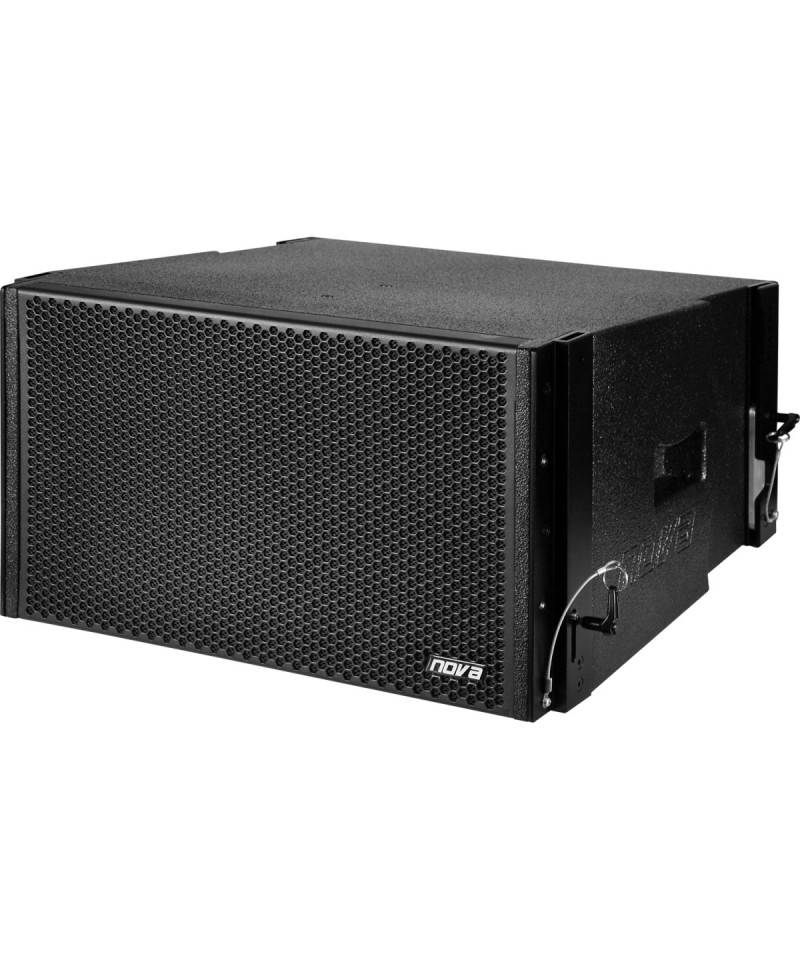

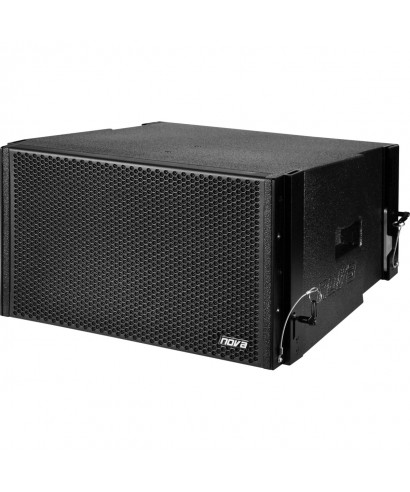

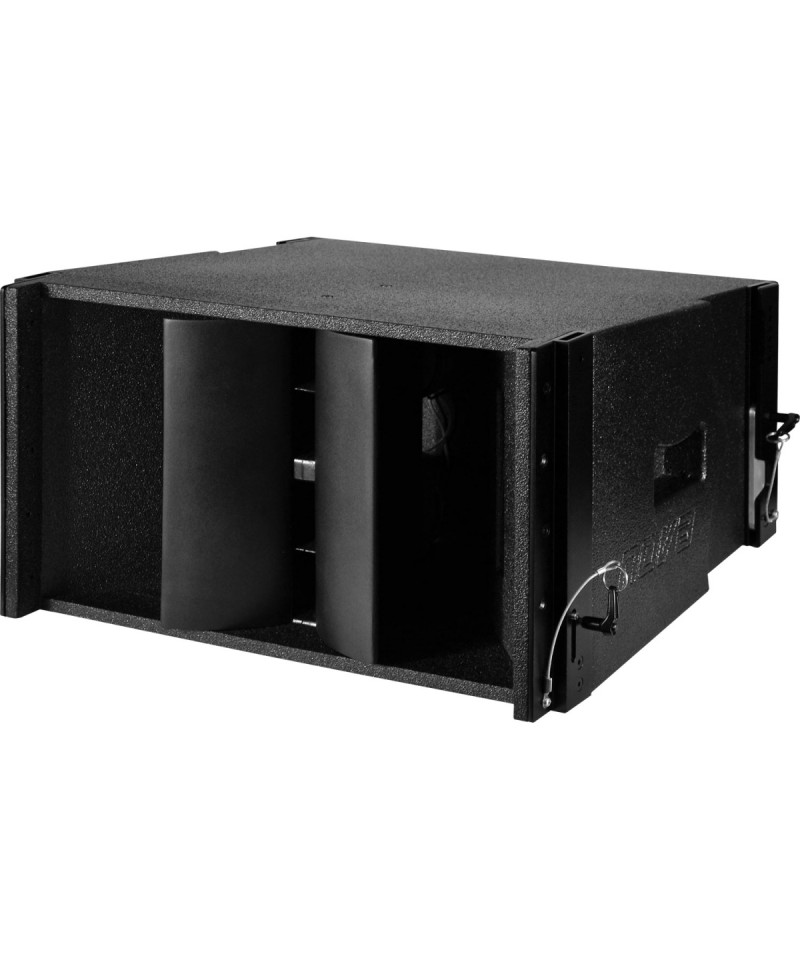

The EL10 is a high-way-performance high-performance array speaker in a trapezoidal frame suitable for both fixed and mobile operating systems. The furniture is equipped with a driver from 1"HF (1.75 "Voice coil), mounted on a waveguard. The nominal cover is 100 ° X 10 ° (H X V). The MF / LF section is equipped with a high-performance speaker 10" (3 "Voice coil), Hornloaded. The 10" transducer is contained behind the horn of the high frequency section (coaxial construction). The EL10 can be stacked in vertical columns up to 12 units per side using the FlyFrame EC1. The angle between each el10 can be adjusted from 0 ° to 7.5 ° in steps of 1, 5th. The EL10 is compatible with all other elite elite models including elite subwoofers. Up to four el10 can be stacked directly on the E18SUB subwoofer without any additional adapter or frame. The frame is built with 15 mm birch and covered with a black polycoat © finish. The furniture is equipped with two handles and a front grille with a foam support of transparent coal. Two Speakon connectors (NL4) are mounted on the back side of the frame for the input signal (input) and the signal connection (link). The power of the EH15 is 400 W (RMS), the impedance is 8 ohms.

Features

• 2 HF Compression Driver (1.75 Voice Coil / PM4 Technology)
• Tuntime physical correction (coaxial construction)
• Hornloaded subwoofer for long-run effect
• Phase-Plug for greater SPL (average frequency range)
• Very high SPL (133 dB SPL Max. / 103 dB 1W / 1M)
• Rated cover: 100 ° x 10 °
• Fullrange passive
• Flyware "Quick Lock" integrated
• Finish NOVA Polycoat ©
• The Speaker EL10 can be driven both through the series of amplifiers NOVA X or the DXP series with a digital Speakon processor. The speaker also works with other professional amplifiers with a maximum output power of 400W (RMS) at 8 ohms.

Technical specifications

• Type of system: 10 ", 2 ways, Horn-loaded, line array
• Frequency range (-10DB): 60 Hz - 20 kHz
• I545i
• Cover pattern: 100 ° x 10th nominal
• HF Horn: Advanced waveguard for less distortion
• Crossover mode: Passive
• Crossover frequency: 1.1 kHz
• Nominal power (Continue ** / Program / Peak) Passive: 400 W / 800 W / 1.600 WSPL Maximum ***: 133db SPL of peak
• System sensitivity (1W / 1M): 103DB SPL
• LF driver: 1 x NOVA 10 / 400el, 3 voice coil woofer
• LF Nominal impedance: 8ohm (active)
• MF Driver: N / A
• MF Nominal impedance: n / a
• Driver HF: 2 x NOVA Tpm4-1750, 1.75 in. Voice Coil Compression Driver (PM4 Technology)
• HF Nominal impedance: 8 Ohms (passive)
• Active tunings: N / A (passive)
• Cabinet: 15mm multilayer fullrange in birch
