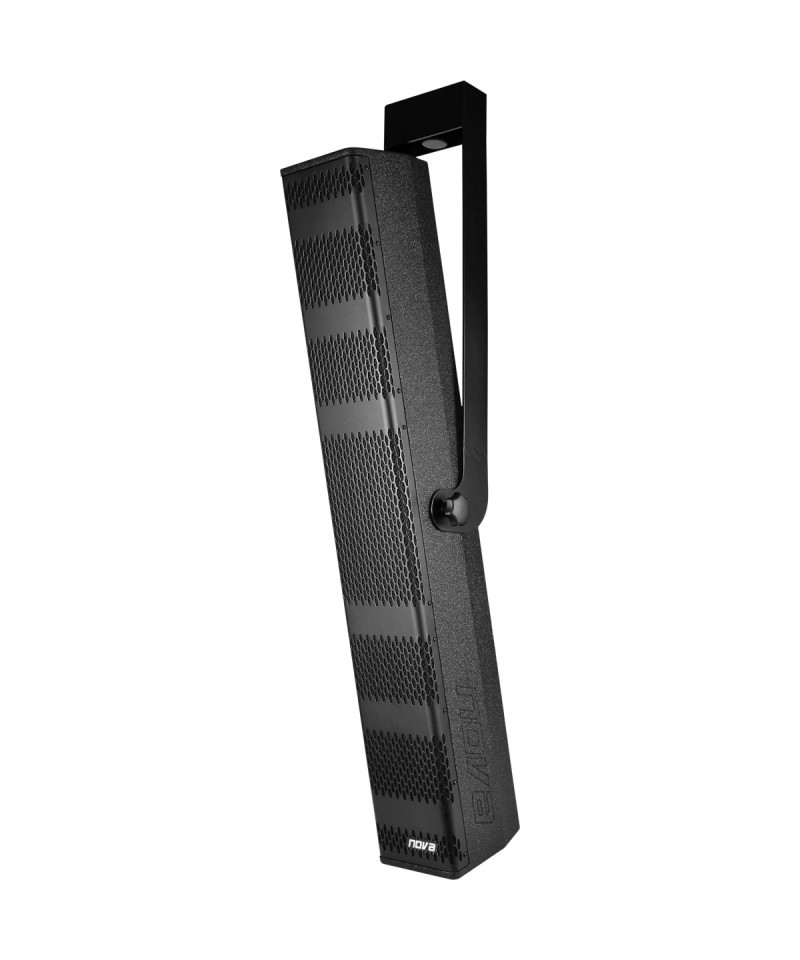

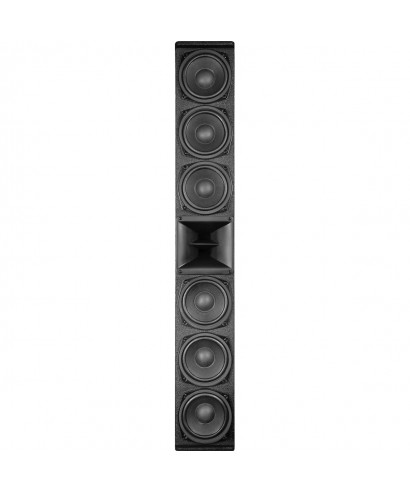

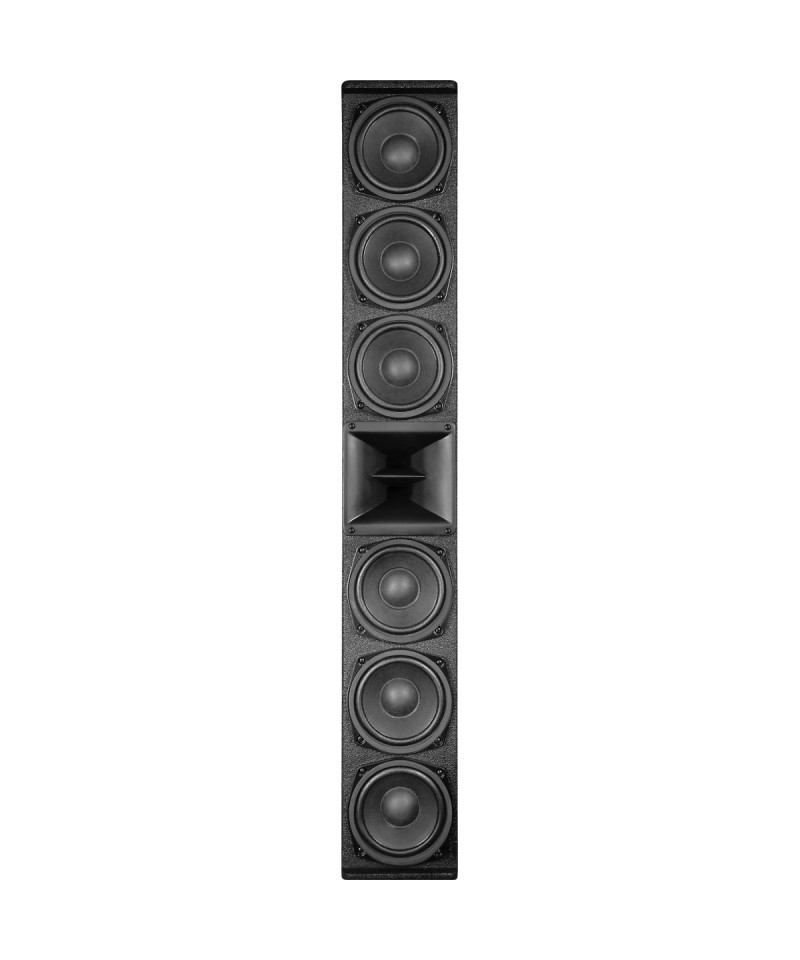

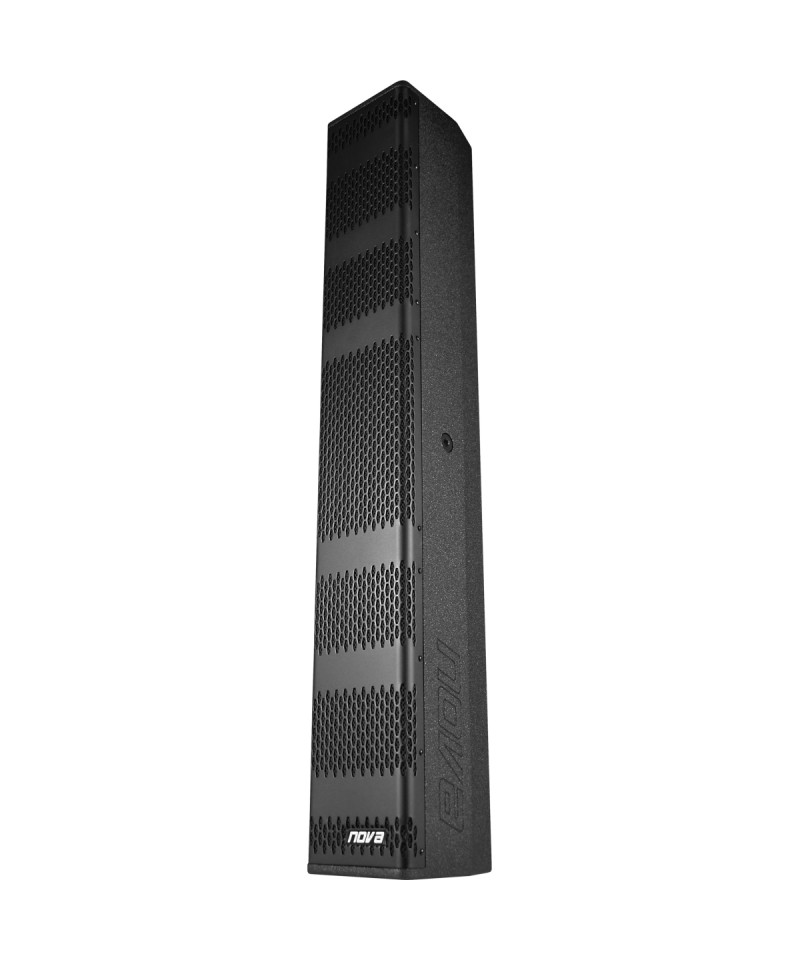

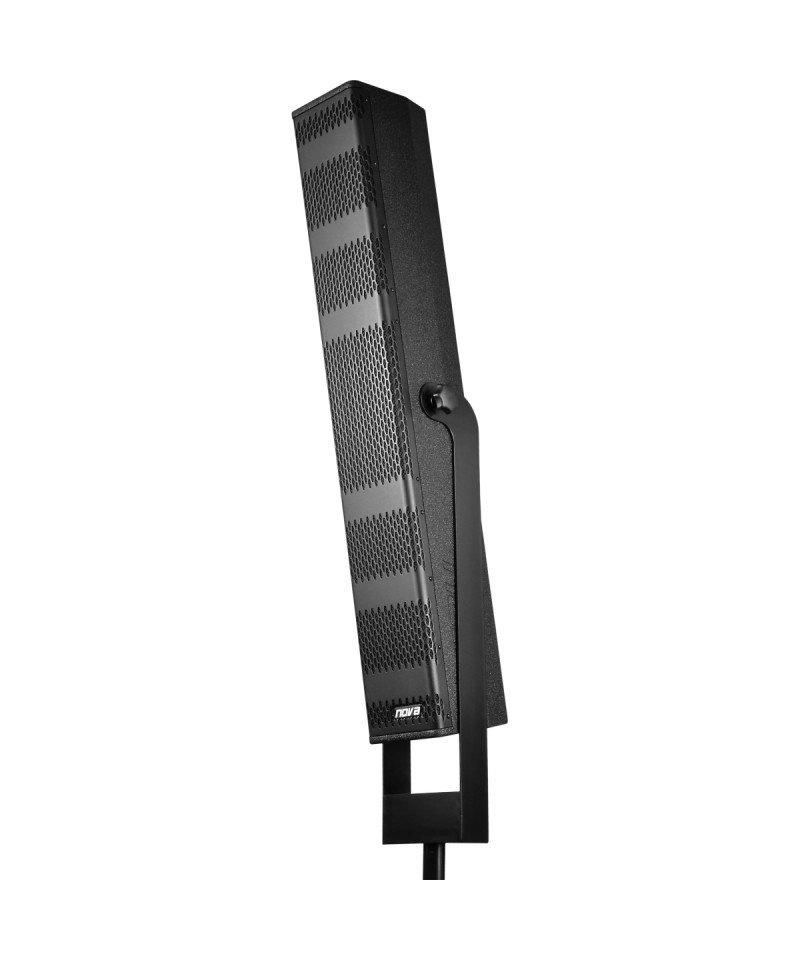

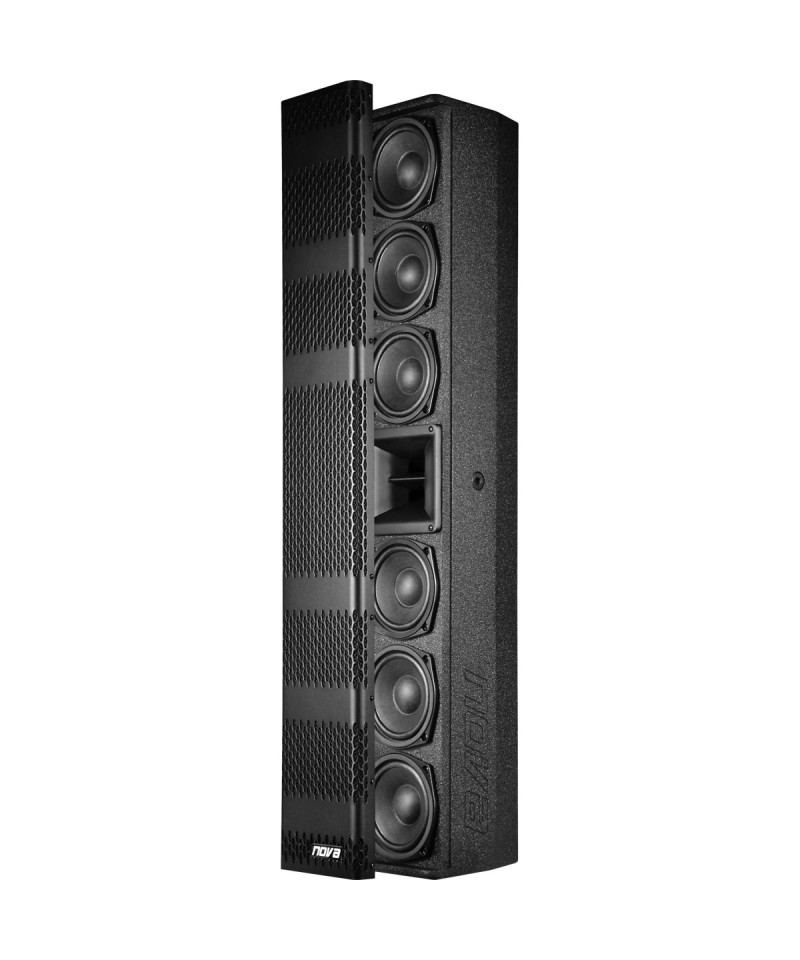

Line Array Column NOVA Euphoria EX-600 6x5 "800 Watt RMS
Pagamento a rate con
The EX600 unit is equipped with six 5 "high-performance 5" speakers and 1 Beyma TPM4 driver-1750 Da1.75 "with diaphragm to PM4 polymer for a particularly high precision and excellent tonal dynamic. Only one EX600 offers an impressive acoustic pressure of 133 dB (max). The case is made in Thick 12mm PLYWOOD, coated with the robust special paint NOVA Polycoat. The continuous load capacity is 800 Watts RMS (1600 watts of program), the impedance is 4 ohms. The EX600 is equipped with an integrated mounting center to facilitate the setup.
Features
- High performance 5 "high-performance Beyma Driver
- Passive speaker
- Finish NOVA Polycoat ©
- Advantages of the MDO: uniform horizontal and vertical dispersion; significant and greater efficiency (greater sound pressure); Effective deletion of the diaphragm resonances; Removal signal increase that doubles the sound sources (twelve virtual signal sources for better coupling)
Technical specifications
- System type: 6 x 6, 2 ways, Compact Line Array
- Frequency range (-10DB): 90Hz-20khz
- A995a
- Cover pattern: 100 ° X25 ° Nominal
- HF Horn: Waveguide Horn with HDO (HIGRANGE DEVICE OPTIMIZER)
- Crossover mode: Passive
- Crossover frequency: 1.5 KHz
- Power: (continuous / peak) 800W / 1600W (passive) Maximum SPL: 133DB SPL
- System sensitivity (1W / 1M): 100dB SPL
- LF driver: 6 x NOVA 5 / 150el-16, 1.5 "Voice coil
- LF Nominal impedance: 4ohm (passive)
- HF driver: 1 x NOVA Tpm4, 1.75 in. Voice Coil Driver (PM4 Diaphragm)
- HF Nominal impedance: 8 ohms (passive)
- Active settings: DSP, filter passes-High (Butherworth / 24DB) RECCOMENDED (> 100Hz)
- Cabinet: FULLANGE, 12 mm, PLYWOOD (MultiLayer)
- Suspension / Mounting: 35 mm, 3x M8, Fastening points for support
- Finish: black NOVA Polycoat ©
