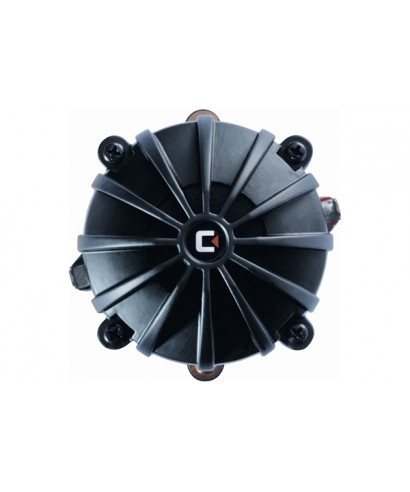

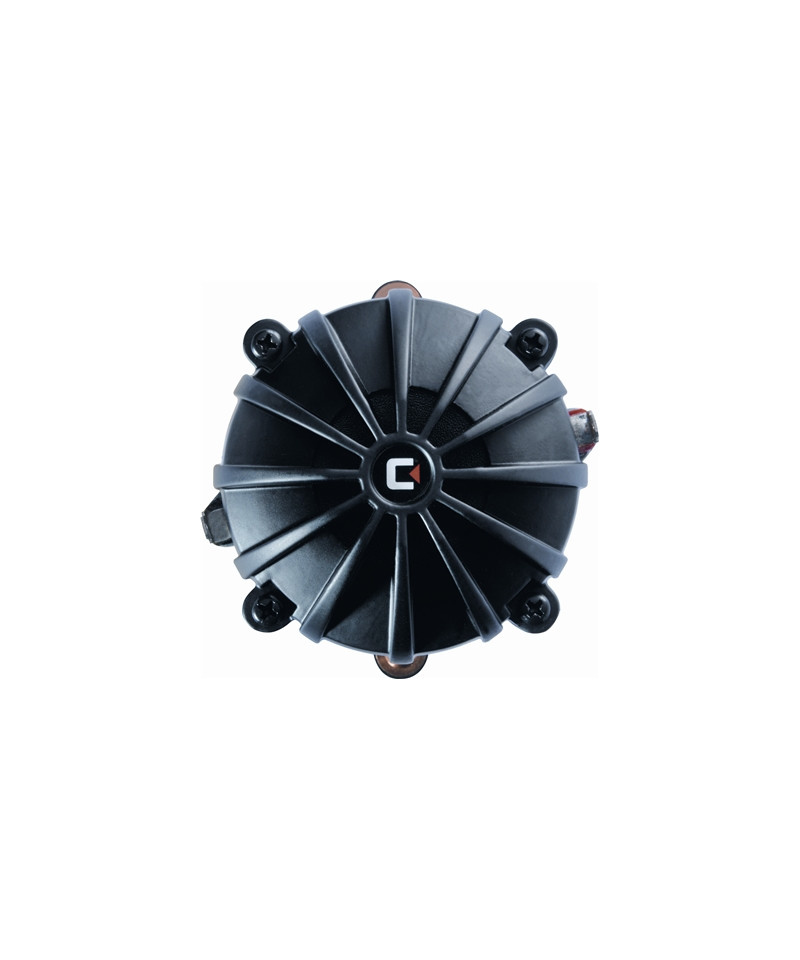

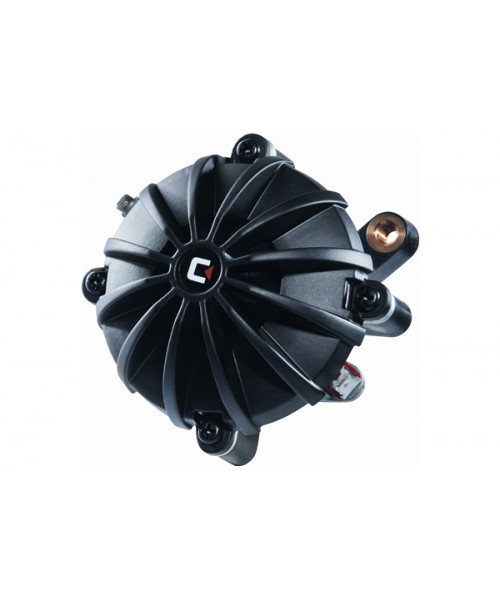

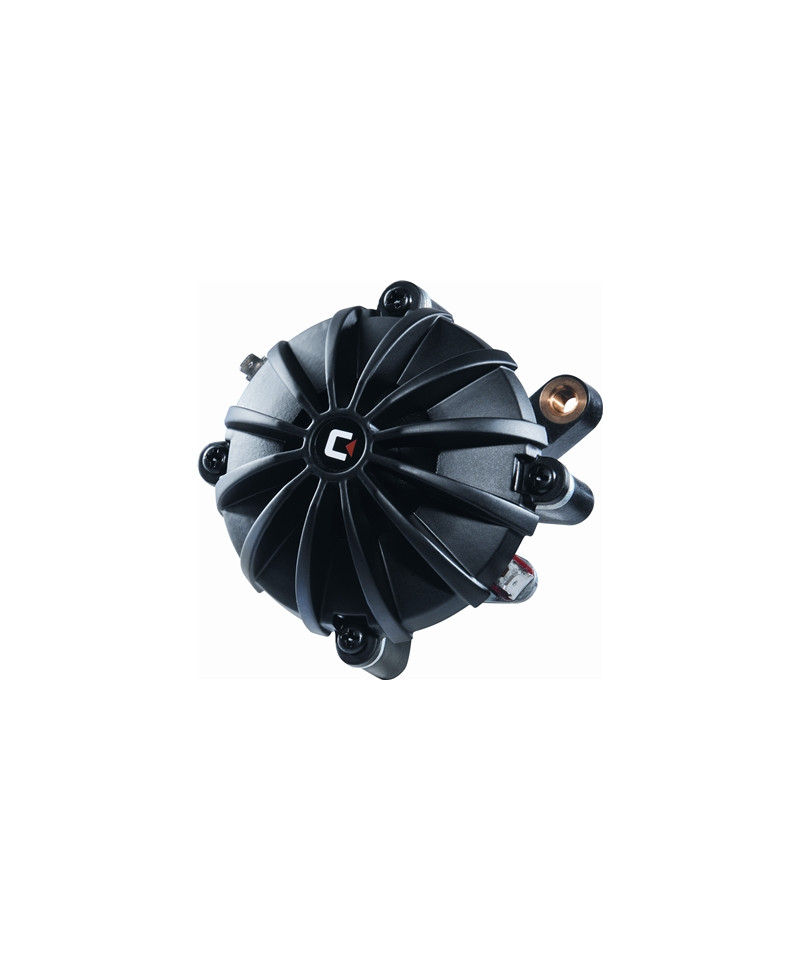

Celestion - Cdx1-1430 50W 8ohm - HF Compression Driver - Neodymium

Features

- 1 Exit Neodymium Compression Driver with 1.4 "Copper Clad Aluminum Voice Coil

- 50WRMS Power Handling (AES Standard) and 108DB Sensitivity

- Copper Sleeve On Pole Reduces Inductive Rise for Improved HF Performance

- Ferrofluid in magnet gap prevets sensitivity loss through thermal compression

- Aluminum Diaphragm Combined With Elastomer Surround Delivers Lower

Distortion Performance

- Finite Element Analysis (FEA) Used to Optimise Both Magnet and Acoustic Design

- Screw Mounting ADAPTOR AVAILABLE

General specifications

Power rating (1): 50WRMS

Continuous Power Rating (2): 100W

Nominal Impedance: 8ohm

Sensitivity (3): 108DB

Frequency Range: 2000-20,000hz

Recommended min. Crossover (12db / oct): 2500Hz

Voice Coil Diameter: 35mm /1.4in

Voice Coil Material: Copper Clad Aluminum

Magnet Type: Neodymium

Diaphragm Material: Aluminum

Surround Material: Elastomer

Mounting Information

Maximum Width: 90mm / 3.5in

Depth: 58mm / 2.3in

Weight: 0.47kg /1.0lb

Fitting: Flanges (2 x M6 Holes on 76mm, 3.0in PCD)

Throat Exit: 25.4mm/1in

Compatible Horns

H1-9040p, H1-7050 "No Bell"

Notes

(1) Tested for Two Hours On Plane Wave Tube Using Continuous Band-Limited Pink Noise as for standard AES. Power Calculated on Minimum Impedance.

(2) Continuous Power Handling is Defined as 3DB Greater Than The Aes Rating.

(3) Measured on Axis AT 1W / 1M, using Typical Horn, in 2 Anechoic Environment
