VISCOUNT, leader brand in the liturgical organs, presents Legend.

The legend organ is able to perfectly recreate the organ with "tonewheels" phonic wheels renewing the feeling "VINTAGE Feeling ". With four series of drawbars and dual keyboard, this organ stands out from everyone else for advanced sound technology at a very affordable price. Every aspect of a "tonewheel" keyboard is carefully reproduced, so much that musicians around the world are saying "E 'The best ever!

JDF Signature Edition

Also available in the JDF version (Joey Defrancesco) Signature Edition that includes the following services:

• Black satin color with Joey signature.
• The sound model of the cloned organs and its effects (vibrato, Chorus, Percussion and Rotary Simulator) have been personally cared for by Joey.
• The three models were cloned starting from three organs with phonic wheels belonging to the personal Joey collection. Such organs were used, both to record many of his albums, and for several live performances.

Keyboard

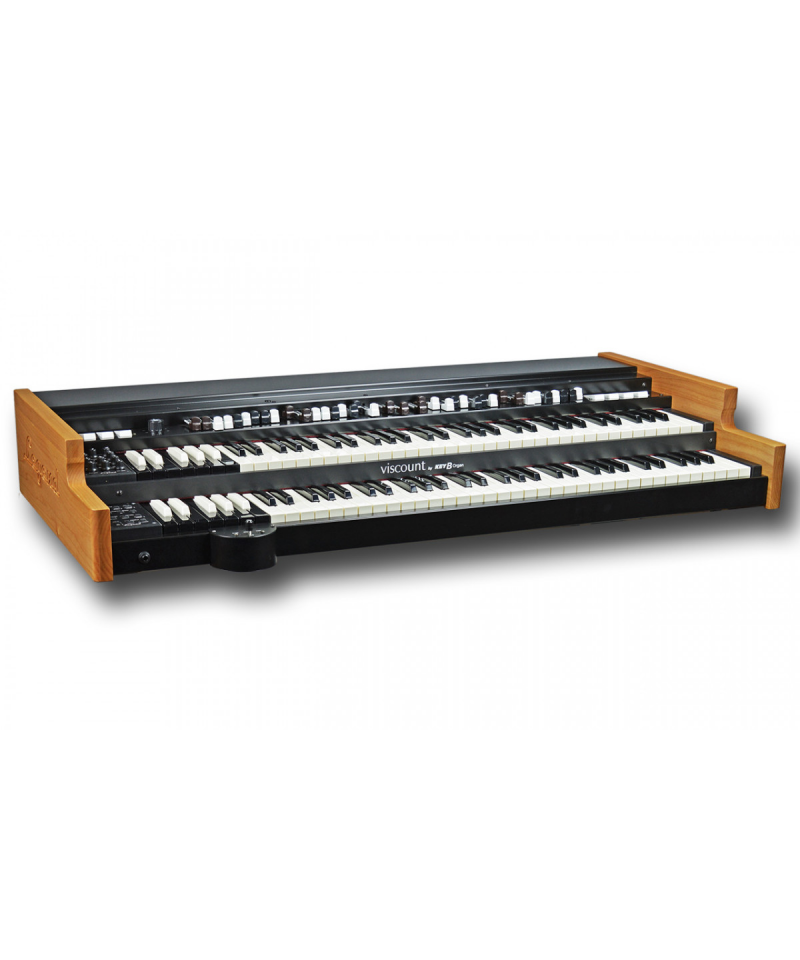

• Keyboard Upper keyboard - 73 Notes (61 + 12 Inverted keys) Waterfall keyboard Lower keyboard - 73 notes (61 + 12 inverted keys) Waterfall keyboard

Sound generator

• Technology TMT (Tonewheel Modeling Technology)
• Crosstalk Crosstalk specific for tonewheel model universe
• Keyclick Revolutionary with project to the state of the art
• Transposing -6 + 5 semitones
• Tuning + /- ¼ tone
• Tonewheel Model '30, '50, '70, alt. 1, Alt. 2, alt. 3
• String bass On / Off, Decay Control
• Harmonic Percussion On / Off, Soft / Normal Volume, Decay, Fast / Slow, Harmonic Percurssion 2nd / 3rd Percussion Level and Percussion Decay Controls

Effects

• Reverbering effects New modeled reverbs Spring and Hall (with Pre / Post Rotary Reverb placement)
• Overdrive Classic rock
• Modulating effects VIBRATO / CHORUS: UPPER ON / OFF, LOWER & PEDAL ON / OFF, SELECT: V-1, V-2, V-3, C-1, C-2, C-3
• Rotary Simulation Type Classic, Rock with Direct Option, Memphis Mode

Interface

• Controls Upper Front Panel: volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Tone Controls; Pedals Sustain; Percussion Decay; Percussion Volume.
• Lower Front Panel: Reverb; Drive; Tonewheel Model; Transpose; Rotary; HOLD (INT / EXT); Pedals Direct; Pedals to Lower.
• Half Moon: Rotary Speed Control.
• Drawbars - Upper 2 sets of 9 drawbars: 16 ' - 5 (1/ 3) ' - 8 ' - 4 ' - 2 (2/3) ' - 2 ' - 1 (3/5) ' - 1 (1/ 3) ' - 1'
• Drawbars - Lower 2 sets of 9 drawbars: 16 ' - 5 (1/ 3) ' - 8 ' - 4 ' - 2 (2/3) ' - 2 ' - 1 (3/5) ' - 1 (1/ 3) ' - 1'
• Drawbars - Upper Preset Upper Drawbar Set A OR Set B + 9 Presets and Upper MIDI Local On / Off [reverse colored Preset keys]
• Drawbars - Lower Preset Lower Drawbar Set A OR Set B + 9 Presets and Lower MIDI Local On / Off [reverse colored Preset keys]
• Drawbars - Pedals 2 Drawbars: 16 '& 8'

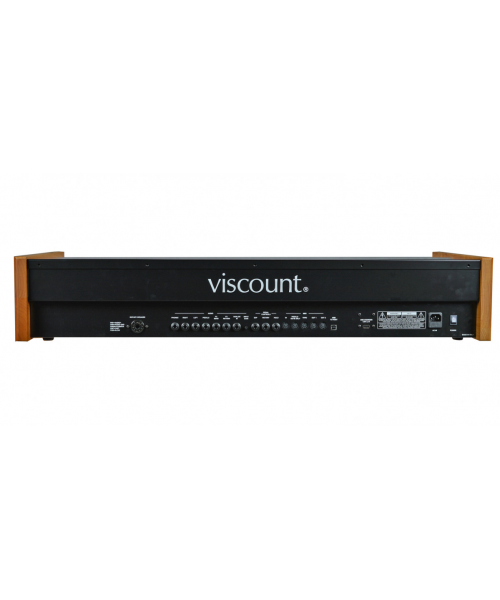

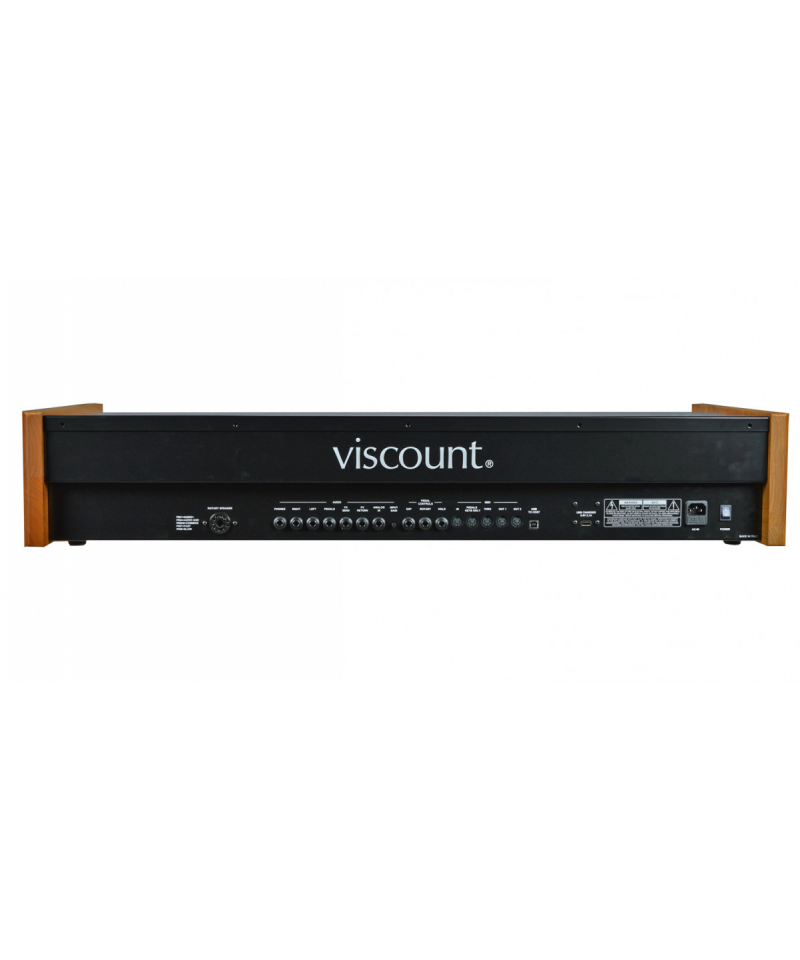

• Connections Output: L & R Line Out 6.35 mm Jacks; Pedals Direct Out 6.35 mm Jack (Without C / V and Rotary Emulation); 11 pin Rotary Speaker (Without Rotary Emulation); 2 Stereo Headphone 6.35 mm Jacks; TRS Digital Expression Pedal 6.35 mm Jack; Rotary Emulation Footswitch 6.35 mm Jack; USB TO HOST; USB Host Type A (Power Charger Only); FX Send.
• Input: Audio Mono With Adjusting Gain Pot; FX Return.
• MIDI in, out, thru Out 1OUT 2 in Thru, pedalboard in

Other

• Colors / Finishing Satin black, american alder

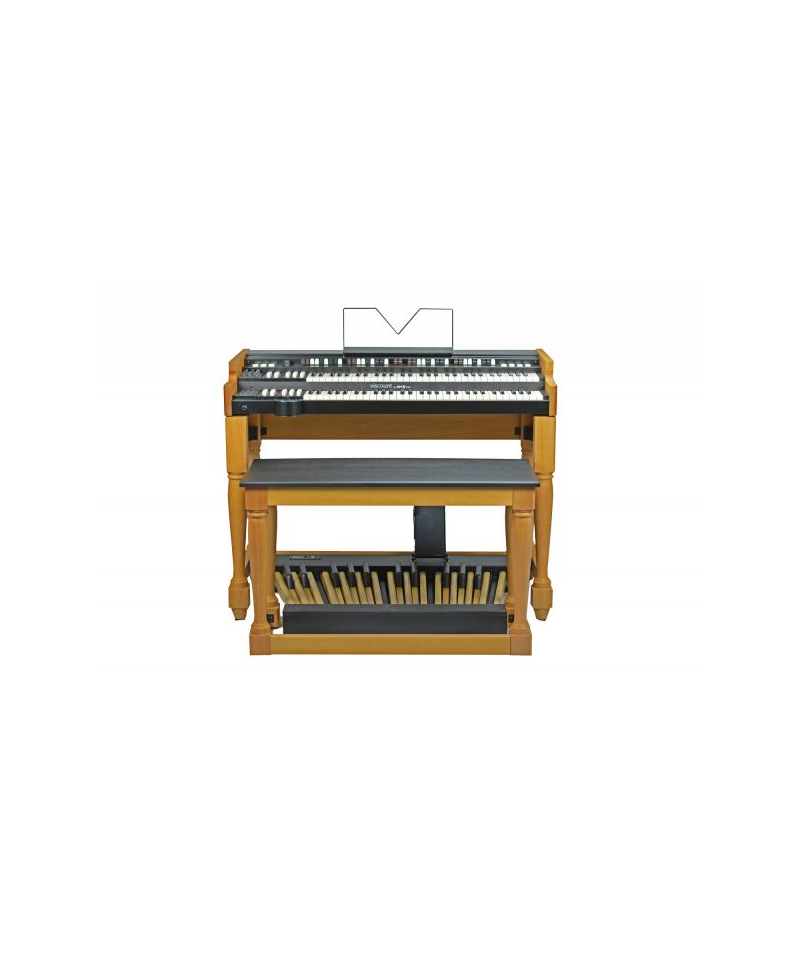

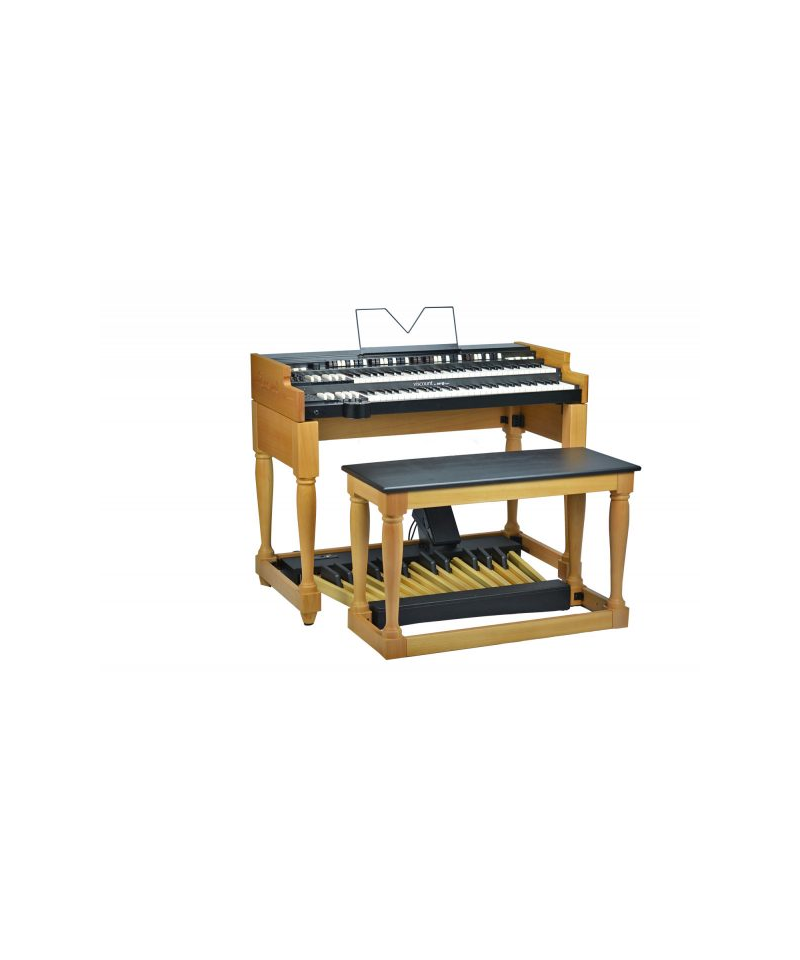

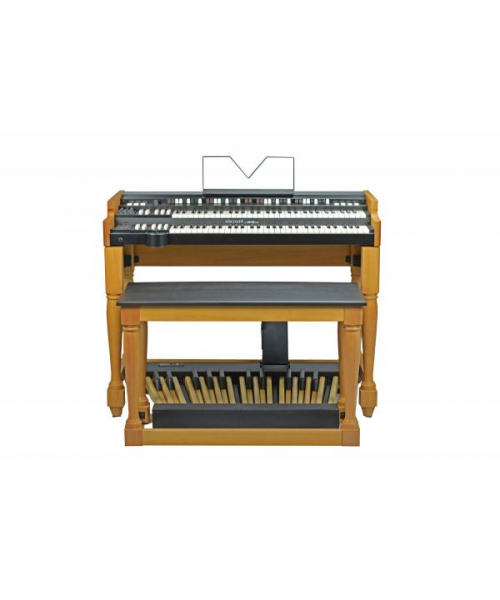

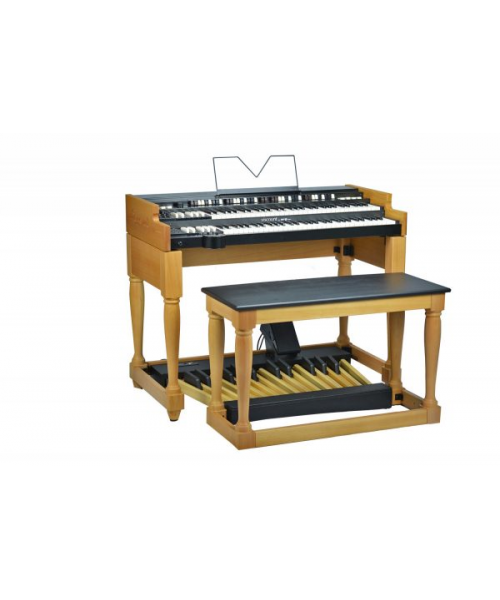

• Optional accessories Pedaliera 25 Notes; 18 Notes pedals; Expression pedal; Bench; Stand; Bag
• Dimensions (LXHXP) 117 x 18 x 59 cm / 46.4 'x 7.4' x 23.2 '
• Weight 21 kg / 46.3 lbs
