Also available in the JDF version (Joey Defrancesco) Signature Edition that includes the following services:

• Black satin color with Joey signature.
• The sound model of the cloned organs and its effects (vibrato, Chorus, Percussion and Rotary Simulator) have been personally cared for by Joey.
• The three models were cloned starting from three organs with phonic wheels belonging to the personal Joey collection. Such organs were used, both to record many of his albums, and for several live performances.

Keyboard

• Keyboard Upper keyboard - 61 Note Waterfall Lower Keyboard - 61 Note Waterfall

Generatore_sonoro

• Technology TMT (Tonewheel Modeling Technology)
• Crosstalk Crosstalk specific for tonewheel model universe
• Keyclick Revolutionary with project to the state of the art
• Transposing -6 + 5 semitones
• Tuning + /- tone
• Tonewheel Model '30, '50, '70, alt. 1, Alt. 2, alt. 3
• String bass On / Off, Decay Control
• Harmonic Percussion On / Off, Soft / Normal Volume, Decay Fast / Slow, Harmonic Percussion 2nd / 3rd Percussion Level and Percussion Decay Controls

Effects

• Reverbering effects New Spring and Hall modeled reverbs
• Overdrive Classic rock
• Modulating effects VIBRATO / CHORUS: UPPER ON / OFF, LOWER & PEDAL ON / OFF, SELECT: V-1, V-2, V-3, C-1, C-2, C-3
• Rotary Simulation Type Classic, Rock with Direct Option, Memphis Mode

Interface

• Controls Keyclick; Tuning; Crosstalk; Rotary; Transpose; Upper Preset (1/ 2); Drawbars Set (A / B / Mute)
• Lower Front Panel: Tone Controls; Pedal Sustain, Percussion Decay; Percussion volume; Pedals to Lower; Lower Presets (1/ 2); Drawbars Set; (A / breakfast / mute); Brake (Slow / Fast).
• Drawbars - Upper 2 sets of 9 drawbars: 16 ' - 5 1/ 3 ' - 8 ' - 4 ' - 2 2/3 ' - 2 ' - 1 3/5 ' - 1 1/ 3 ' - 1'
• Drawbars - Lower 2 sets of 9 drawbars: 16 ' - 5 1/ 3 ' - 8 ' - 4 ' - 2 2/3 ' - 2 ' - 1 3/5 ' - 1 1/ 3 ' - 1'
• Drawbars - Upper Preset Upper Drawbar set A OR Set B + 2 Presets and Upper MIDI Local On / Off
• Drawbars - Lower Preset Lower Drawbar Set A OR Set B + 2 Presets and Lower MIDI Local On / Off
• Drawbars - Pedals 2 Drawbars: 16 '& 8'
• Connections Output: L & R Line Out 6.35 mm Jacks; Pedals Direct Out 6.35 mm Jack (Without C / V and Rotary Emulation); 11 pin Rotary Speaker (Without Rotary Emulation); 2 Stereo Headphone 6.35 mm Jacks; TRS Digital Expression Pedal 6.35 mm Jack; Rotary Emulation Footswitch 6.35 mm Jack; USB TO HOST; USB Host Type A (Power Charger Only); FX Send.

• Input: Audio Mono With Adjusting Gain Pot; FX Return.
• MIDI in, out, thru Out 1OUT 2 in Thru, pedalboard in

Other

• Colors / Finishing Satin black, american alder

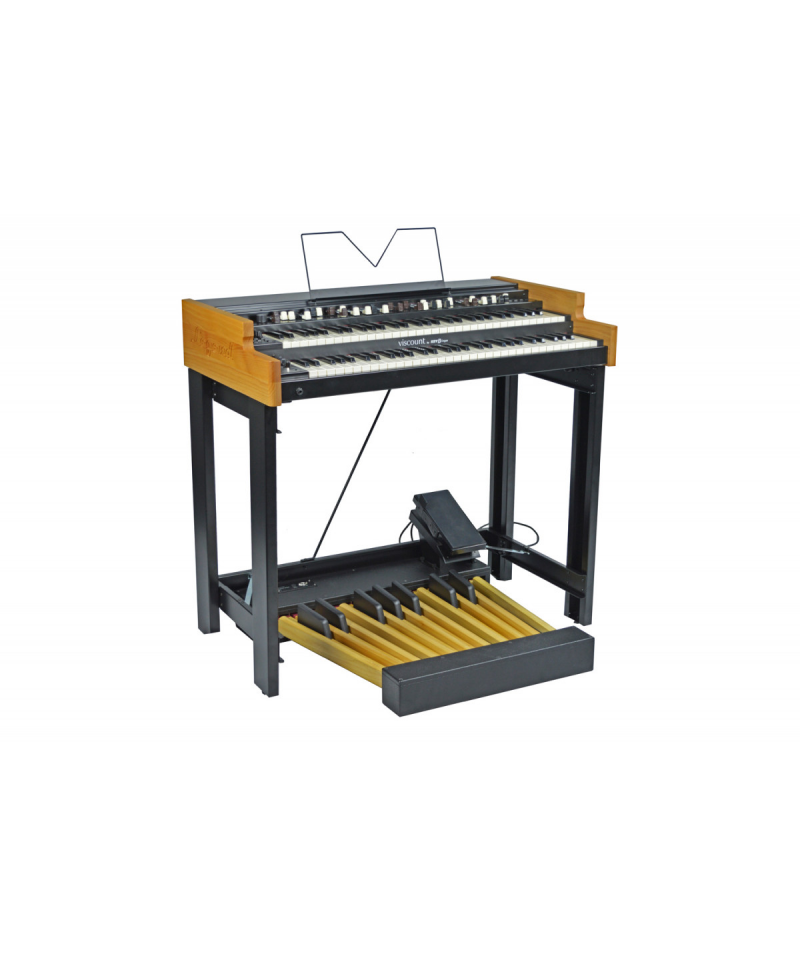

• Optional accessories 18 Notes pedals; Expression pedal; Bench; Stand; Bag
• Dimensions (LXHXP) 101 x 18 x 59 cm / 40.16 'x 7.4' x 23.2 '
• Weight 18 kg / 39.68 lbs
