VISCOUNT, leader brand in the liturgical organs, presentsUnique CLV4 PED. Concave.

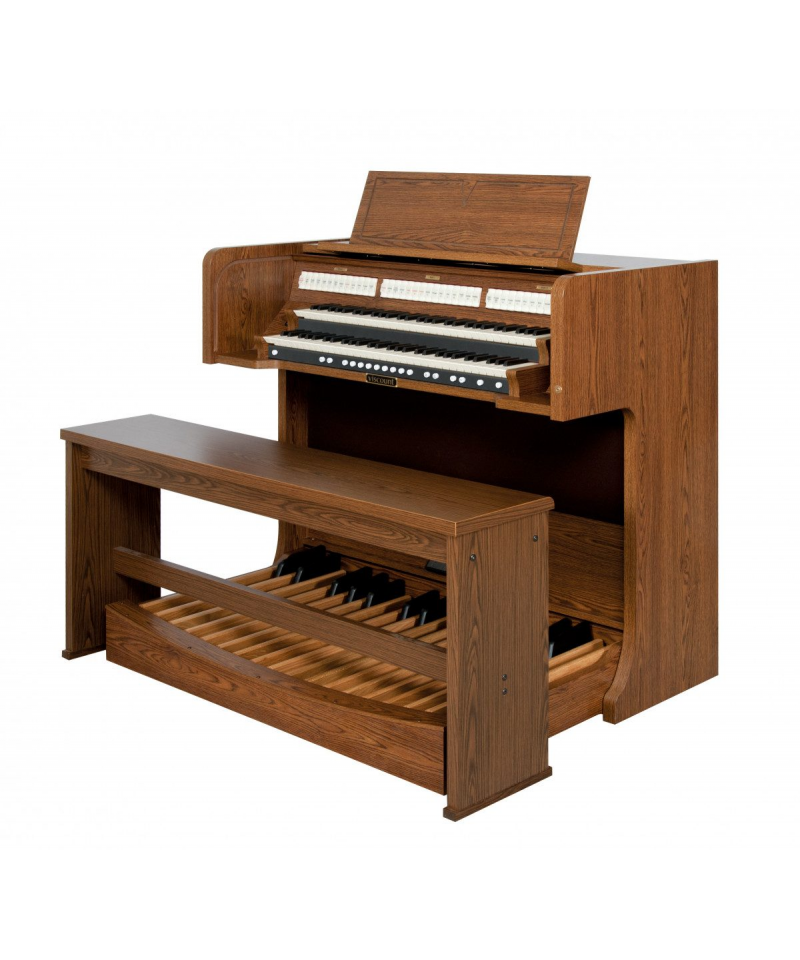

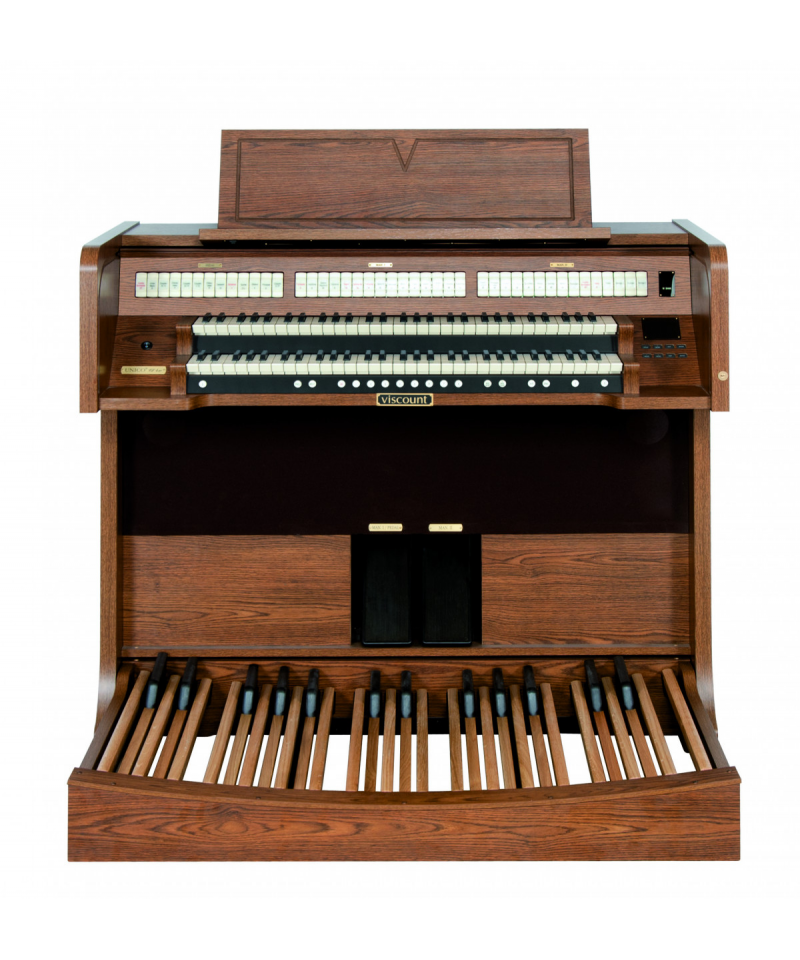

The CL 4 a compact two keyboard organ, pedal board of 30 keys and 35 registers, equipped with a real wood console (or laminate in the case of the CLV 4) with closing dock. Ideal for the student or for the small church, it has a vast internal log library thanks to which the user can easily customize the phelfas of his own instrument.
Developed with the famous patented Physis technology, based on physical modeling of the phenomena that intervene in the sound generation of the arganian to reeds, the CL 4 capable of generating an extremely faithful and modesible sound. Parameter adjustments are easily unable via the graphic display on the front panel of the instrument. The Tracker Action keyboard detects the touch with precision by obtaining the keys operating speed, useful for both the MIDI and orchestra section, and to obtain the Touch tracker effect, that is the correlation between the touch of the organizer and the transient of Attack of each single virtual cane.

Features (Available =)

• Technology Physis Physical Modeling
• Manuals 2 x 61 Notes, Keyboards per organ with "Tracker Touch" effect, sensitive to dynamics for MIDI and orchestral voices
• Pedal note 30 notes, available straight, concave straight, concave radial
• Command of registers Bascule
• Internal amplification 3 channels, 2 x 60 watt + 1 x 100 watts
• Speakers 5
• Expression pedals 1
• Crescendo pedal it

RECORDS E Orchestral sounds

• Pedals 10
• Grand'organo 12
• Acting 13
• Orchestral selector 3
• Total orchestral voices <100
• Total classical voices <460
• Styles 4 Preset + 4 User. Hundreds of styles can be saved and loaded into the internal memory via USB memory key
• Alternative voices yes, they can be selected for each register
• Alternative orchestral voices yes, they can be selected for each dedicated register
• General memories 8
• Memory benches 16
• Total memories 128 Generali, tens of thousands can be saved / uploaded using a USB stick
• Memory sequencer it

ACCESSORIES

• Automatic pedal it
• Enclosed piston it
• Unions I / p - II / p - II / the
• Filling I, II Yes, via piston
• Transposing -6 / + 5 semitones
• General volumes and reverb Yes, by rotary potentiometers
• Orchestra and Midi Sustain Switch on the expression pedal
• Remote control Optional non-dirital radio waves, with flow rate up to 50 mt, with built-in 2x16 characters display

DISPLAY

• Display Graph at 128x64 points with backlight
• Voice parameters Editable Register register
• Divisional volumes Separate for each division
• Tremolo 2, distinct for each manual with depth and programmable speeds
• Reverb 8 selectable types
• Adjustable ensemble effect Adjustable
• Drop effect air pressure Insertible and proportional to the voices lit
• Tracker Keyboard effect It
• Historical temperament Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975, Meantone, Meantone Pure Minor Third, Zarlin, Sauveur I, Sauveur II, boat, Rameau, Pythagorean; For each programable the "toned" note of the temperament
• Inversion of manuals it
• Output routing programming Yes, for each selectable register a suitable arrangement of AROMIERE
• External output volumes Yes, independent control for each output
• 5-band equalizer on external outputs Yes, independent 5-band graphic equalizer for each output
• Equalizer 5 bands on internal amplification It
• MIDI program TX / RX MIDI CH., TX / RX MIDI FILTER, SEND PG, KEYB. MIDI Velocity
• Sequencer Interactive sequencer with overdubbing function
• Demo songs it
• File Management Copy, Load, Save, Rename, Delete etc.
• Organ functionality block Yes, with password

INTERFACE

• MIDI in, out, thru it
• Stereo Headphone Output it
• Stereo auxiliary input it
• Microphone input Yes, with gain control
• External outputs 5, 13 with optional expansion card
• USB TO HOST For easy customization and a refined body intonation can be modified for each individual register and for each individual note, the volume, pitch, spatial layout, and many other parameters, using the "Physis Editor" for PC (optional)
• USB to device it
• Dimensions (LXHXP) cm 126.6 x 114.5 x 111 - 49.84 "x 45.07" x 43.70 "(With 30 Notes Rading Containing Pedalboard)
• Dimensions without a lecteration and pedals (LXAXP) cm 126.6 x 114.5 x 62.3 - 49.84 "x 45.07" x 24.52 "

CONSOLE

• Features of the furniture Elegant dark oak color building. Elegant bright lectern. Shutter and bench with coordinated finishes
• Colors / Finishing Light oak ennobled, noble dark oak
• Weight kG 121 / LBS 266.75
