SOUNDSATIONPresents, Omega-850 Pro

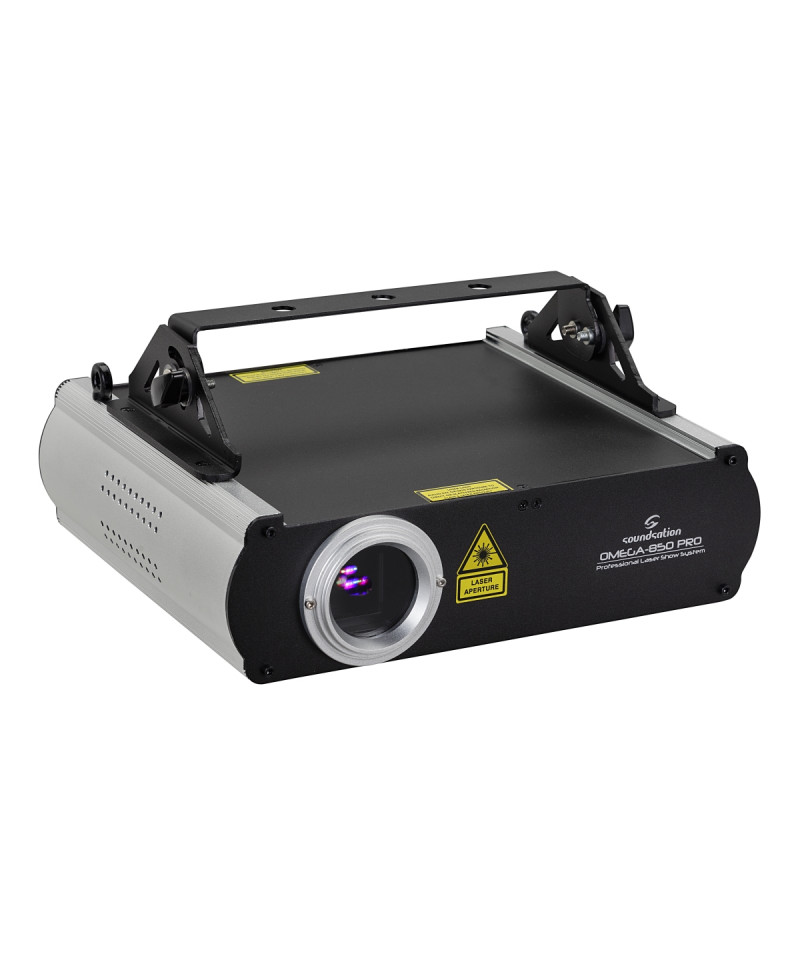

Omega-850 PRO A class 4 professional RGB laser projector equipped with the latest laser scanning technology. It has high quality RGB LED LED and "Fish Eye" LED emitters which allows a deflection of laser beams of 180. The control panel equipped with a liquid crystal display that greatly simplifies the setting and use operations, making this although professional laser extremely accessible to all. The connection Ilda to PC and to other laser units Ilda Standard, as well as the SD slot-Card opens an infinite world of creative possibilities of use, making the Omega-850 RGB The right choice for all those professionals, Light Designers and Service that need a reliable and versatile tool for your graphic laser effects.

• RGB Laser 850MW RGB (200mW R, 150mW G, 500mW B) To create effects with full color scoop
• 20K scanning speed
• Integrated "fish eye" lens for an angle of irradiation approx. 180
• Full-size image: 0.23x
• Three-dimensional calibration of laser emitters for maximum alignment accuracy
• 2 groups of automatic programs and 2 groups of music programs
• SD reader-Card for quick access to Libraries Ilda External
• ILDA standard connection for maximum compatibility with other hardware / software equipment
• Operating mode: Execution Ilda da Card SD, Internal programs, Musical programs, DMX and Master / Slave
• DMX: 24 channels
• 128x64 LCD Display Points for quick access to all parameters and memory content
• Wheel with puksante for quick navigation of men
• Safety connector for instant blackout
• Key switch and safety eyelet for hooking safety cables
• Red laser: 638nm / 200mw
• Green laser: DPSS 532nm / 150mW
• Laser class: Class 4
• Zoom angle: 1-36
• Scan speed: 20K

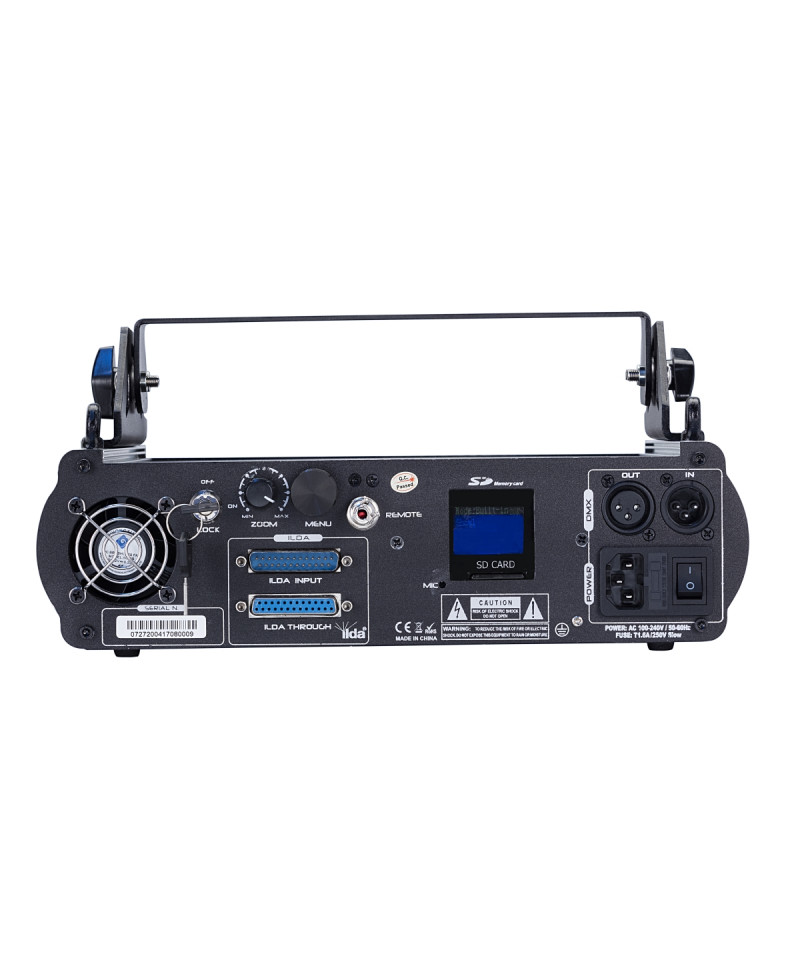

• I / O connectors: (DMX) 3-Pin XLR / (ILDA) DB25
• SD reader: SD slot-Card for storing and recall programmx: 24CH
• External maximum temperature: 104F (40C)
• Cooling system: Green Tec Cooling
• Power supply type: Switching (interior)
• Power: 100-240V 50 / 60Hz
• Consumption: 30w
• Fuse: T1.6A 250V
• Unit size (LXAXP): 316x89x154 mm
• Unit net weight: 4.26 kg
• Packaging dimensions (LXAXP): 406x194x326 mm
