Synthesizer 61 keys

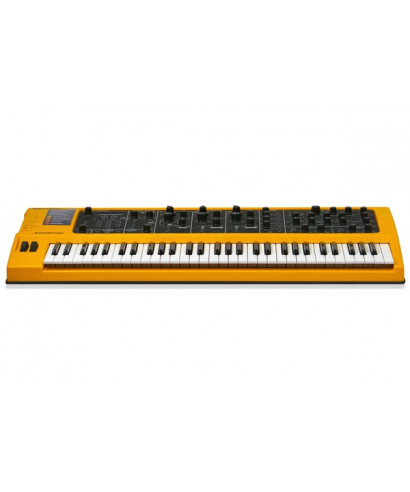

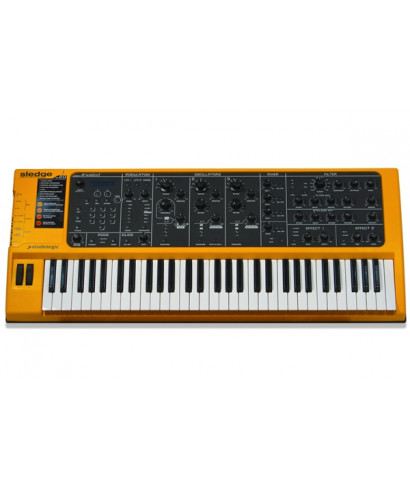

STUDIOLOGIC presents SLEDGE 2.0

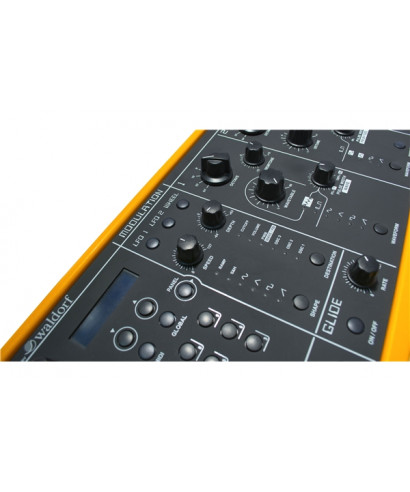

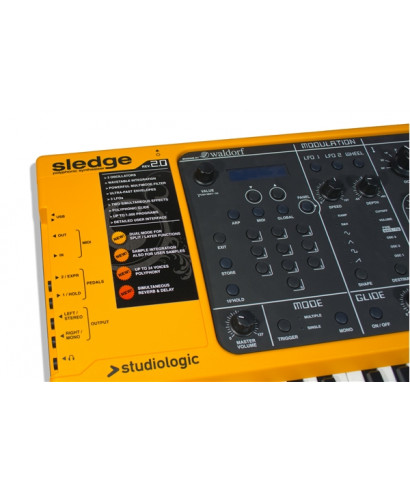

A quick look at SLEDGs shows the generous set of commands available to interact directly with the audio engine. When touching the knobs and the front panel switches immediately conscious of the meticulous attention to detail that that engineers have perfected, for many decades, building one of the best electronic keyboards. You will live the logic set-UP of synthesizer modules, which reflect the signal flow of a classic analog synthesizer. But what really distinguishes any synthesizer its sound. Fortunately at Waldorf Music they happily shared their experience and knowledge-How on this crucial part of the sledge synthesizer. So a last generation Waldorf DSP heart in Sledge was used. The result sufficient power to seriously put the foundations of your study at risk. E A lot of details, to create the most rich analog pads you might want. In addition to the classic waveforms of the analogue synthesizer, you will find a complete series of wavetables derived directly from the mother of all digital synthesizers, the PPG Wave. The sum of the three oscillators, in addition to a noise generator, are inserted into the powerful multimode sledge filter with 24 / 12dB selectable Slope. The easily recognizable Waldorf filter algorithms allow a wide range of sounds. Two LFO plus an extra wheel-LFO are on board to offer enormous, but easy to understand, modulation possibility. Two effect units offer sophisticated effects like Chorus, Flanger and Phaser, as well as a rich reverb or delay. The best thing: if you have familiar with the operation of a classic analogue synthesizer, you won't have to spend precious time reading the manual. There are no double or multiple functions on knobs or buttons. All synthesizer parameters are clearly arranged and ergonomically in front of your eyes, accessible under the fingertips.

• Sledge 2.0 Studiologic Synthesizer
• Keyboard: 61 keys 5 high quality Fatar TP 9 Ottave with After Touch
• Controls: 32 Potentiometers, 3 Chicken Head rotary switches (7 positions), 1 Rotary Encoder with Push Function, Pitch & Modulation Wheel
• Display: LCD 2 x 16 backlit digits
• Sounds: Until 1, 000 Sounds and fast selection of sounds via key pad pad
• Sound generation: 2 FAST LFOS Each voice, adjustable in speed and depth
• 1x Extra modulation path for Mod Wheel, with speed and depth of adjustable modulation
• Waveforms: Sawtooth, Rectangular, Triangle, Sine, Sample & Hold, Ramp
• Destination: OSC 1, OSC2, OCS3, PWM / WAVE / FM, Volume, Filter Cutoff
• Polyphony: 24 items
• Ways: Single, Dual, Split or Selectable Layer
• Mono with single or multiple trigger
• 3x oscillators for voice
• Waveforms: Sawtooth, Square, Triangle, Sine, Pulse (with Pulse Width Modulation PWM modulation)
• Oscillator 1 With 66 original ppg wavetables: Frequency modulation (Frequency Modulation)
• Waveforms: Sine, Triangle, Oscillator HardSync (OSC 2 to Osc 3), Import Outdoor Samples (60MB Internal Flash), noise generator (Noise Generator) Selectable - White / Pink, Mixer with volume and switch on / off of oscillators and noise
• 1x multi mode filter for Voice: 24 / 12DB, Lowpass, Highpass, BandPass, Resonance until the oscillation, Keytrack and adjustable drive
• 2x "Fast Envelopes" envelope generators each item (filter / amplifier)
• Arpeggiator: "Latch" mode, synchronizable to the midi clock,
• Directions: Up, down, alternate, range up to 10 octaves
• Effects: 2x simultaneous effects: effect 1: Chorus / Phaser / Flanger, Effect 2: Reverb / Delay, Reberb + Delay

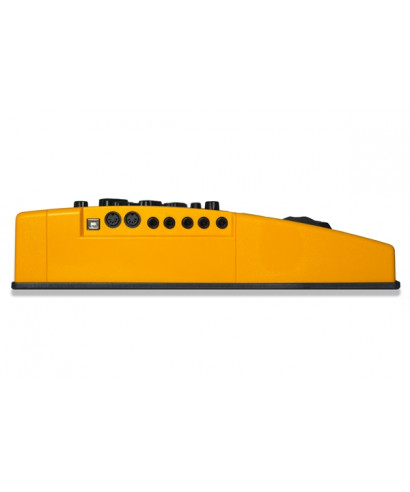

• Outputs: Stereo L / R Line, Headphone Output
• Pedal input: EXPRESSION PEDAL, HOLD pedal
• MIDI: MIDI IN / OUT
• USB port
• Power supply: Internal
• Size: 970 x 405 x 110mm
• Weight: 8,3kg
