SOUNDSATION Bar 4 Mobile Heads Beam Axis IV MKII 4x32W
Disponibile solo online
Free Shipping
J683J
New
AVAILABLE
Order it before 12:30 on Monday and receive it between on 12/11/25 and 12/12/25 with Corriere Espresso. ESTIMATED DATE.
Pagamento a rate con
4 movable heads

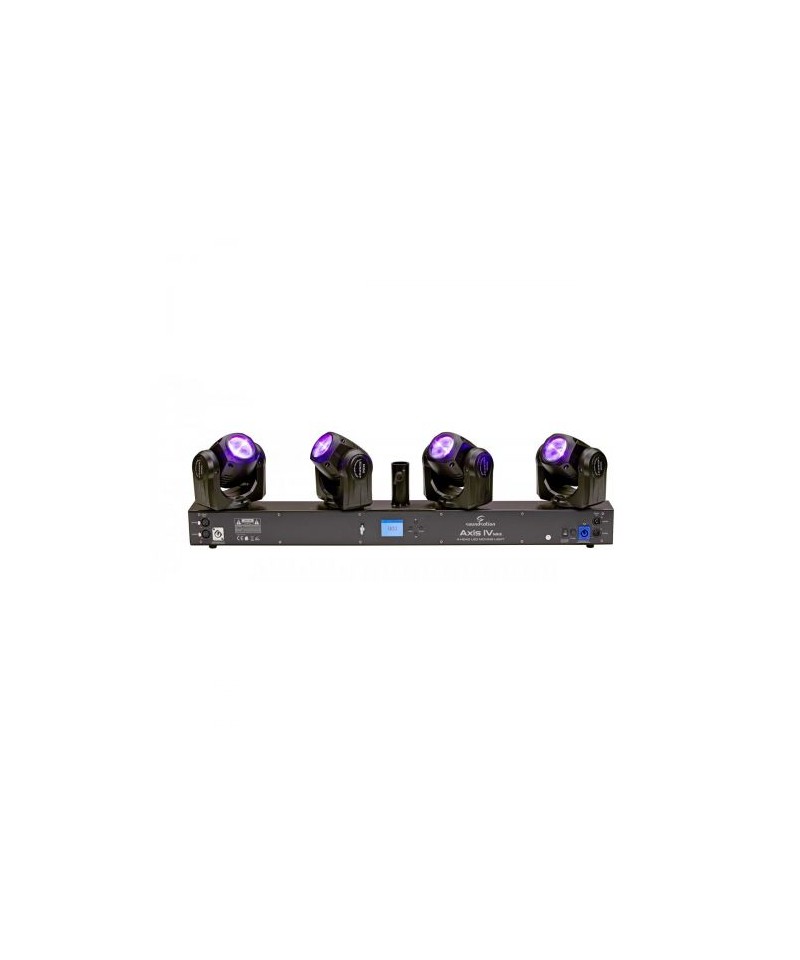

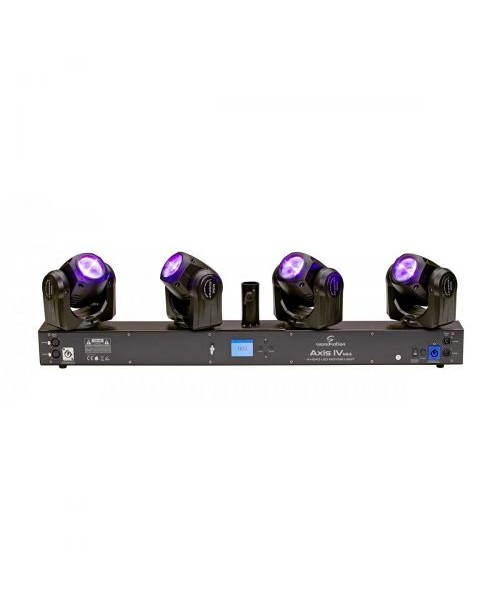

SOUNDSATION presents Bar 4 Mobile Heads Beam Axis IV MKII
When a tenderness of giving a color tone to their musical evenings or DJs pass from simplicity, transportability and the benefits of modern LED technology, SOUNDSATION Axis IV MKII becomes the reference for all musicians, DJs and show operators. Axis IV MKII was designed to be a system-in-One and consists of a bar with 4 mobile heads capable of rotating up to 540 horizontally and 270 vertically, with extremely rapid and precise movements. It can be mounted on a trellis and on lighting supports with a d35mm pole, thanks to the supplied. Each head mounts a 32 W RGBW 4in1 LED with 6 beam corner which guarantees bright colors, high performance in terms of brightness and durability. In addition, each head can be controlled independently in the pan / tilt movements and in the colors. The control modes are DMX512, Sound, DMX Master / Slave and Auto.
SOUNDSATION presents Bar 4 Mobile Heads Beam Axis IV MKII
When a tenderness of giving a color tone to their musical evenings or DJs pass from simplicity, transportability and the benefits of modern LED technology, SOUNDSATION Axis IV MKII becomes the reference for all musicians, DJs and show operators. Axis IV MKII was designed to be a system-in-One and consists of a bar with 4 mobile heads capable of rotating up to 540 horizontally and 270 vertically, with extremely rapid and precise movements. It can be mounted on a trellis and on lighting supports with a d35mm pole, thanks to the supplied. Each head mounts a 32 W RGBW 4in1 LED with 6 beam corner which guarantees bright colors, high performance in terms of brightness and durability. In addition, each head can be controlled independently in the pan / tilt movements and in the colors. The control modes are DMX512, Sound, DMX Master / Slave and Auto.
- Bar with 4 LED mobile heads (4 LEDs from 32W RGBW 4in1)
- Easy to manage with LCD graphic display
- Beam corner 6
- Bright @ 1m between 24000 and 68000 lux
- Automatic operation
- Modalit Sound via integrated microphone
- Master / slave synchronization
- DMX protocol-512 with 5 mode (6CH, 10CH, 19CH, 32CH and 56CH)
- 2 brackets type omega with quick locking
- Stand support with 36mm hole (stand not included)
- Light source: 4 LEDs 32W RGBW 4in1
- Bright @ 1M (single head): R 24000 Lux; G 50000 Lux; B 80000 lux; W 68000 lux
- Bright @ 2m (single head): R 11500 Lux; G 18000 Lux; B 27000 Lux; 26000 lux
- Color: RGBW with color mixing
- Beam corner: 6
- Control mode: DMX512, Master / Slave, Sound, Car
- DMX mode: 6ch / 10ch / 19ch / 32ch / 56ch
- Power connectors: PowerCon input / output
- DMX connectors: IN / OUT XLR 5-PIN + IN / OUT XLR 3-Pin
- Display: 2.4 TFT LCD
- Power: 110V ~ 240V - 50-60hz
- Maximum absorption: 200w
- Fuse: F3AL / 250 V (5x20mm)
- Bar sizes (LXPXA): 1003.6 x 115 x 271.4 mm
- Bar weight: 11.5 kg
- Accessories supplied: 1x Power Cable, 2x Rapid Locking Omega Type Brackets, 36mm Pole Adapter (stand not included)
