SOUNDSATION presents Thesis 1912 ZOOM

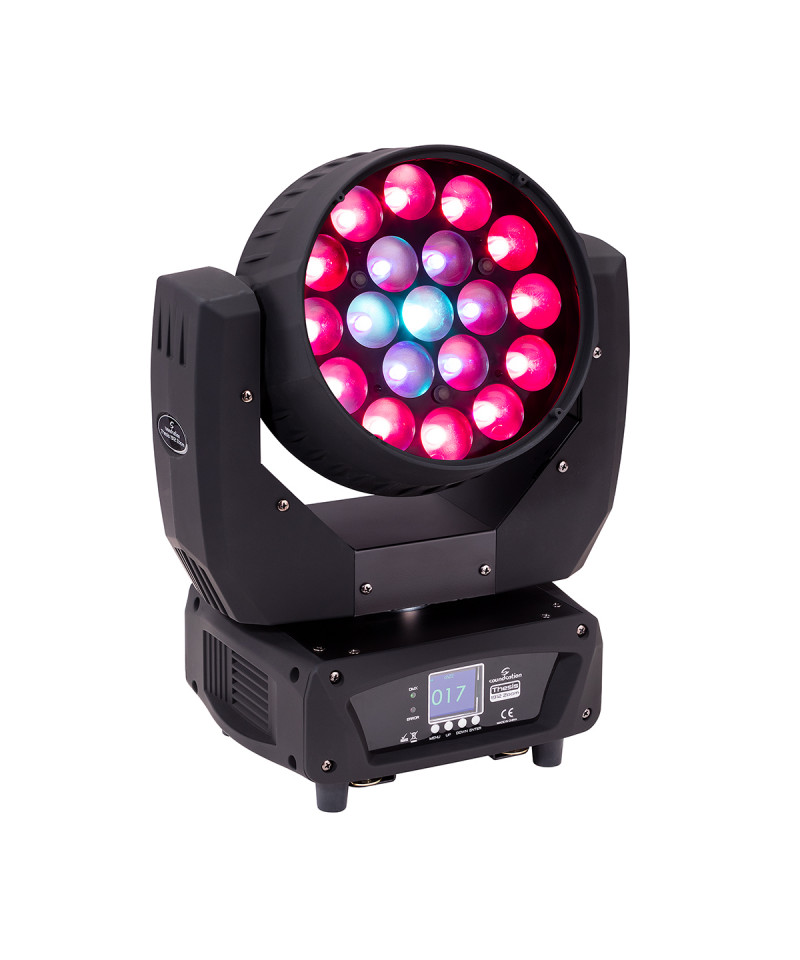

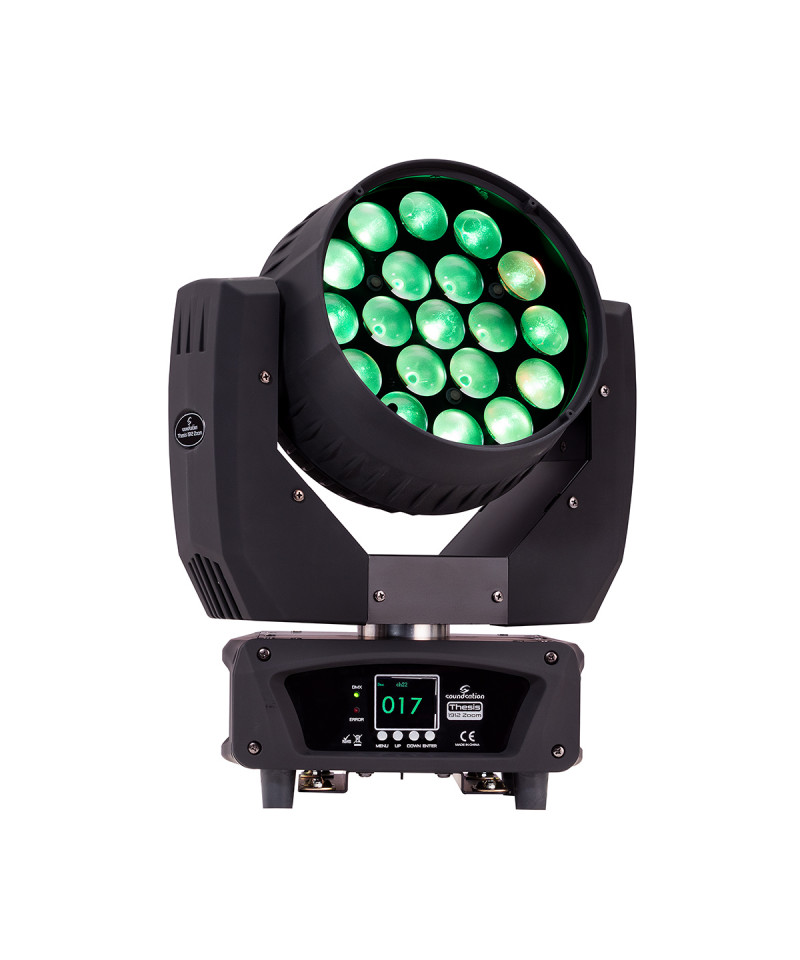

The Thesis 1912 LED mobile head ZOOM It is part of a wider range of led intelligent headlights with branded DMX SOUNDSATION. This mobile head is compact, light and very easy to use. It has been designed to satisfy all the main Beam / Wash applications, thanks to accurate dimmer control, the zoom function (15 ° - 60 °) and the 3 independent RGBW concentric control zones. Not only that, but thanks to the precision of 16 bits of Pan / Tilt movements and dimmer, it creates strobe effects, dimmer and extremely precise positioning. Finally, the color LCD control panel has been developed to help the user set up the unit, making this device easy to use, reliable in performance and versatile in applications. A must for all lighting professionals.

• 19 12W RGBW CREE LEDs with 42400 Lux Max (maximum lighting @ 1m - Beam at 15 °)
• Very high life LED (about 100000 hours), low energy consumption and respect for the environment
• Uniform RGBW Mixing System, with 3 concentric independent DMX zones (12 LEDs on the outer ring, 6 LEDs on the central one, 1 in the center)
• Linear dimmer 0-100% LINEAR with 65536 intensity control levels (16 control-Bit with elimination of Jitter effect)
• Zoom from 15 ° to 60 ° Extremely soft and accurate
• Lenses without attenuation
• 3 types of control: DMX, Master / Slave Auto, Sound
• DMX control mode to 22 and 14 channels
• Strobe effects up to 1~ 25T / s (with electronic control of the Random effect)
• Pan Movement: 540 ° (precision at 16--bit)
• Tilt movement: 265 ° (precision at 16--bit)
• TFT LCD display with simple and intuitive user interface

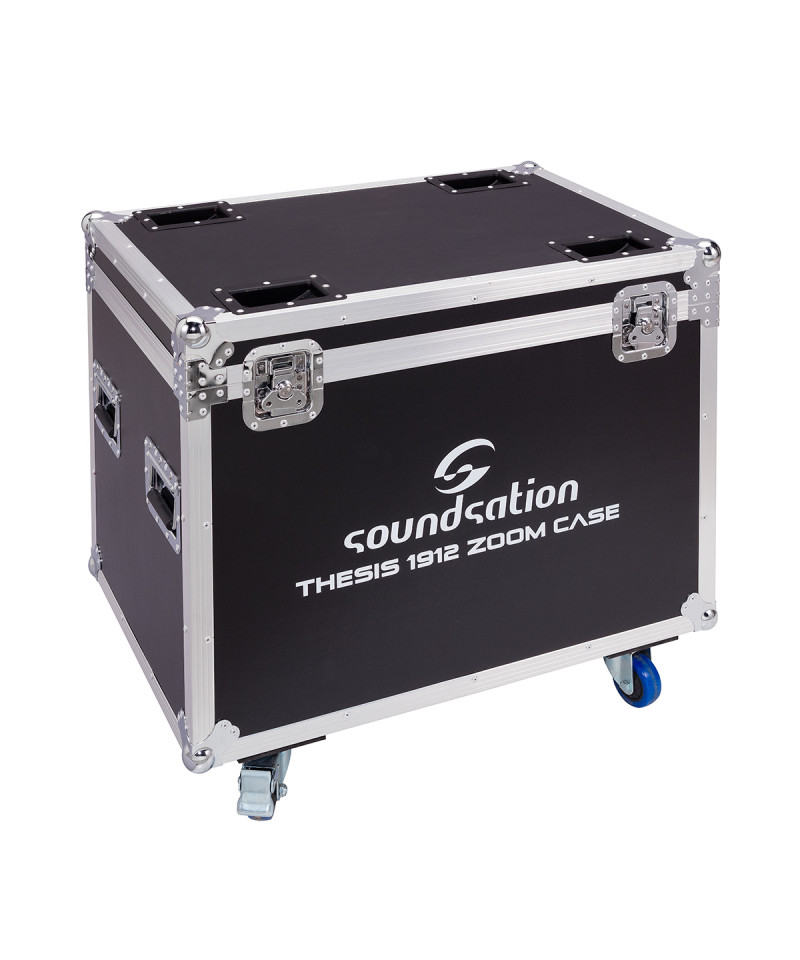

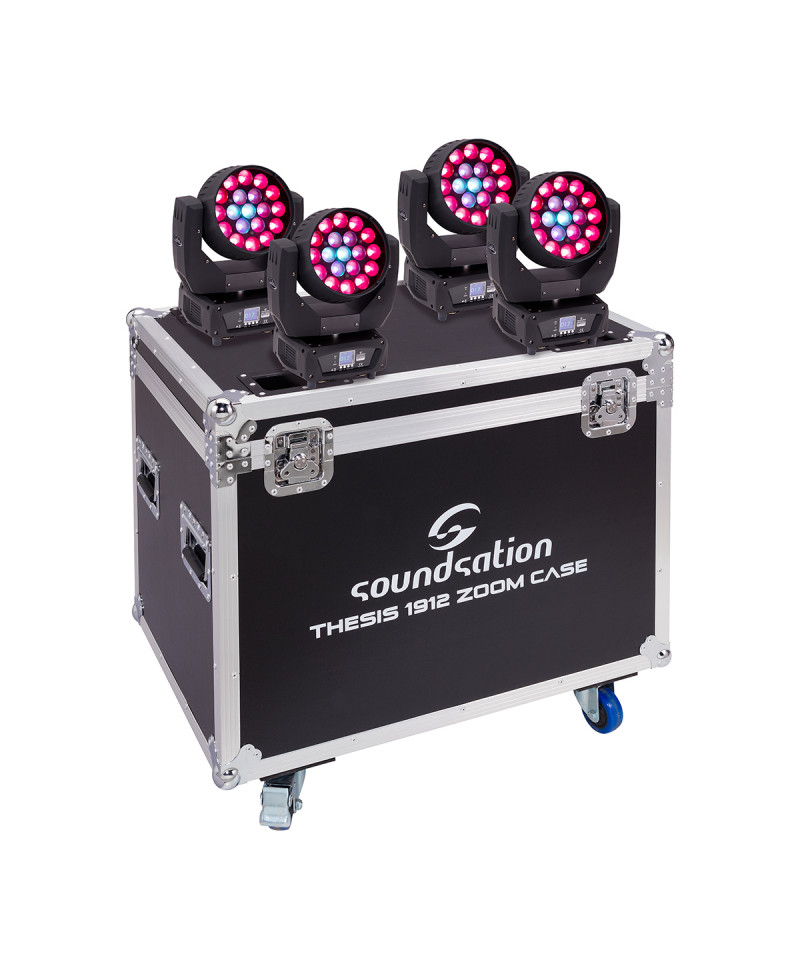

• Professional Flight Case with Wheels (two wheels with brake)
• Light source: 19 LED CREE 12W RGBW 4in1 high brightness
• Luminance: Max 42400 lux @ 1m (Full Bright, 15th Beam Angle)
• Beam corner: from 15 ° to 60 ° with DMX control
• Pan Movement: 540 ° (precision at 16--bit)
• Tilt movement: 256 ° (16 precision--bit)
• Operating modes: DMX, Master / Slave, Auto Run, Sound
• DMX control mode at 22 and 14 Canalidimmer: Linear 0-100% with 65536 levels (16--bit)
• Strob0: Effects up to 1~ / 25t's
• Noise: 48.1db @ 7m; 48.2db @ 6m; 49.2 db @ 1m
• Power: AC 100-240V / 50 ~ 60Hz
• Consumption: 300w max
• Fuse: F10A L250V (5x20 mm)
• Lighthouse size (LXHXD): 300 x 410 x 200 mm
• Flight case size: 810 x 560 x 720 mm
• Single lighthouse weight: 7.4 kg
• Gross weight (Flight Case + headlights and accessories): 39 kg
